Product Description

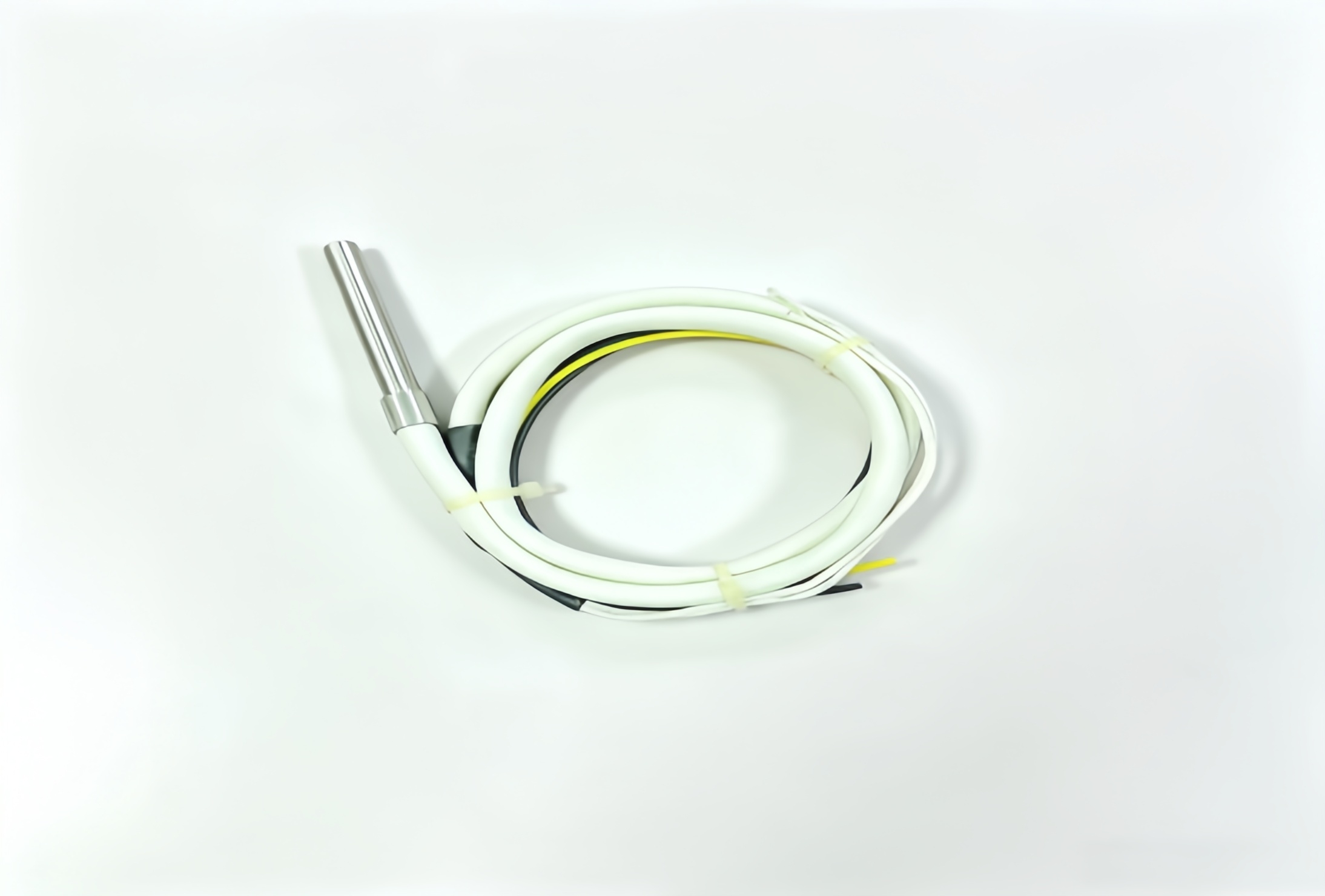

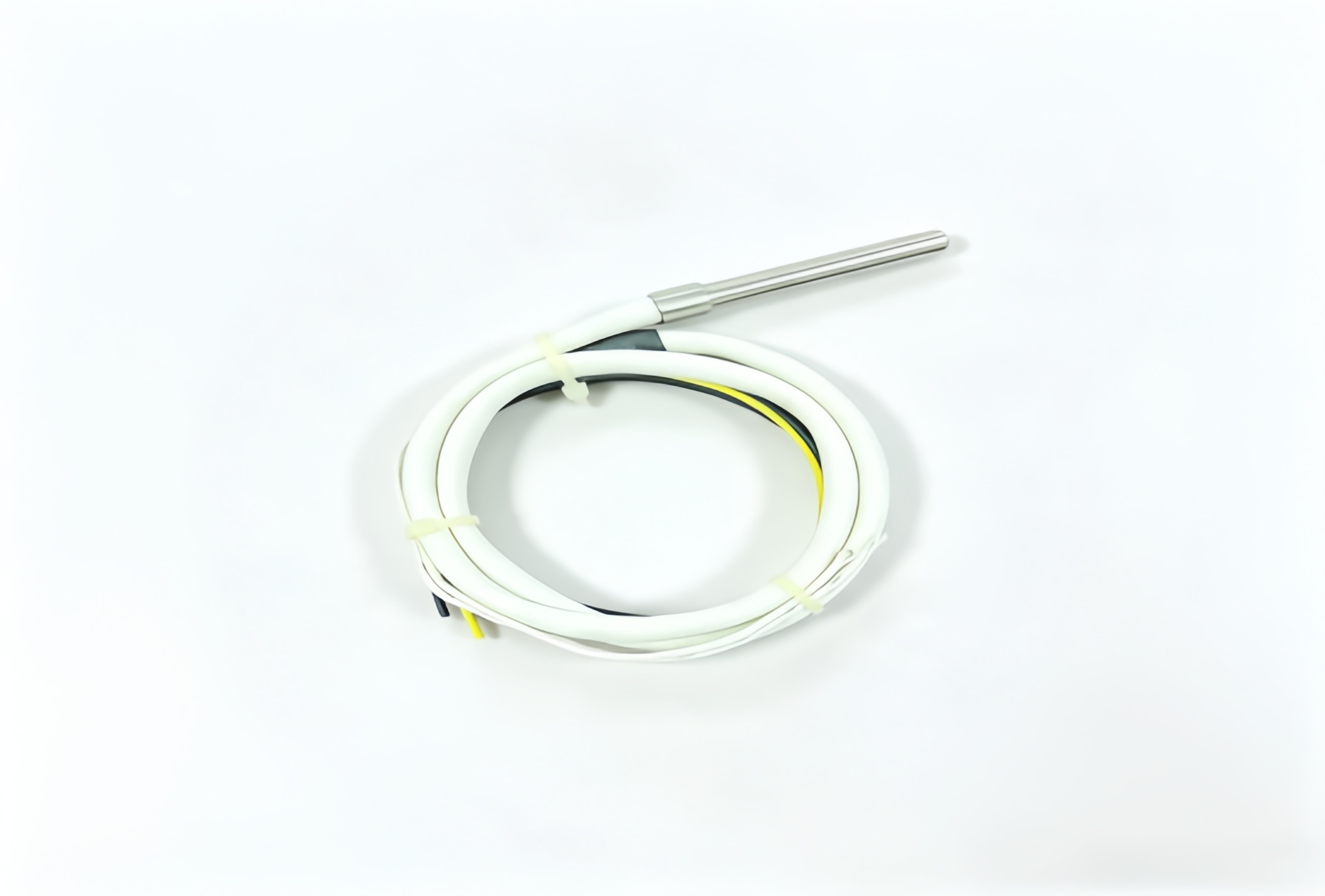

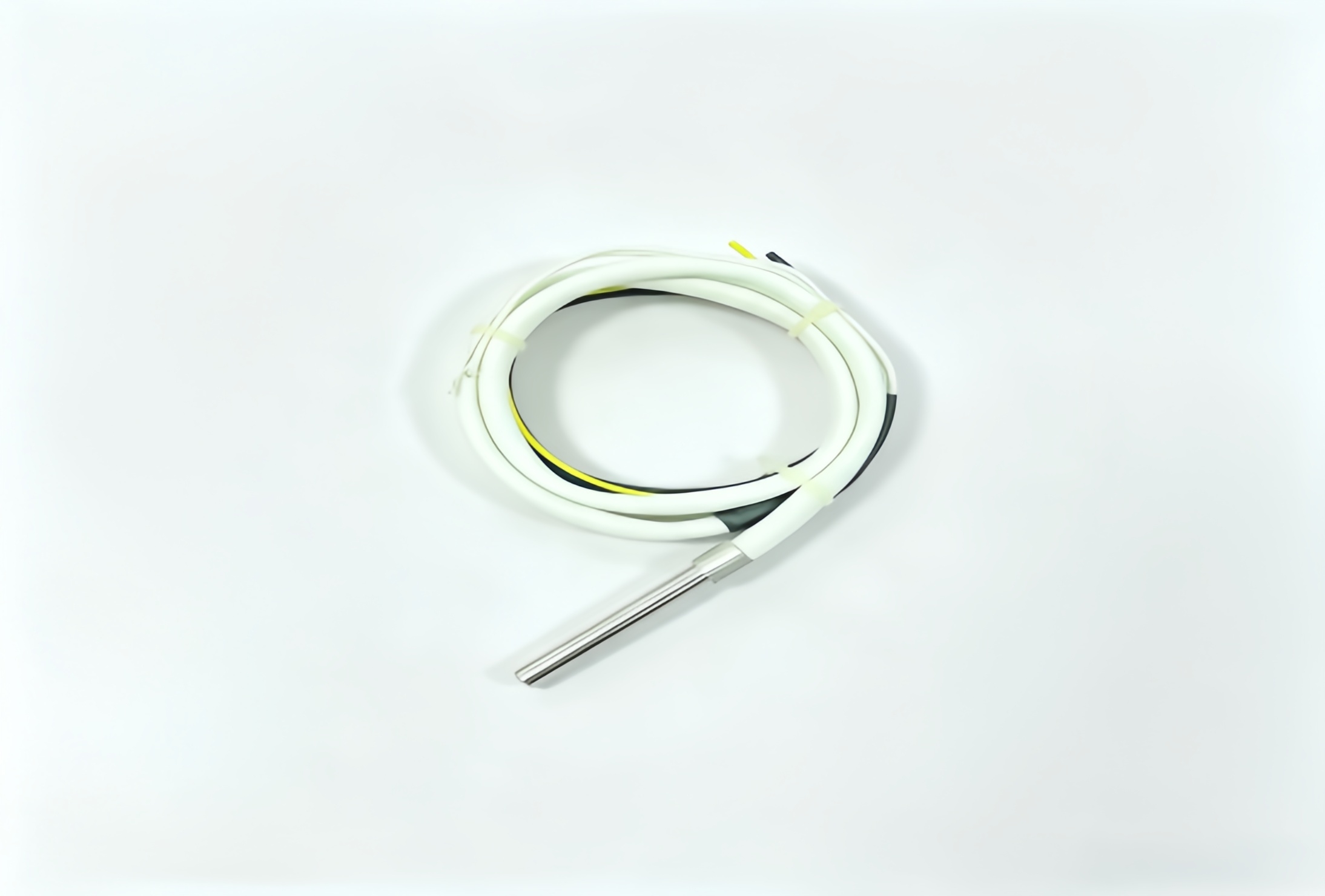

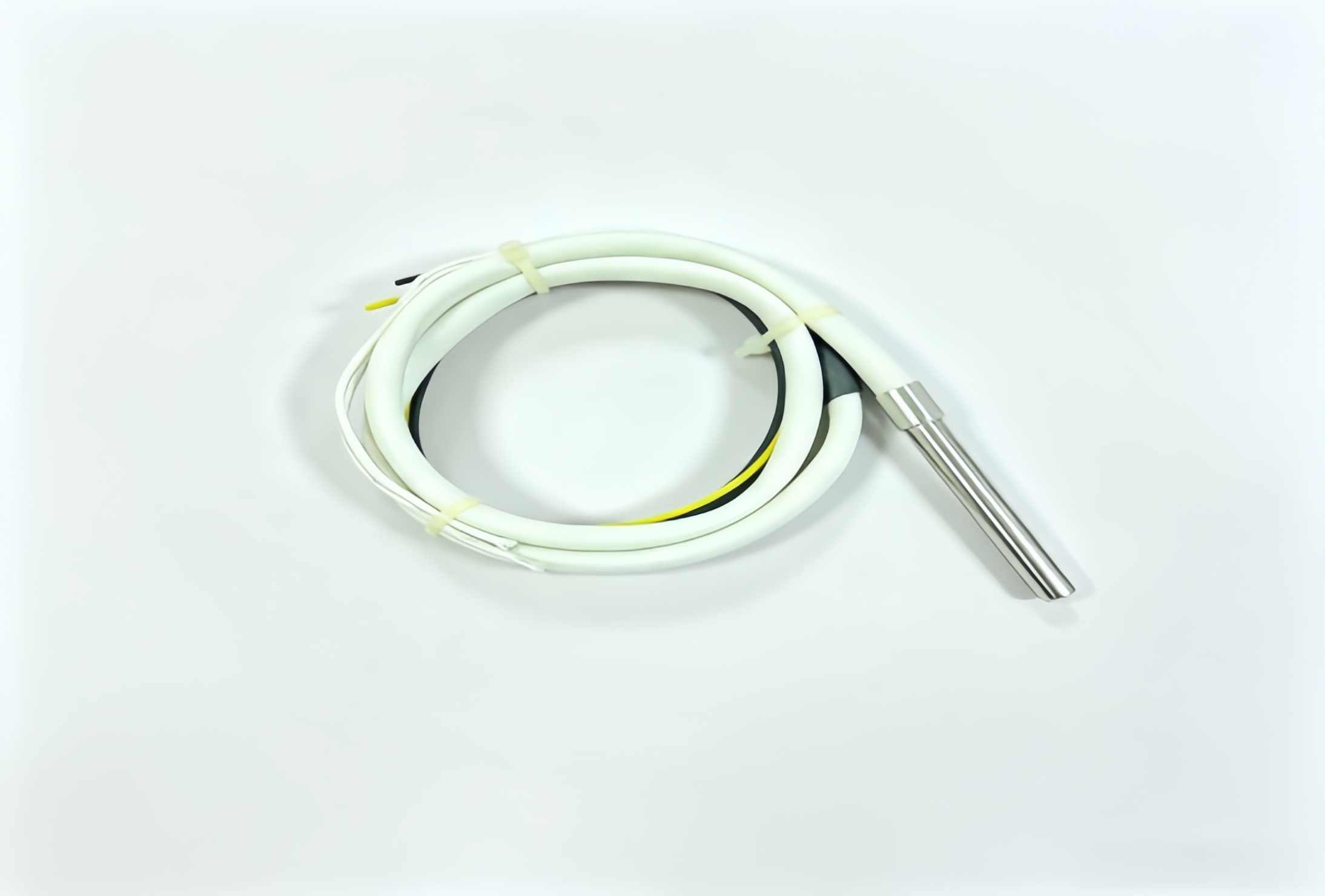

This straight cartridge heater adopts stainless steel sheath and flexible silicone high‑temperature lead wire. It features stable heating performance and easy installation. Voltage, power and dimensions are fully customized for industrial mold heating.
| Material: Outer sheath: 304 stainless steel Resistance wire: Nickel-chromium alloy Insulation medium: High-purity magnesium oxide powder Lead wire sleeve: High-temperature fiberglass insulation | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Single-end cartridge heating form | Specification: Tube material: 304 stainless-steel Optional diameter: 6 mm-12 mm Custom working length: 20 mm-300 mm Available voltage: 12V-380V Power scope: 50W-2000W Lead wire: High-temperature fiberglass cable Custom specifications are acceptable |
| Shape: Straight cylindrical probe shape | Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire |
| Voltage: Multiple optional voltages 12V-380V, custom-available | MGO: High Grade Electric Grade Magnesium Oxide |
| Power: Custom-made power range from 50W to 2000W | Tube Diameter: Customizable tube diameter 6mm-12mm |
| Certification: CE, ISO9001, RoHS, CB, CCC | Application: Suitable for mould heating, packaging machinery, plastic-processing gear, lab heating equipment and other industrial heating facilities |
Features
Straight single‑end cartridge structure, simple insert‑in installation
High‑grade stainless steel sheath, high temperature and corrosion resistance
Flexible silicone high‑temperature lead wire, soft, anti‑aging
High‑purity MGO powder filling, outstanding insulation & heat conduction
Fast heating response, even temperature output, stable continuous work
Support full OEM custom: diameter, length, voltage, power, cable length
Strict electrical performance inspection for each piece before delivery
Package delivery
Each heater bubble‑wrapped, individual box, packed in reinforced export carton. Support express, air and sea shipment. Custom packing is available.
