Product Description

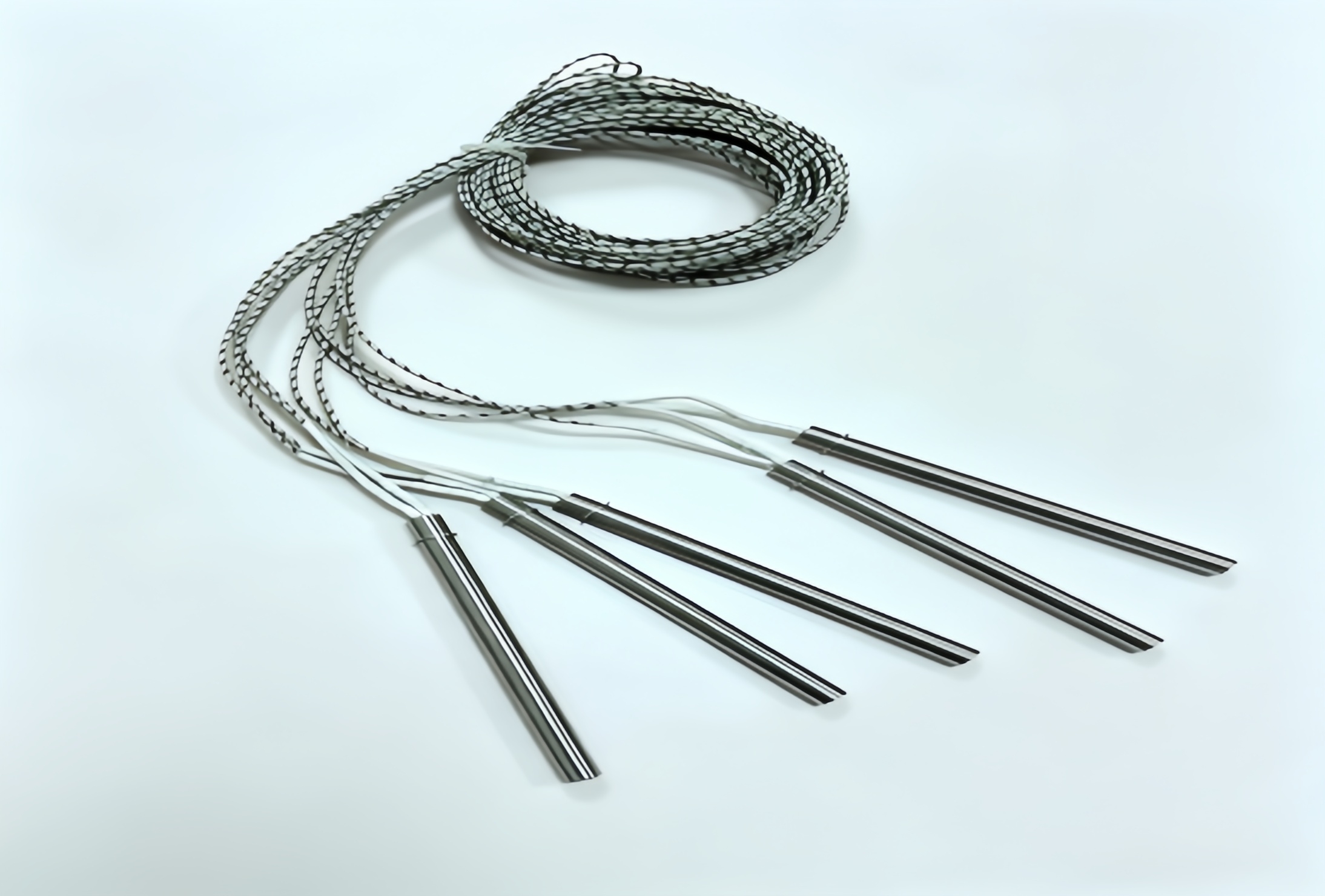

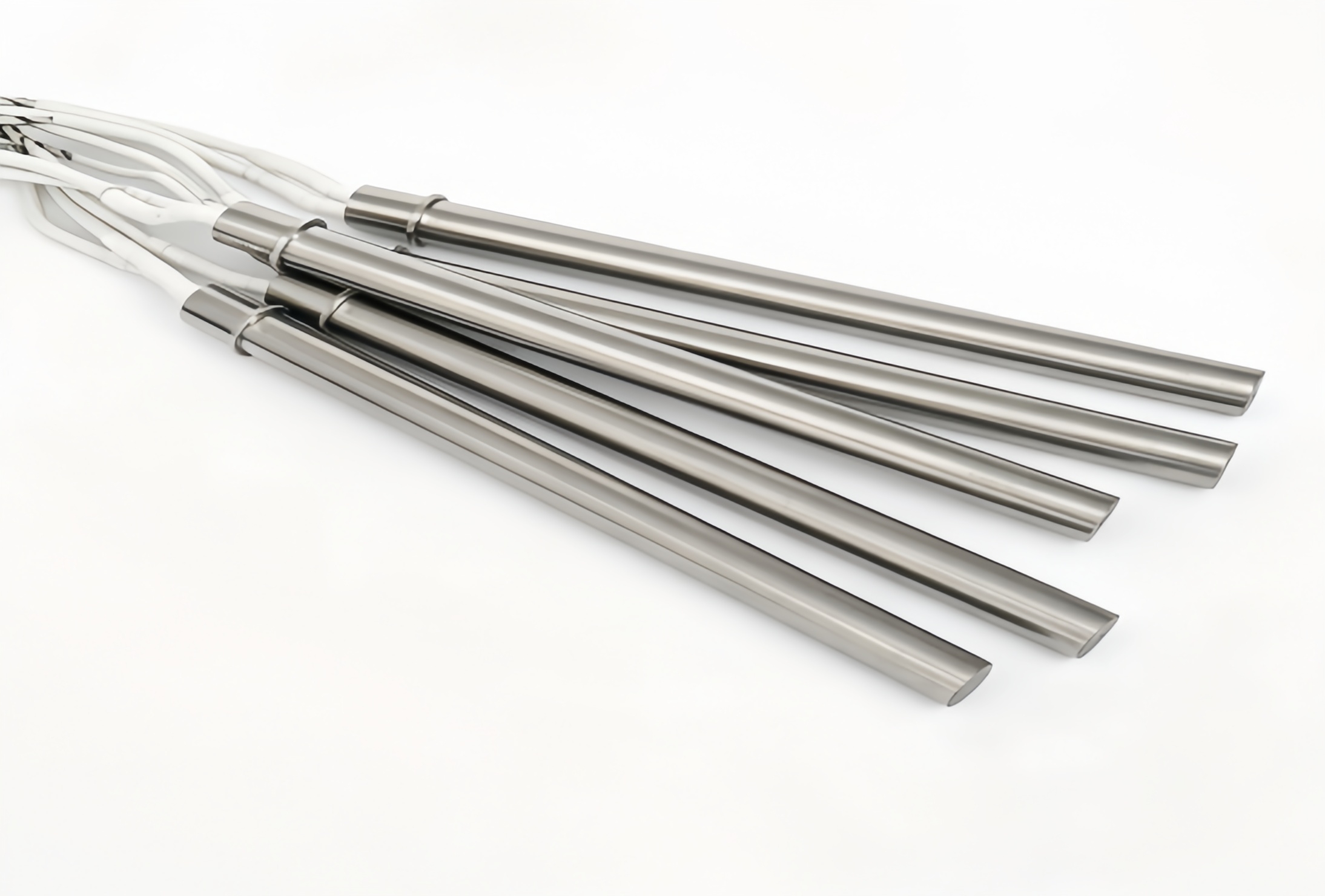

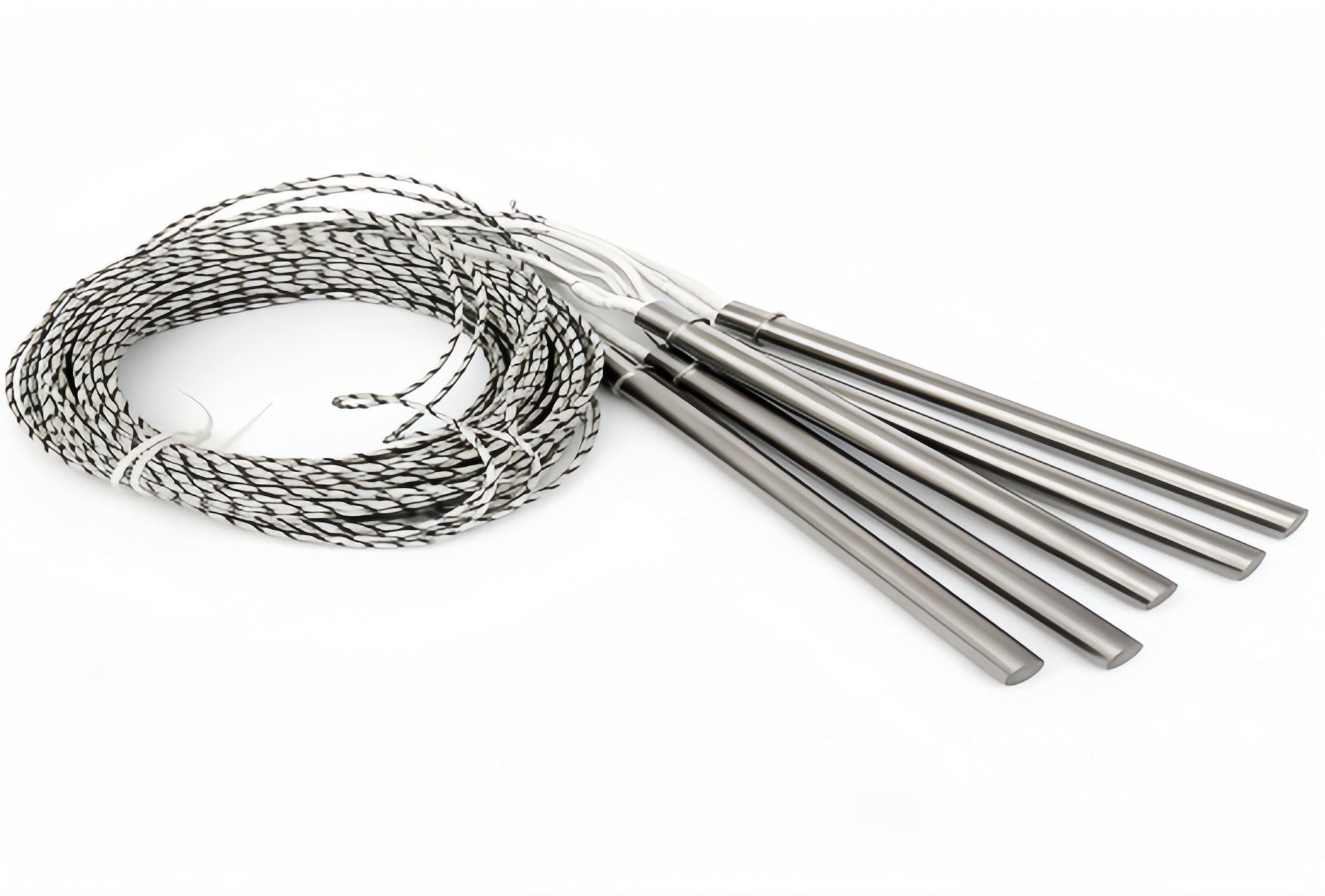

This straight cartridge heater is equipped with braided high‑temperature lead wire and stainless steel sheath. It delivers fast heating and stable performance. Voltage, power and dimensions are customizable for industrial mold heating applications.
| Material: 304 / 316L Stainless Steel Tube, Ni-Cr Heating Wire, High Purity MgO Insulation | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Rod Type Cartridge Heating Element | Specification: Fully Customizable per Drawings & Samples |
| Shape: Cylindrical Tubular | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: 12V-380V, 110V/220V/240V/380V or Customized | Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5 |
| Power: 10W-5000W, Customized on Demand | Tube Diameter: Φ6.6mm / Φ8.0mm / Φ8.5mm / Φ10.0mm, 3-30mm Customizable |
| MGO: High Grade Electric Grade Magnesium Oxide | Application: Mold heating, hot runner, packaging machinery, die casting, industrial drying equipment |
Features
Straight single‑end cartridge structure, convenient for insert‑in installation
Premium stainless steel sheath, high‑temperature resistant and anti‑corrosion
Braided high‑temperature lead wire, outstanding heat‑resistant performance
High‑purity MGO powder filling, excellent insulation and thermal conductivity
Fast heating speed, uniform heat output, stable long‑time operation
Fully customizable: diameter, length, voltage, power and wire length
Strict electrical performance test for each unit before shipment
Package delivery
Each heater bubble‑wrapped, individual box, packed in reinforced export carton. Support express, air and sea shipment. Custom packing available.
