Semicircular Air Dry‑Burn Tubular Heater With Support Rod

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

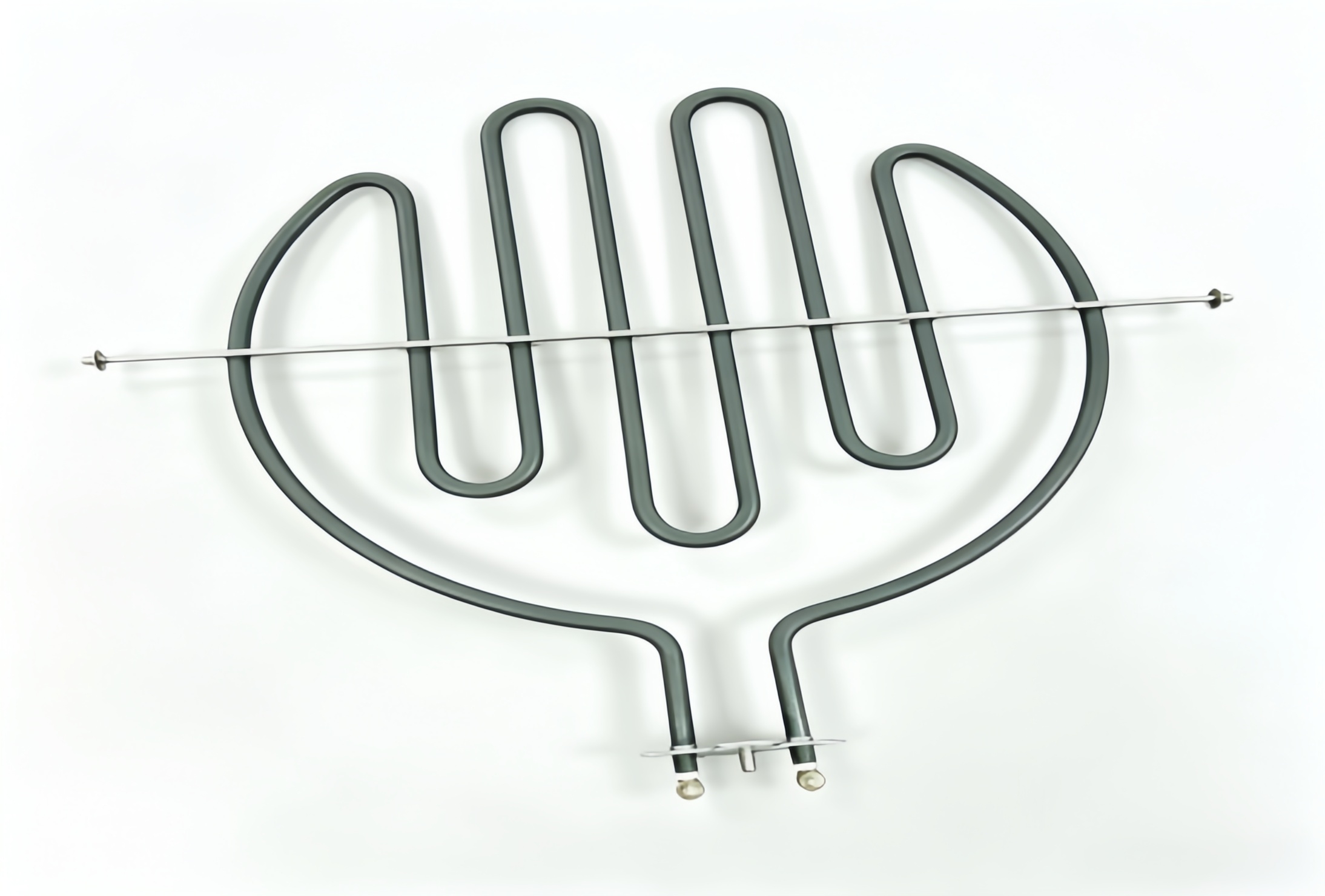

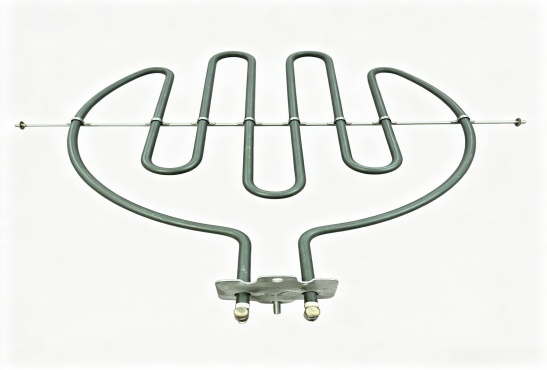

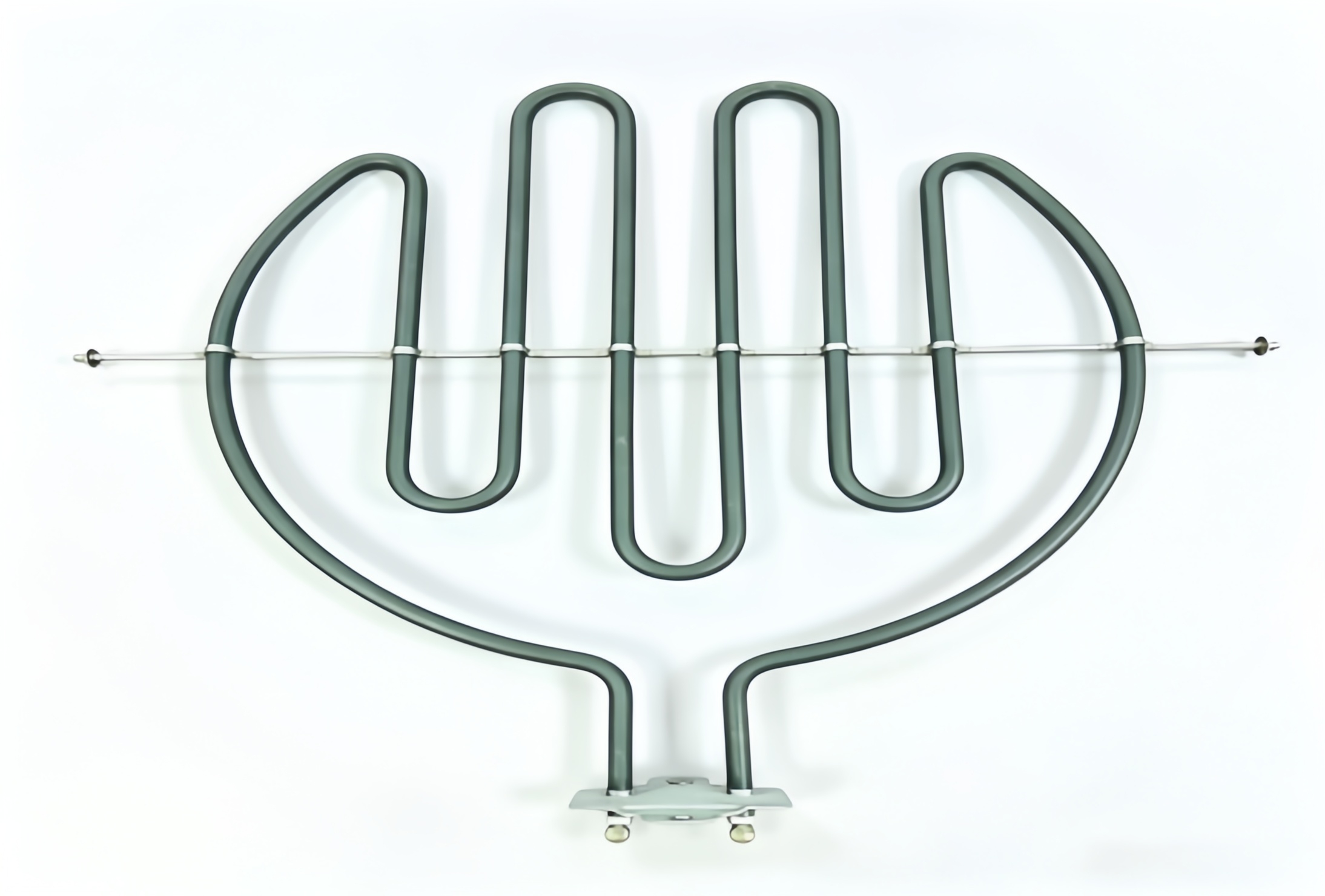

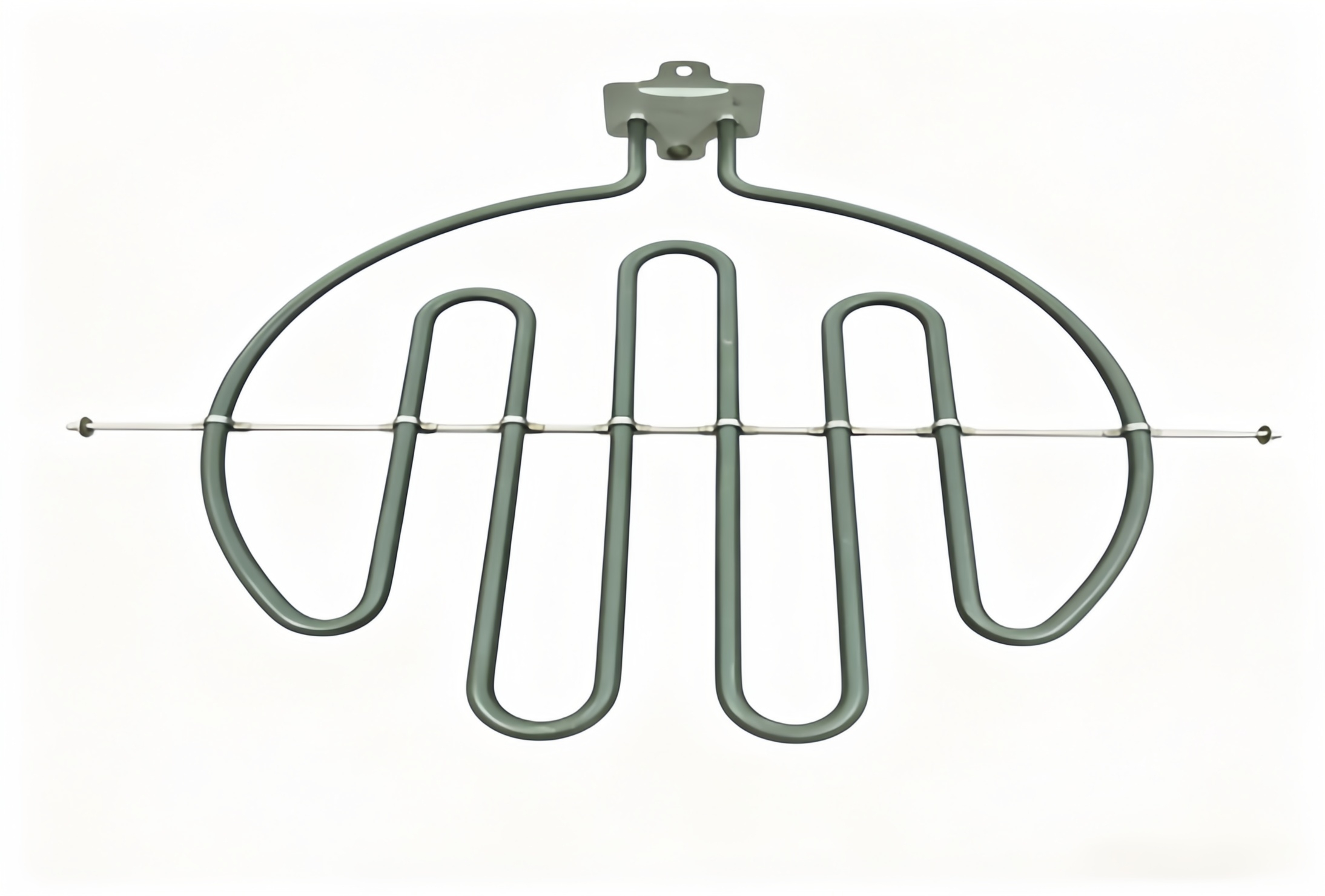

This semicircular heating tube is specially made for air dry‑burn conditions. Equipped with transverse support rod to prevent deformation. Stainless‑steel sheath, fully customizable voltage, power and dimensions for ovens and drying equipment.

Material: Base material: SUS304 stainless steel Optional upgrade: Incoloy 800 alloy tube (high temperature heavy-duty)	Transport Package:Carton Box with Foam Shockproof Protection
Form: Heart coil shape tubular heater with horizontal cross support rack, U-bend inner loops, integrated mounting bracket with screw terminals	Specification: Heart coil oven heating element, SUS304 tube, Dia 8mm, 220V, 1000W-3000W, black anti-oxidation coating, cross support frame, Lu-Chiuan CE & UL certified
Shape: Nested concentric multi-circle tubular shape with square stainless grid rack and rectangular six-terminal flange	MGO: High purity magnesium oxide insulating powder
Voltage: Standard voltage: 220V / 230V (Fit Pakistan market) Custom optional: 110V, 120V, 240V, 380V customizable	Resistance Wire: Cr20Ni80 Nickel-chromium alloy heating wire
Watt: Standard power: 1500W / 2000W / 2500W Custom wattage: 1000W~3000W customizable	Tube Diameter: Standard tube diameter: 8mm Optional sizes: 6mm, 10mm customizable
Product Name: Semicircular Air Dry‑Burn Tubular Heater With Support Rod	Usage: For household electric convection oven, baking, toasting & food drying

Features

Specially designed for long‑time air dry‑burn working condition
Semicircular layout, wide‑range and uniform heat distribution
With transverse support rod, anti‑deformation & anti‑sagging
Stainless‑steel sheath, excellent high‑temperature & oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
