Product Description

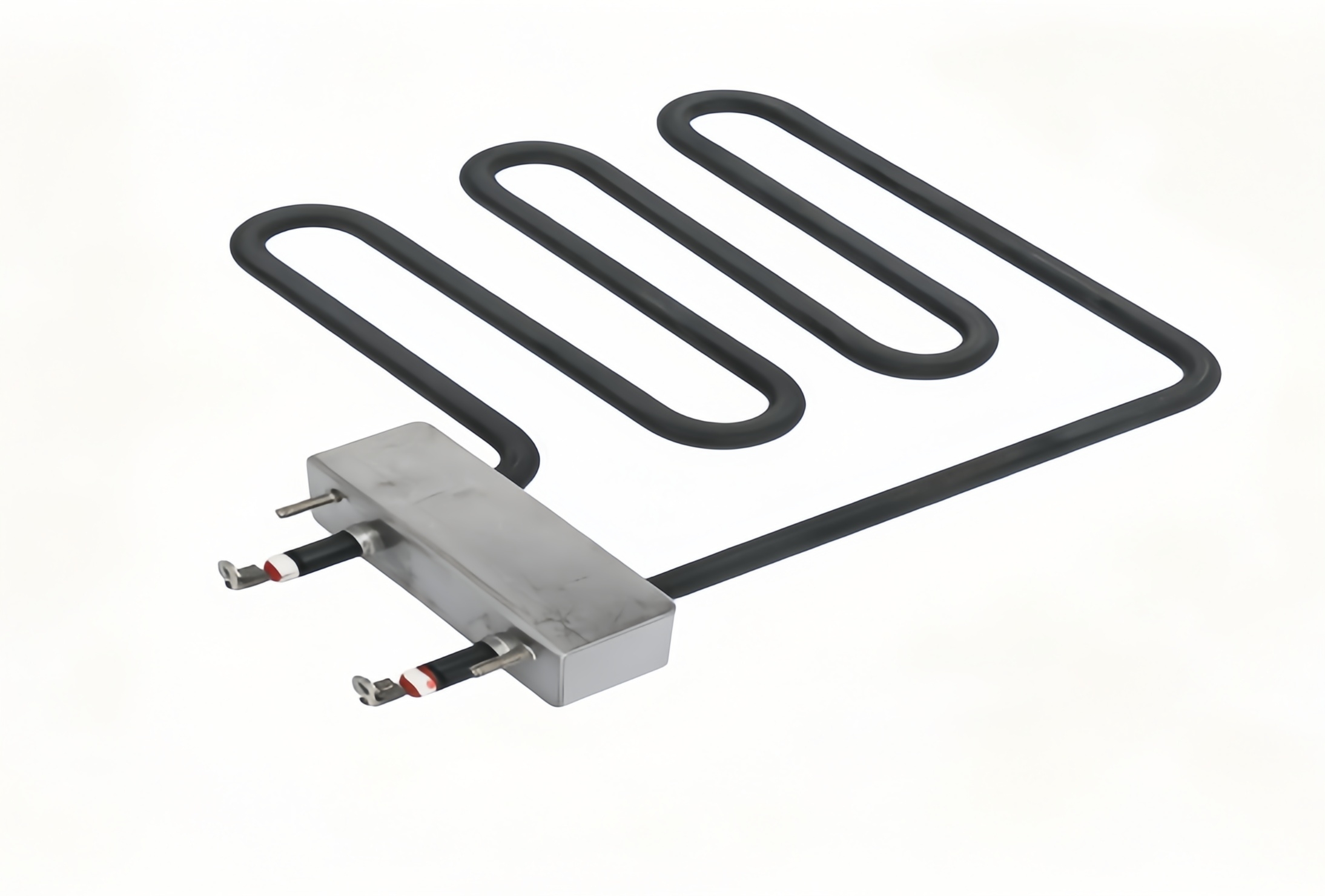

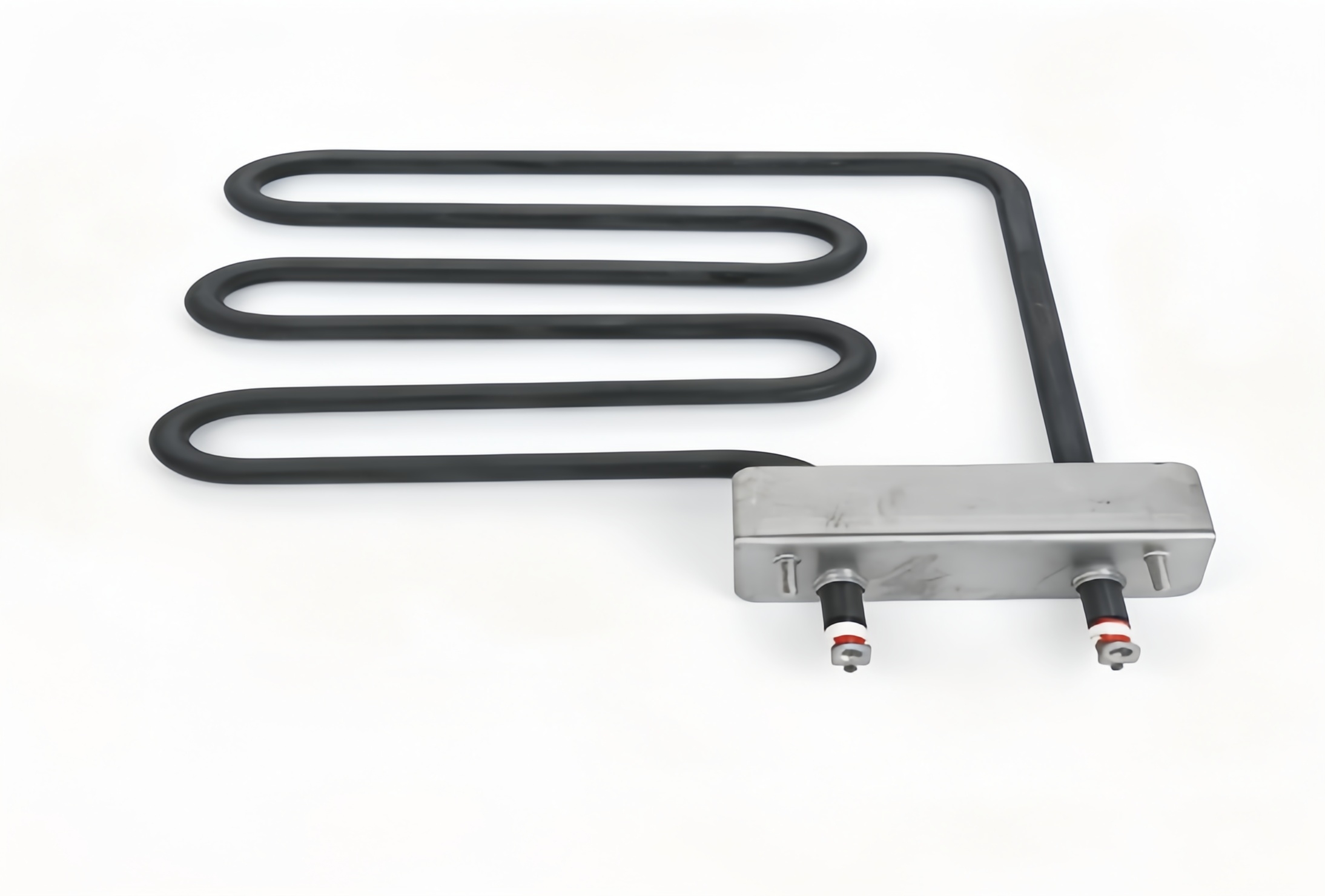

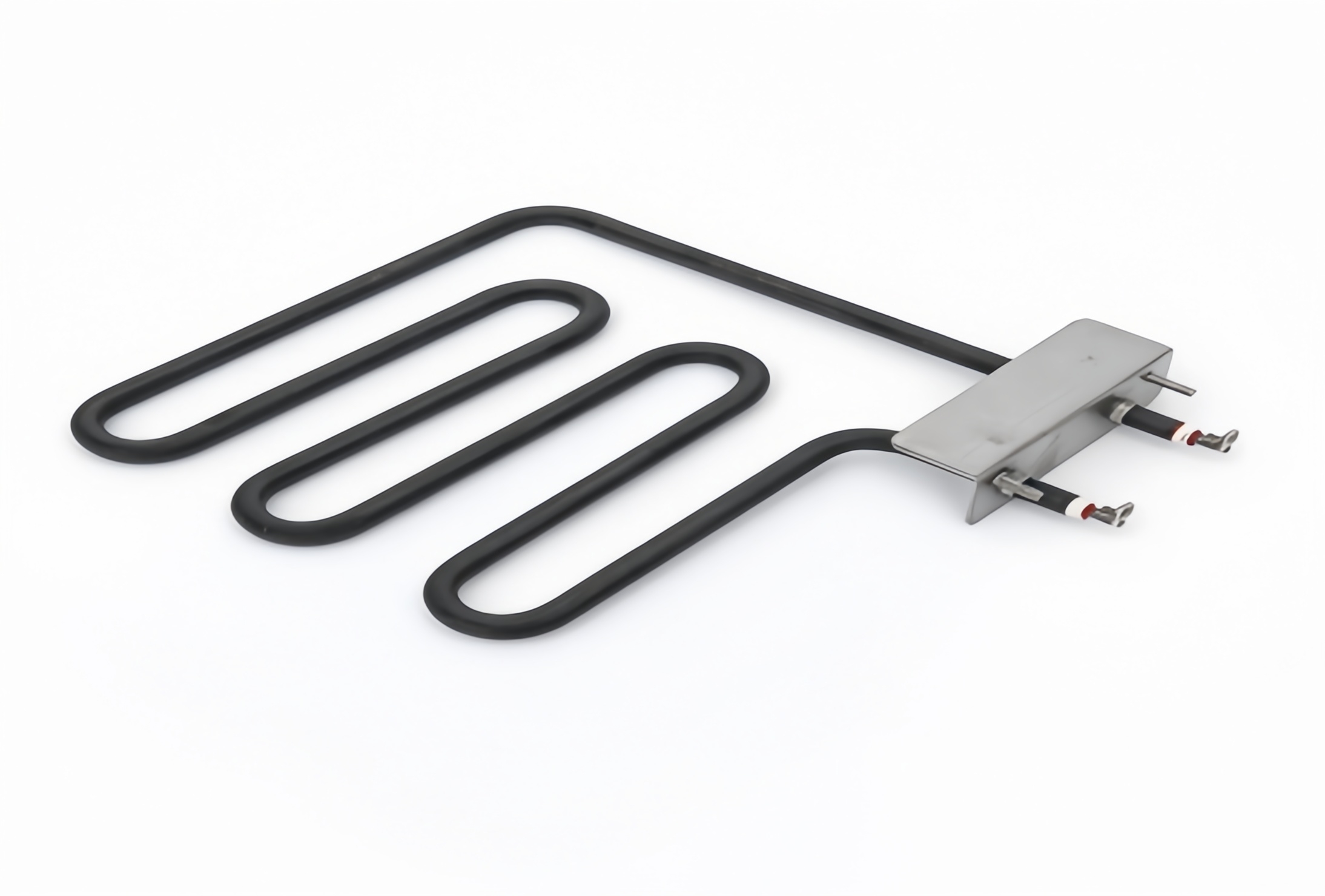

This W‑shape three‑loop heater is designed for air dry‑burn applications. Fitted with metal terminal box for safe wiring. Stainless‑steel sheath, fully customizable voltage, power and dimensions for ovens and drying equipment.
| Material: SUS304 stainless steel tube, Ni80Cr20 wire, high-purity MGO, black anti-oxidation coating, aluminum terminal box, ceramic insulation | Transport Package: Carton Box with Foam Shockproof Protection |
| Form: Integrated M-shaped 3-U bent tubular form, side-mounted square aluminum terminal box, flat dry radiant heating structure | Specification: Tube OD:10mm/12mm; Voltage:110V/220V/230V/380V; Watt:1000W-2500W; M shape 3U bent; SUS304 tube, aluminum terminal box, customizable size & power |
| Shape: Flat M shape with 3 continuous U bends, with square aluminum terminal box on one side | Resistance Wire:Ocr25al5 or Ni80cr20 |
| Voltage: 110V, 220V, 230V single phase; 380V three phase, custom voltage available | MGO: High density high purity magnesium oxide powder, excellent heat conduction & insulation |
| Watt: 1000W, 1500W, 2000W, 2200W, 2500W, custom wattage supported | Tube Diameter: 10mm, 12mm, customized tube diameter available |
| Product Name: W‑Bend Oven Heating Element | Usage: For household electric ovens, baking ovens, grill ovens, air fryer ovens |
Features
Specially designed for long‑time air dry‑burn working condition
W‑shape three‑loop bent structure, long heating length, even heat distribution
With metal terminal box, safe wiring and stable connection
Stainless‑steel sheath, excellent high‑temperature and oxidation resistance
Customizable voltage, power and overall dimension
Package delivery
Packaging
Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.
Shipping
Sea freight, air freight or express delivery are available based on your requirement.
