Square Spiral Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

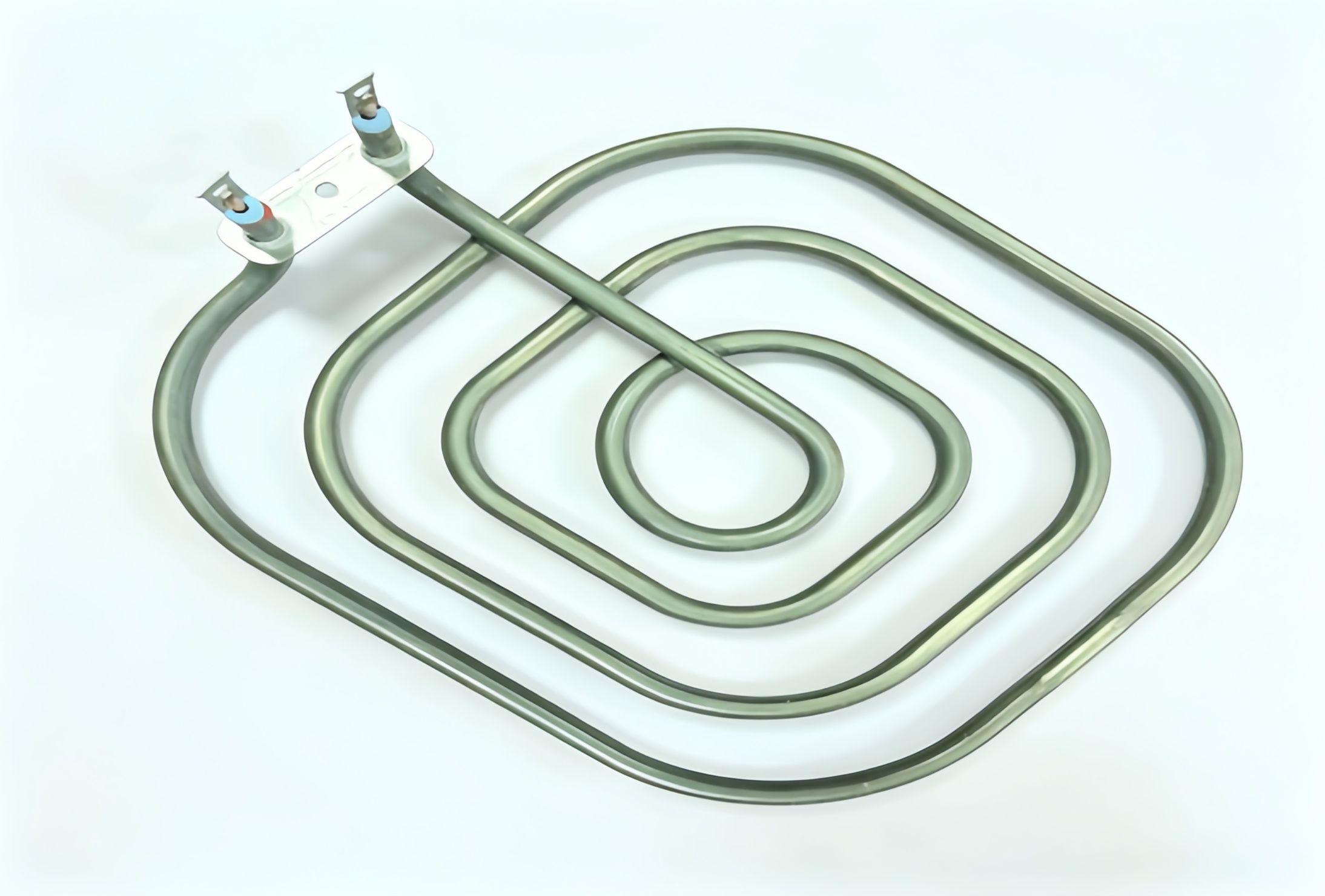

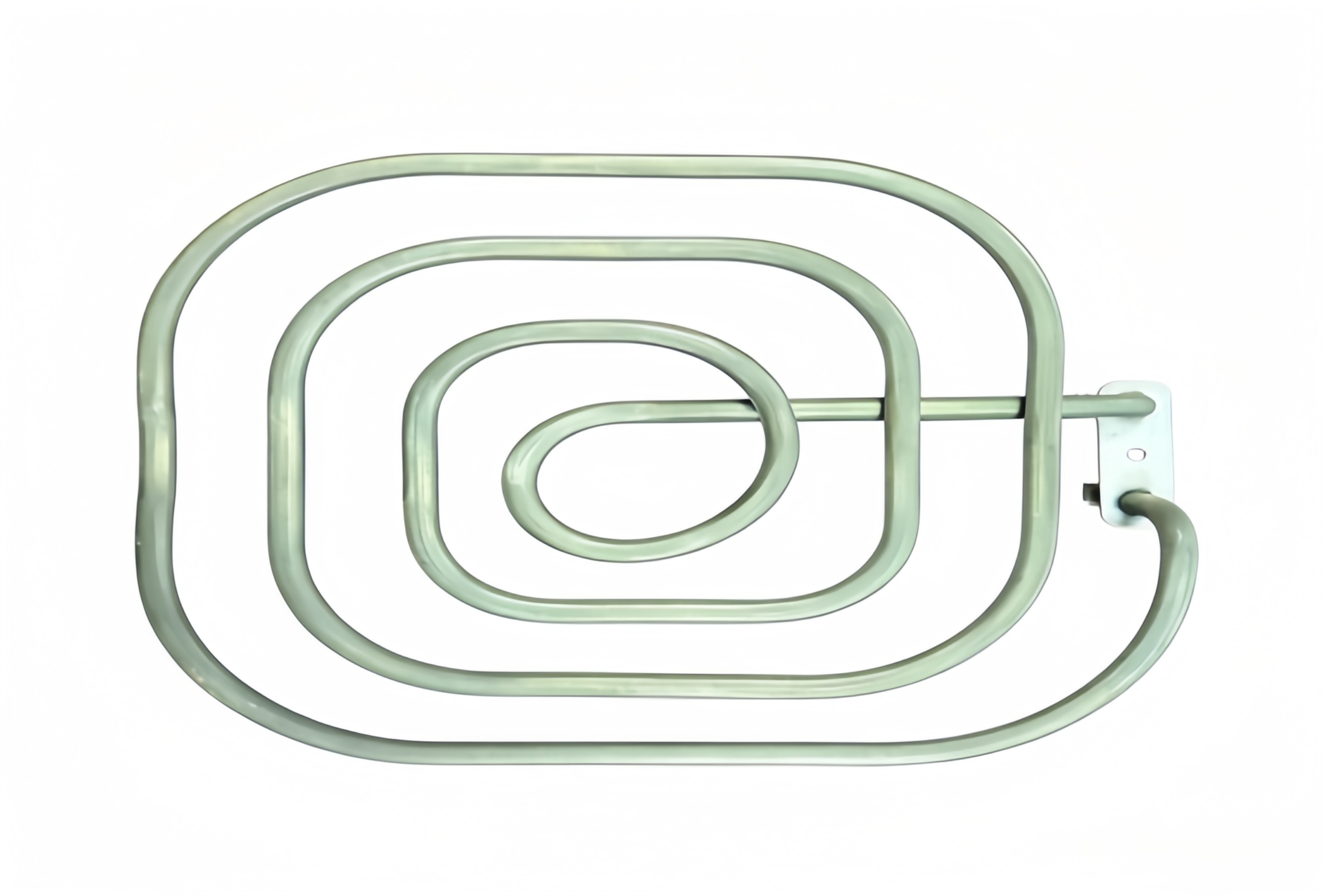

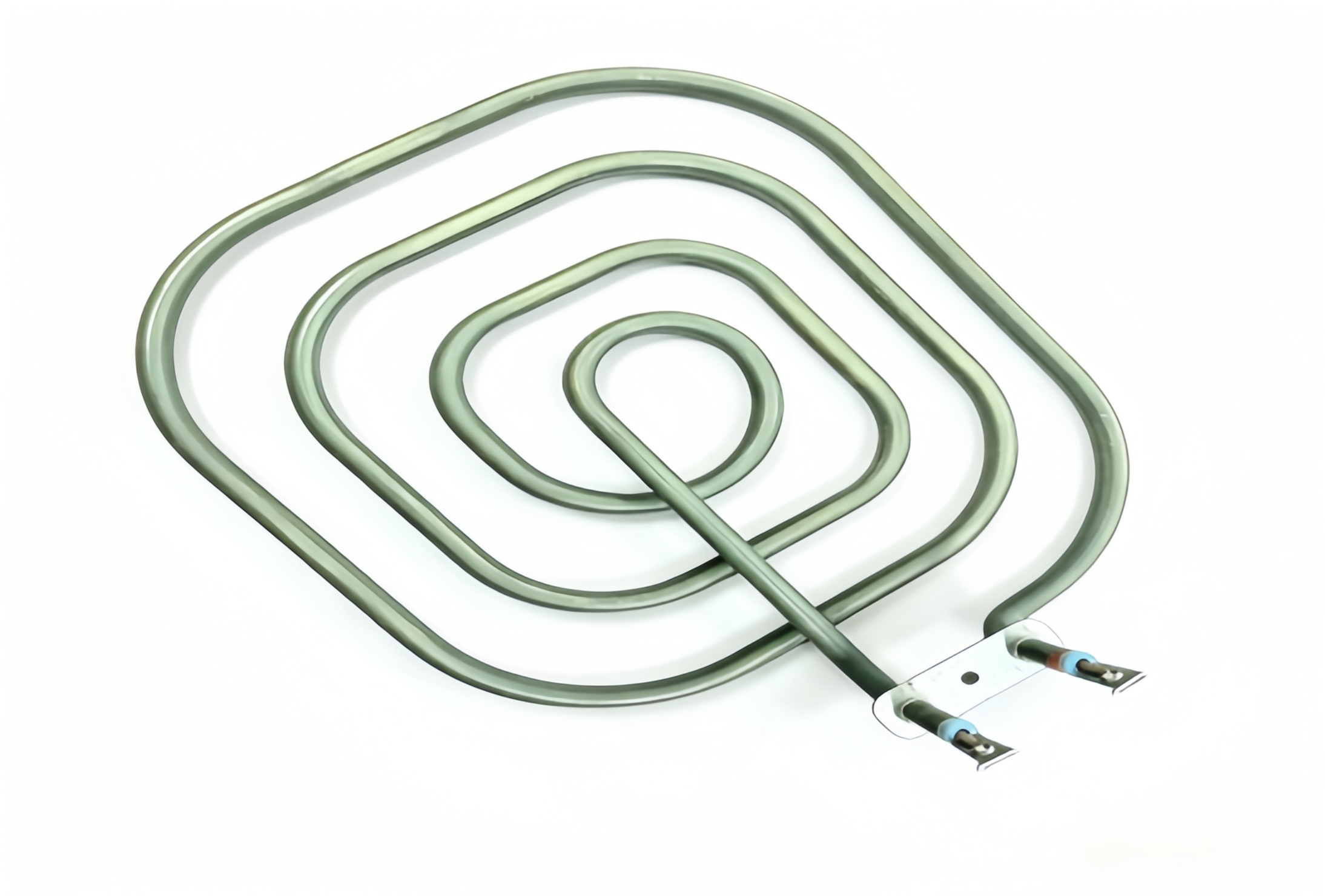

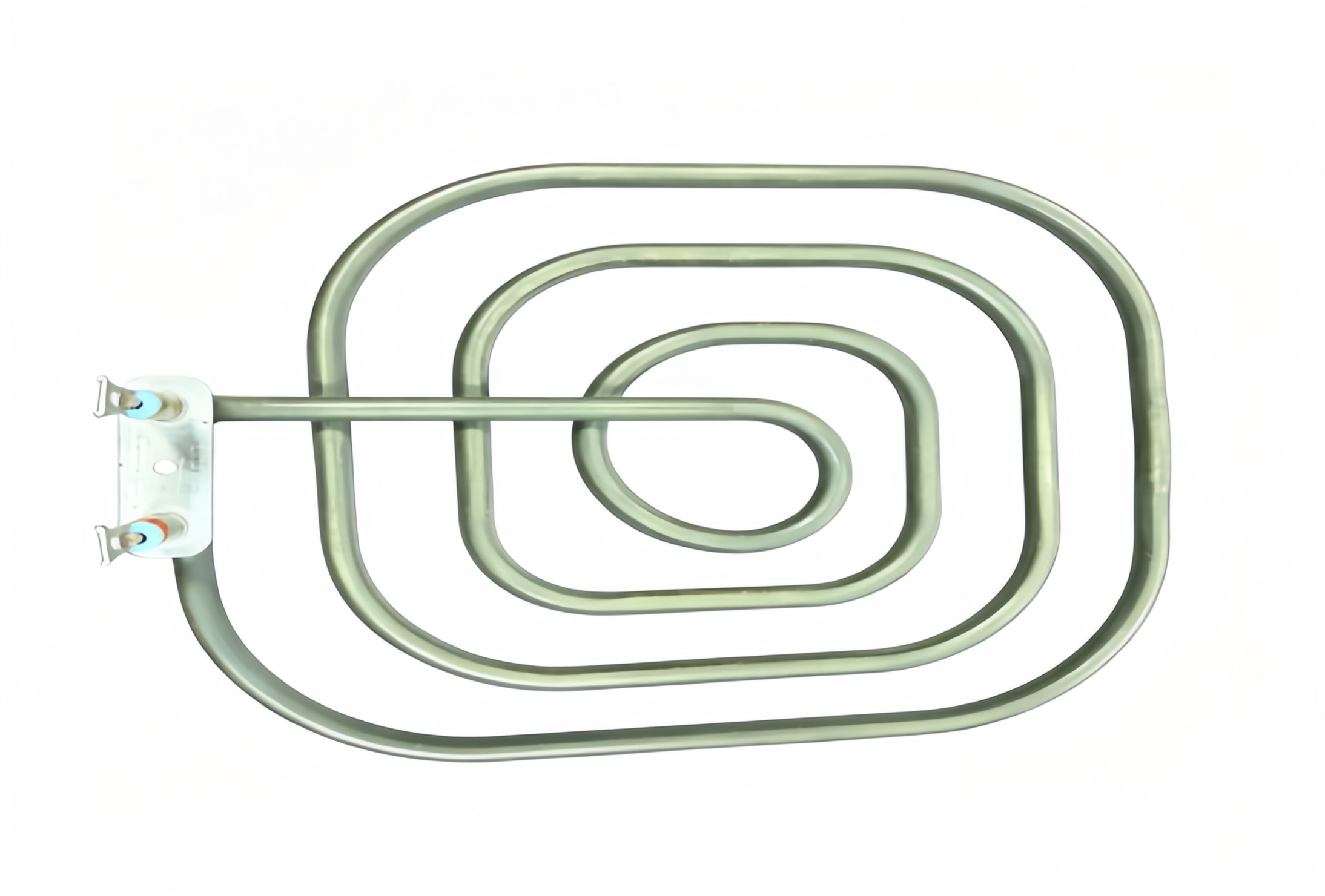

This square‑spiral tubular heater is designed for air dry‑burn applications. Equipped with metal mounting plate for quick installation. Stainless steel sheath, fully customizable voltage, power and dimensions for household and industrial ovens.

Material: Outer tube: Stainless steel Heating wire: Cr20Ni80 Insulation: High purity MGO powder Mount bracket: Galvanized steel	Transport Package:Carton Box with Foam Shockproof Protection
Form: Square multi-loop coiled tubular heating form	Specification: Square coil heating element, 110/220V, 800-2500W, tube 6.5/8mm, stainless steel tube, Cr20Ni80 wire, MGO insulation, CE&UL with Lu-Chiuan patent
Shape: Square concentric multi-loop spiral shape	MGO: High purity magnesium oxide insulating powder
Voltage: Standard 110V / 220V, customizable 120V/230V/240V	Resistance Wire: Cr20Ni80 Nickel-chromium alloy heating wire
Watt: Standard 800W–2500W, customizable power available	Tube Diameter: Standard 6.5mm / 8mm, custom sizes supported
Product Name: Square Spiral Oven Heating Element	Usage: For electric ovens, toasters, baking machines and small kitchen heating equipment

Features

Specially‑designed for air dry‑burn working condition
Square spiral multi‑loop structure, large heating area, fast & even heat‑up
Built‑in metal mounting plate, convenient and firm installation
Stainless‑steel sheath, good high‑temperature and oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
