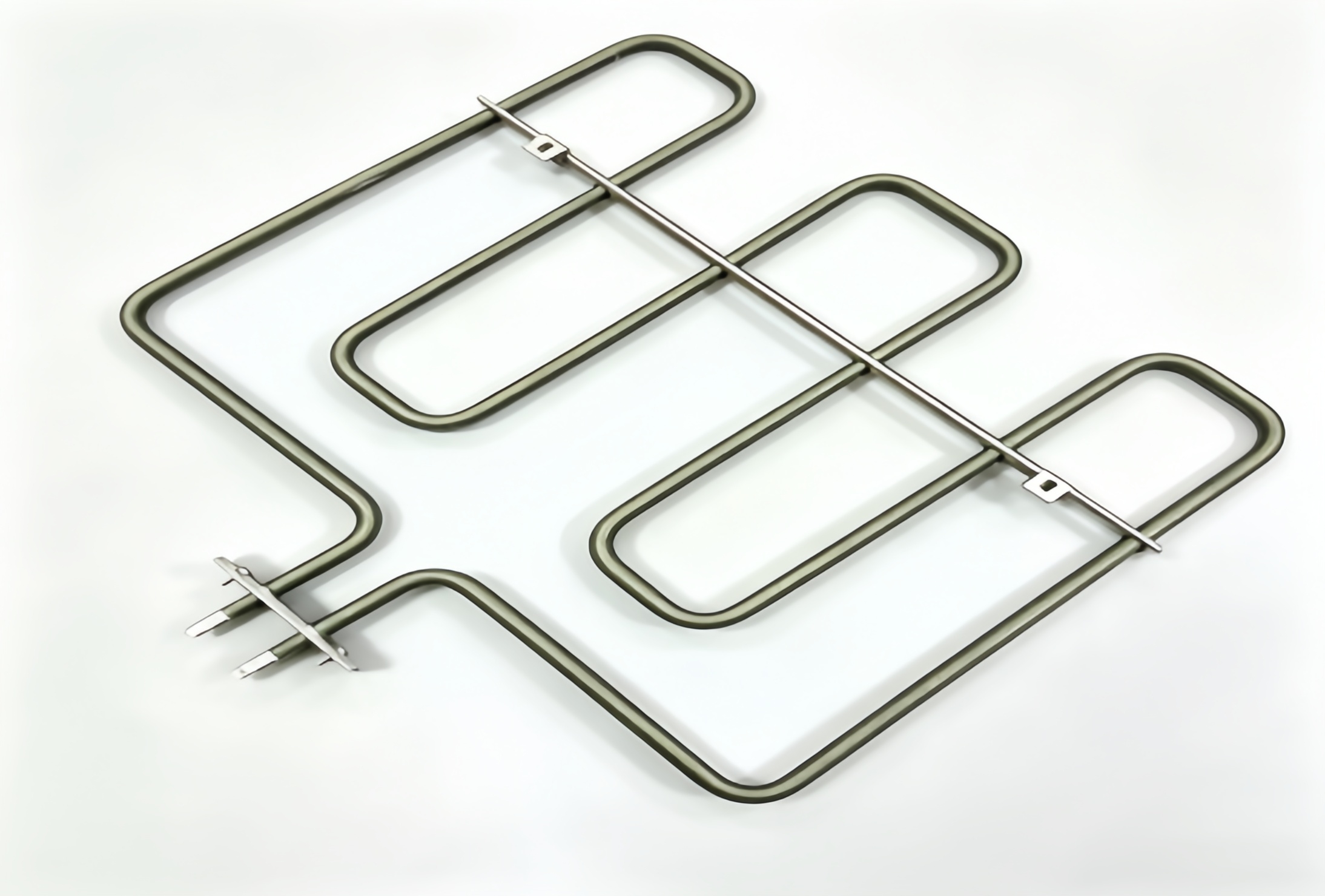

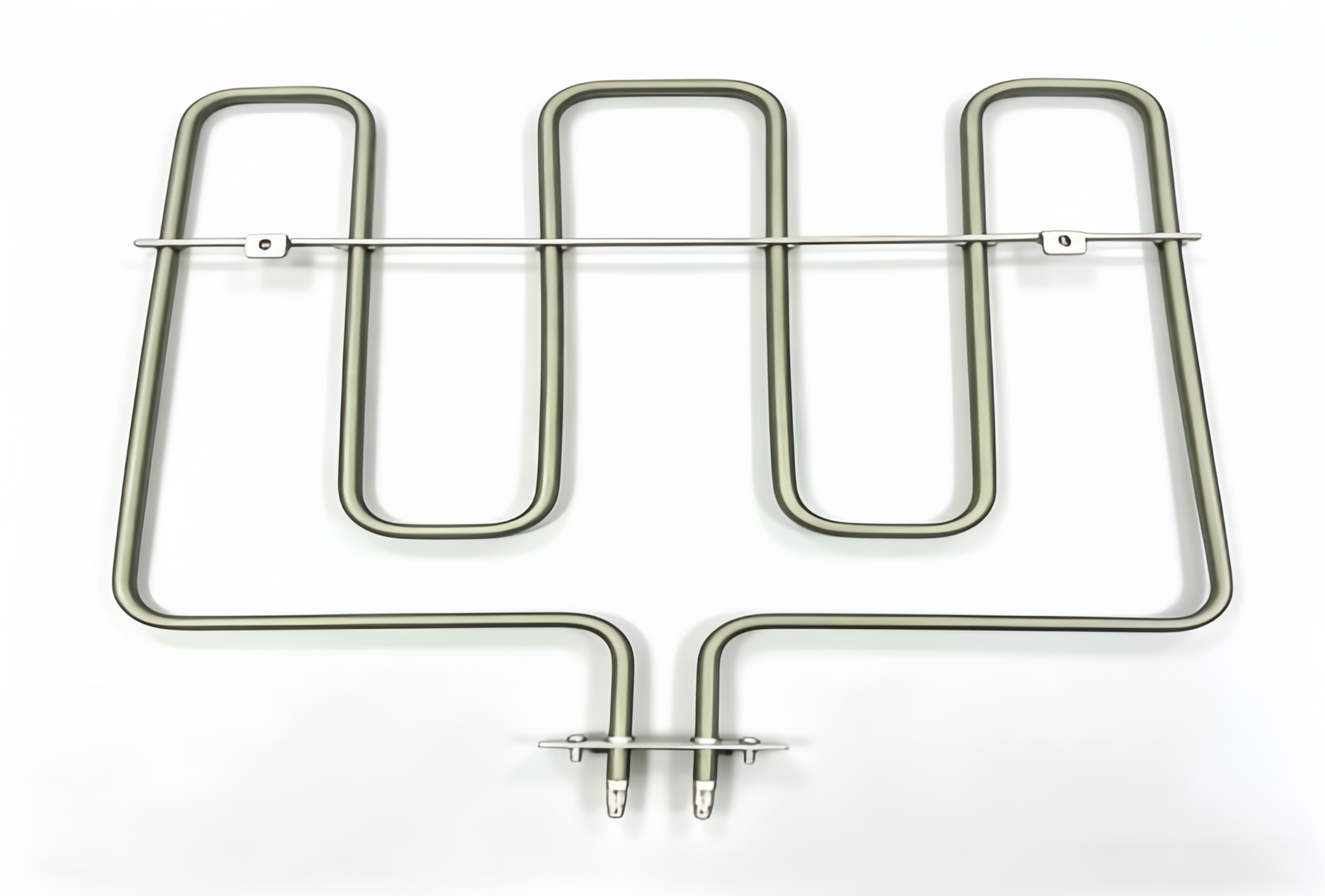

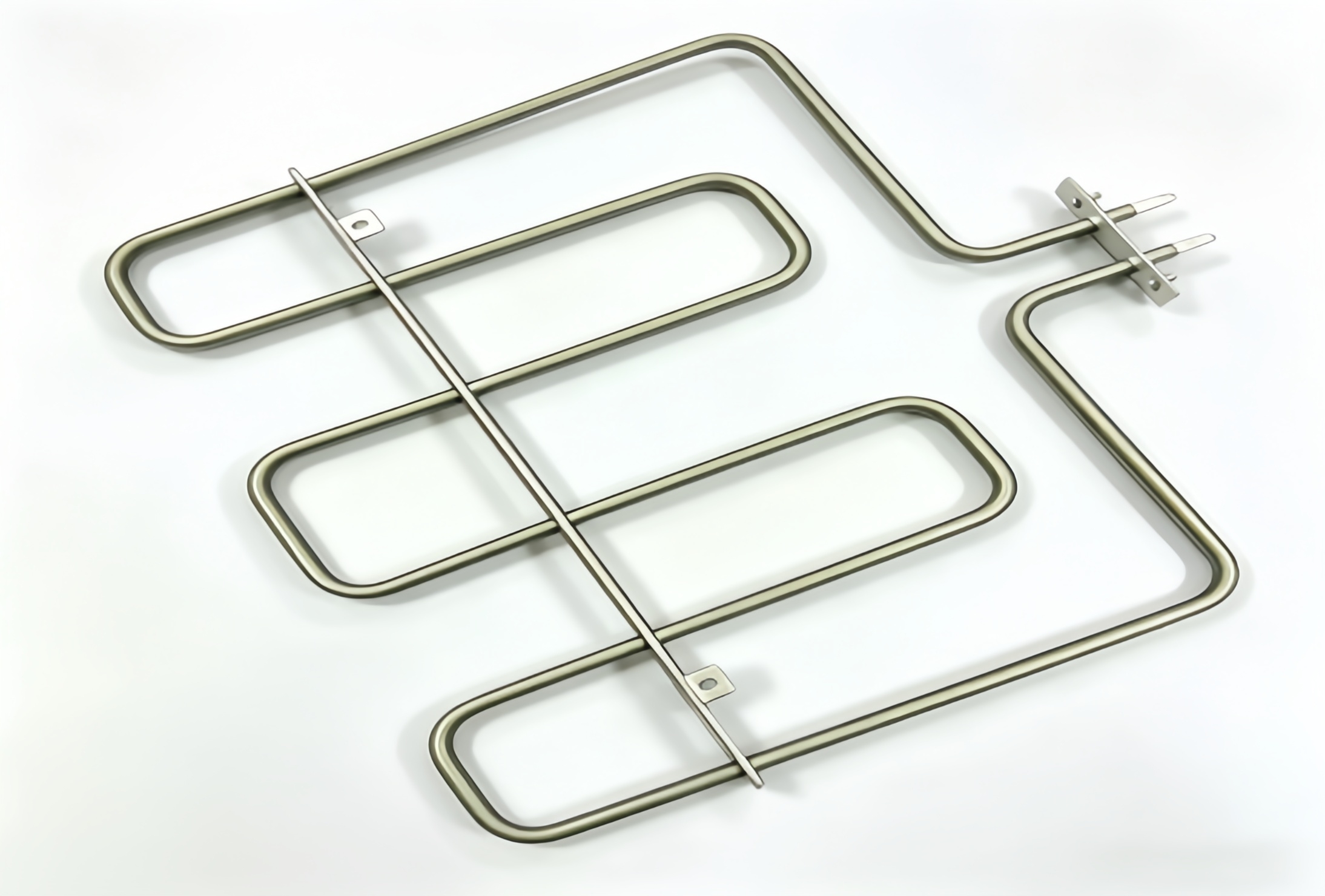

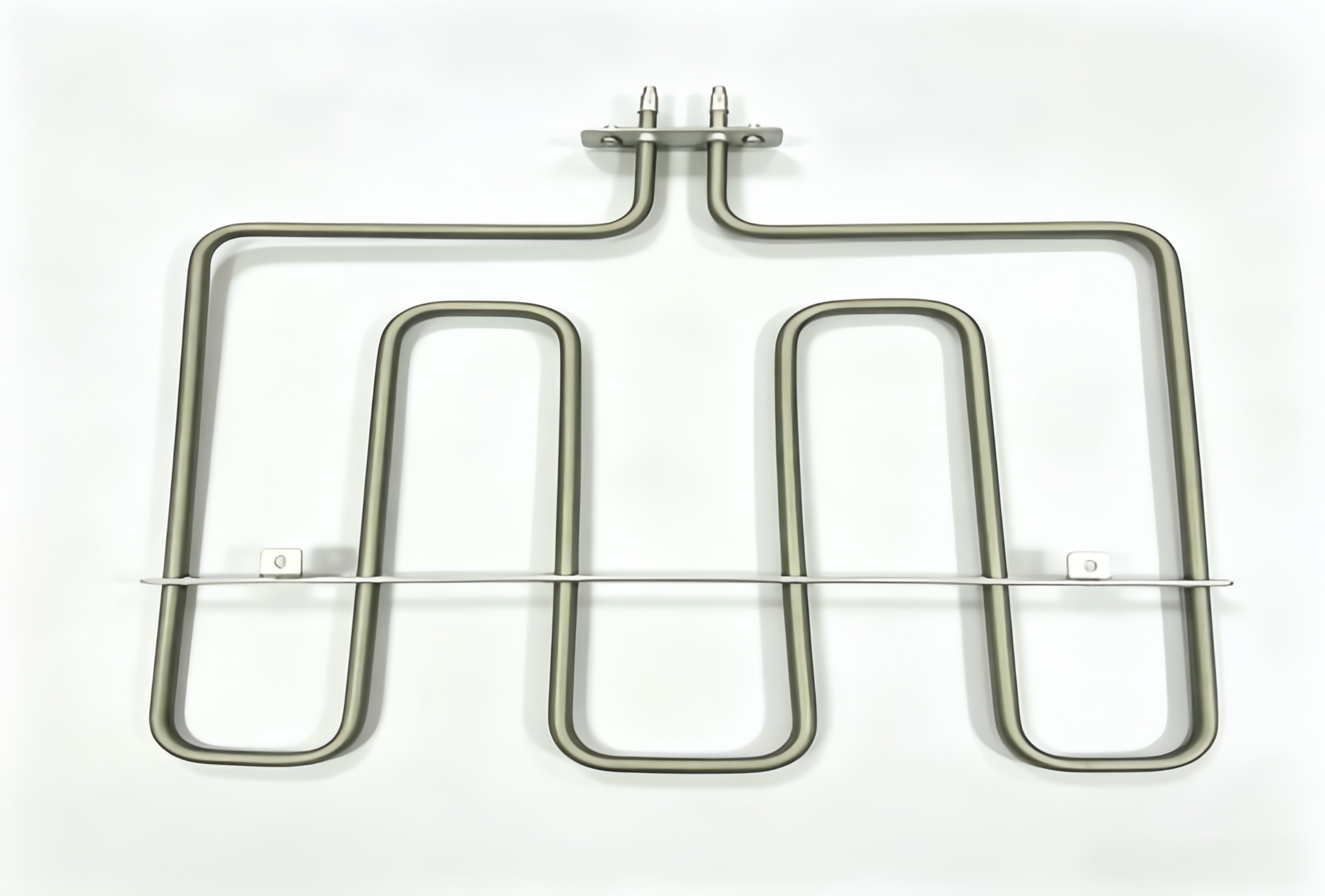

Three‑Loop Oven Dry‑Burn Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This three‑loop tubular heater is specially built for air dry‑burn conditions. Equipped with cross support rod to prevent deformation under high‑temperature working. Stainless steel sheath, fully custom‑made voltage, power and dimensions for industrial oven and drying equipment.

Material: SUS304 stainless steel, Ni80Cr20 wire, high purity MgO, black anti-oxidation coating, stainless steel brackets	Transport Package:Carton and Wooden Box
Form: 3 U-wave bent flat tubular heater with cross support bar and rear mounting plate	Specification:Customized
Shape: Flat 3-U wavy rectangular shape	MGO: High-purity compact magnesium oxide powder
Voltage: 110V/220V/230V Single Phase, 380V Three Phase, Custom Voltage Available.	Resistance Wire:Ocr25al5 or Ni80cr20
Watt: Customized	Tube Diameter: 10mm / 12mm customizable
Product Name: Three‑Loop Oven Dry‑Burn Heating Element	Usage: Household electric oven, built-in oven, countertop baking & roasting oven

Features

Designed for long‑time air dry‑burn working condition
Three‑loop bending structure, large heating area, even heat distribution
Cross support‑rod, anti‑deformation & high stability
Stainless‑steel sheath, excellent high‑temperature & oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
