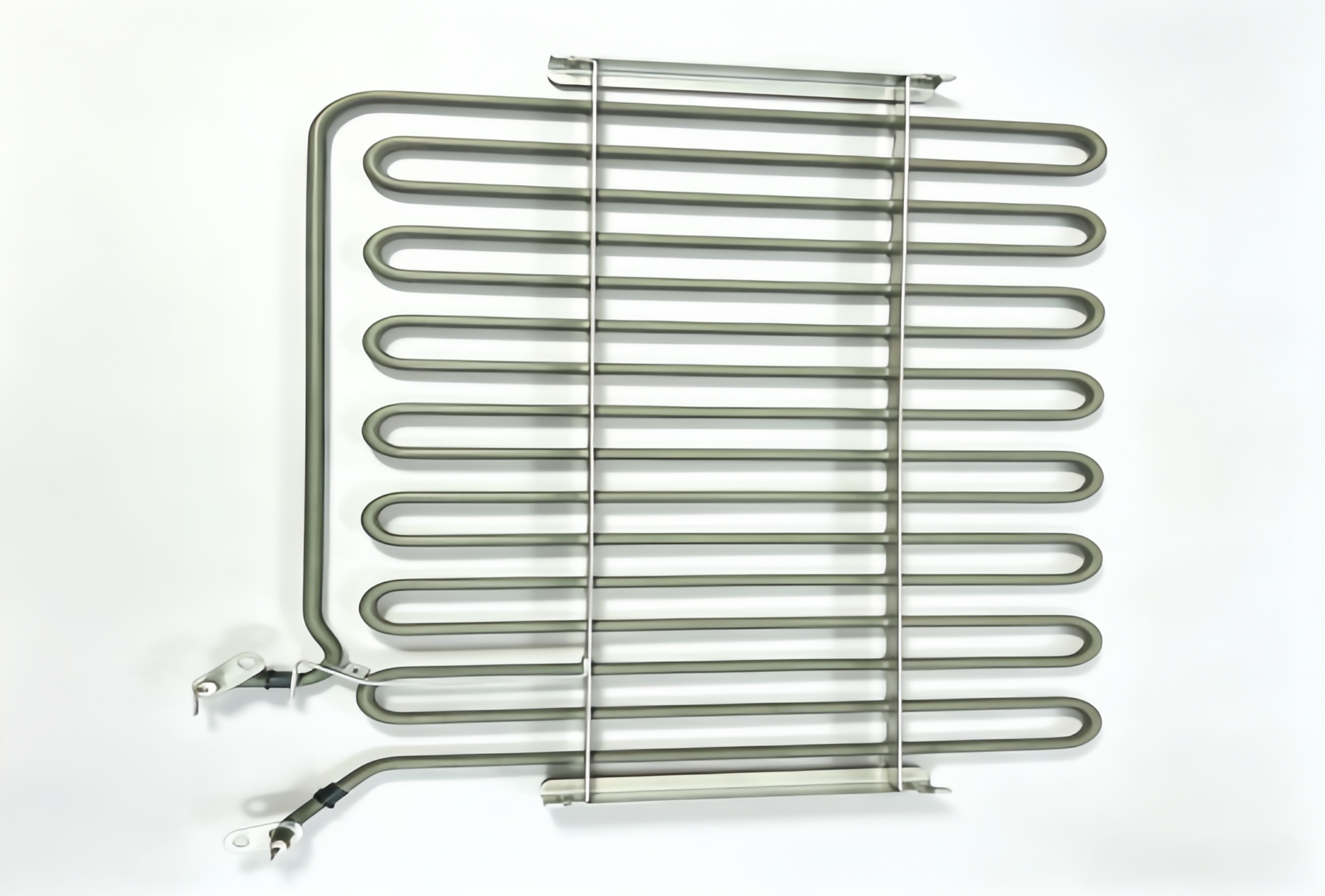

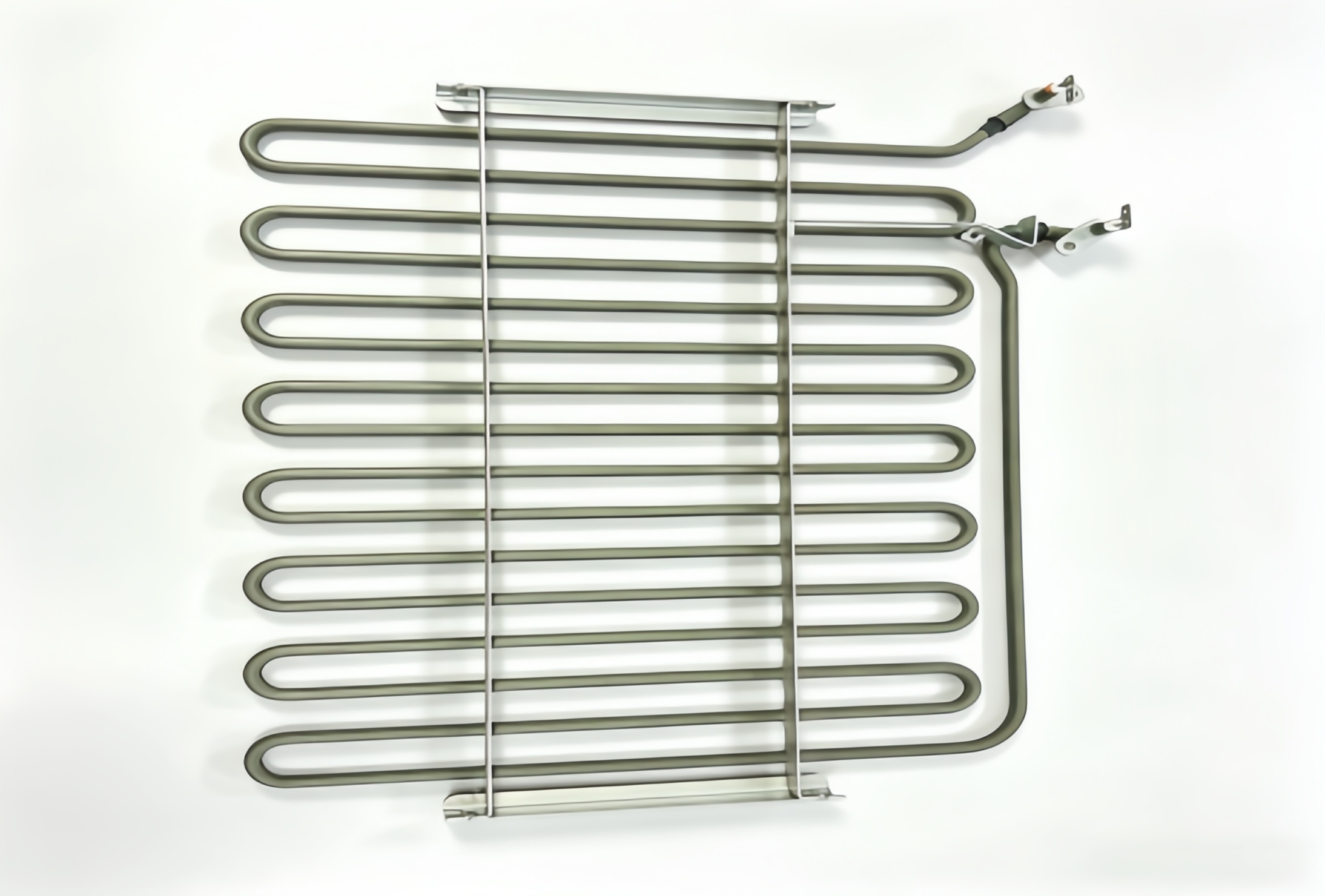

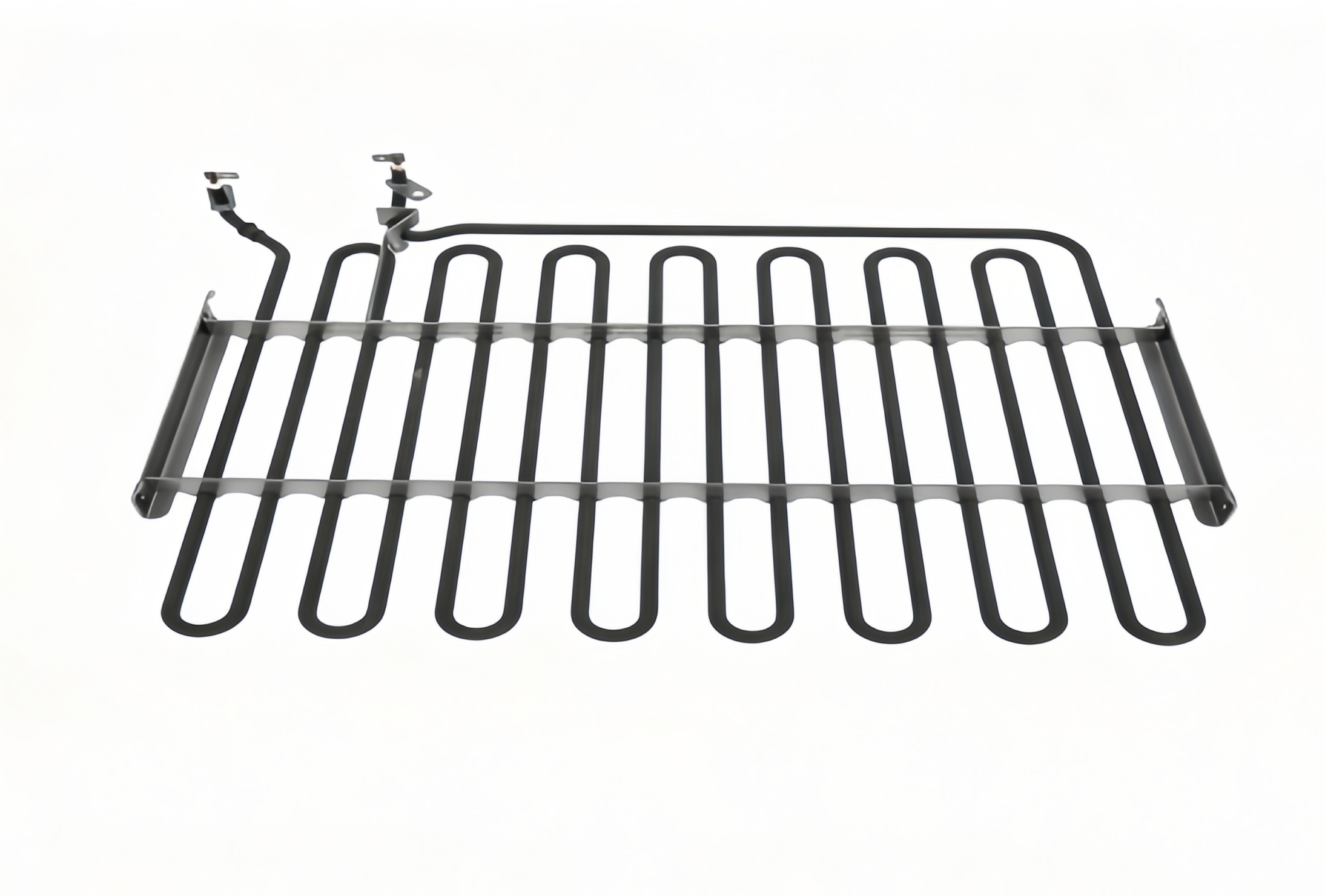

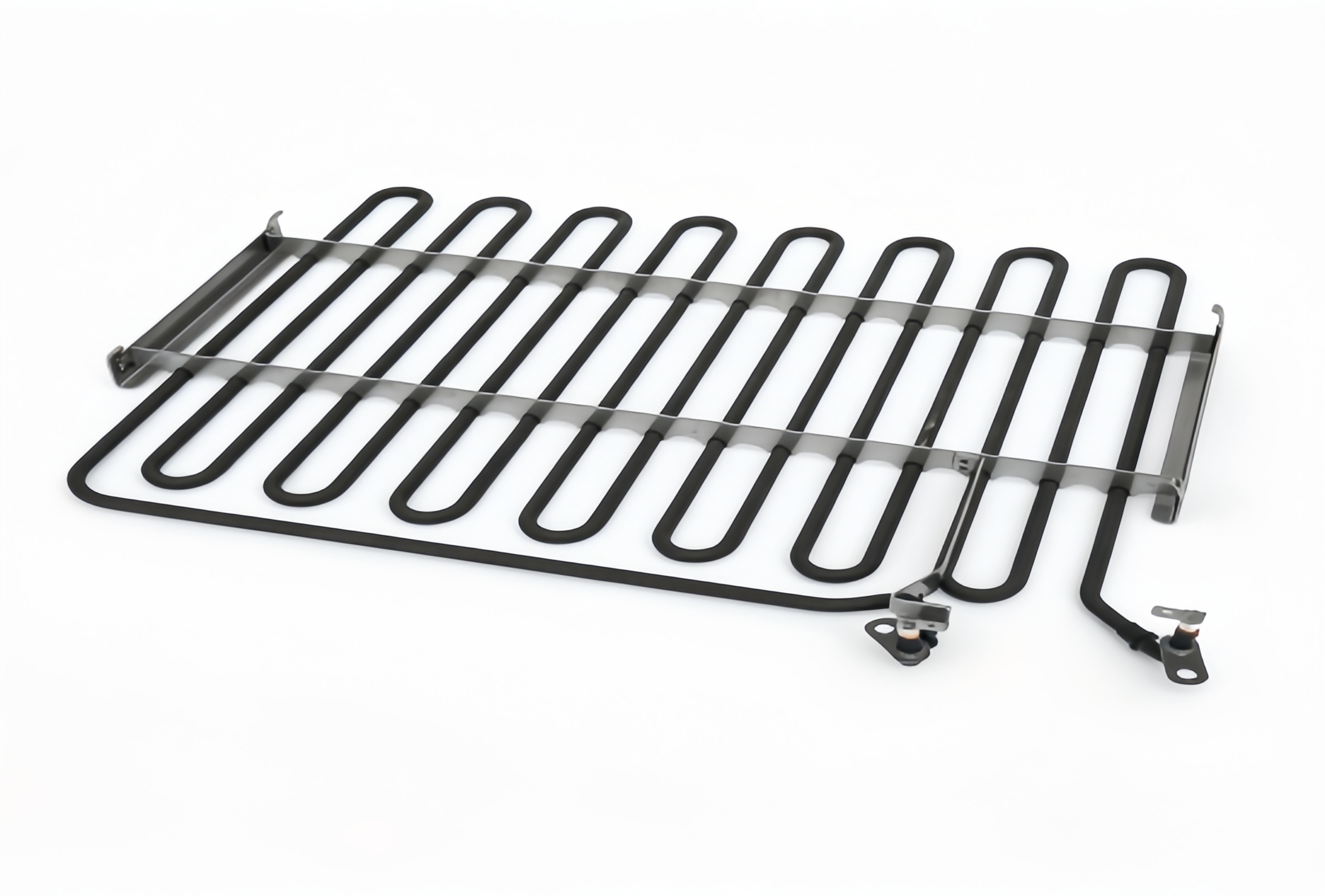

Rectangle Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This rectangular heating tube is designed for air dry‑burn applications. Built‑in metal mounting bracket reinforces the heater frame and prevents sagging. Stainless‑steel sheath, fully customizable voltage, power and dimensions for ovens and drying equipment.

Material: Tube: SUS304 / SUS316 / Incoloy 800 Frame: Stainless steel Heating wire: Nickel-chromium alloy Filler: Magnesium oxide powder Coating: High temperature black paint Terminal: Copper lugs with heat-resistant sleeves	Transport Package:Carton and Wooden Box
Form: Parallel U-loop grid tubular heater with double support rack and side mounting brackets	Specification: Surface: High temperature black anti-oxidation coating Mount: Side hanging stainless steel support frame Application: Household & small commercial electric ovens
Shape: Rectangular grid shape with multiple parallel U-bends, side hanging mounting frame	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Standard: 110V, 220V, 380V Custom voltage available	MGO: High-purity compact magnesium oxide powder
Watt: Standard: 800W–3000W Custom wattage supported	Tube Diameter: Standard: 8mm, 10mm Custom tube diameter acceptable
Product Name: Rectangle Oven Heating Element	Usage: For household electric ovens, baking roasters and small commercial ovens

Features

Specially designed for long‑time air dry‑burn working condition
Rectangular multi‑loop layout, large‑area uniform heating
Double‑side fixed metal bracket, anti‑sagging & anti‑deformation
Stainless‑steel sheath, excellent high‑temperature & oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
