Double Loop Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

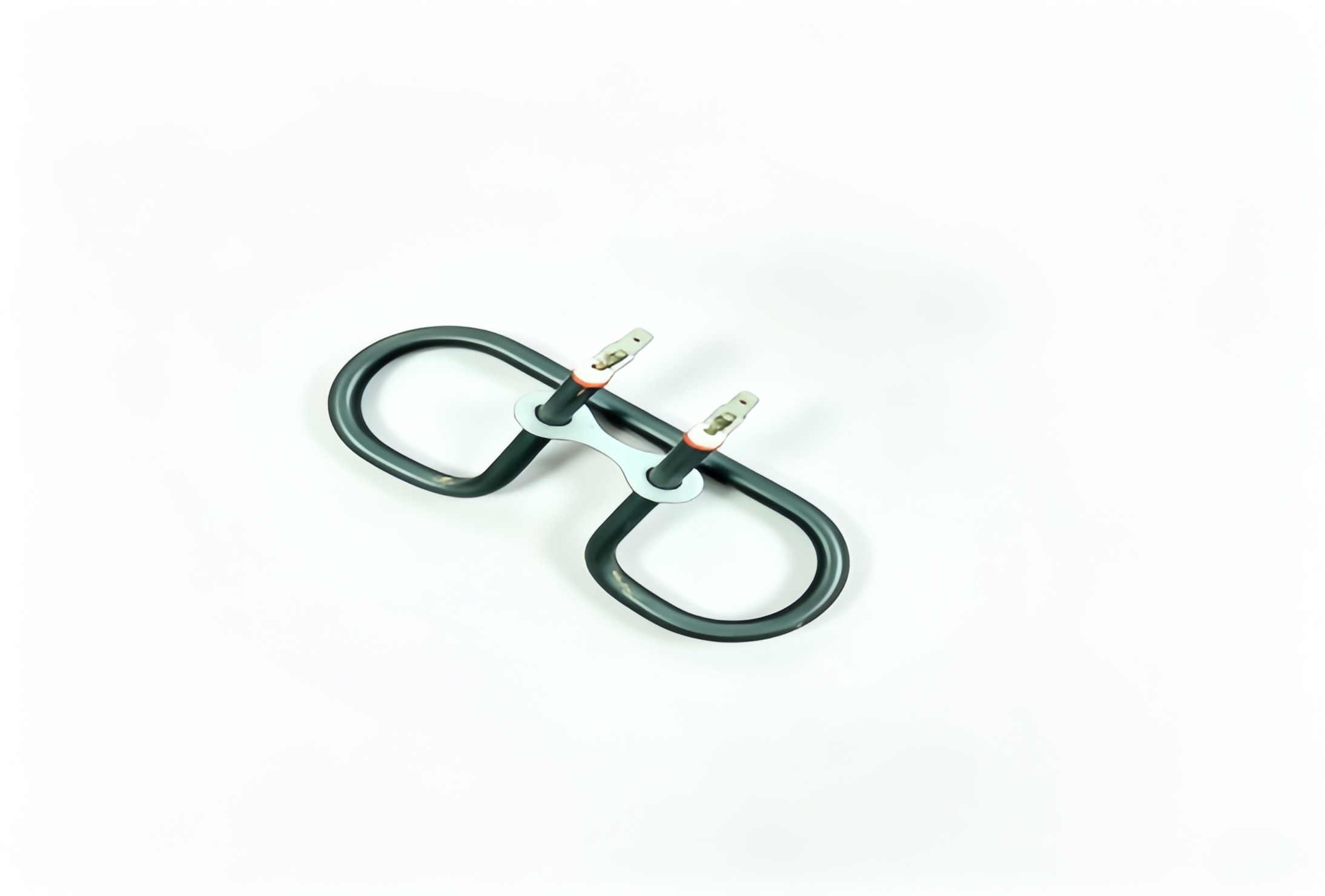

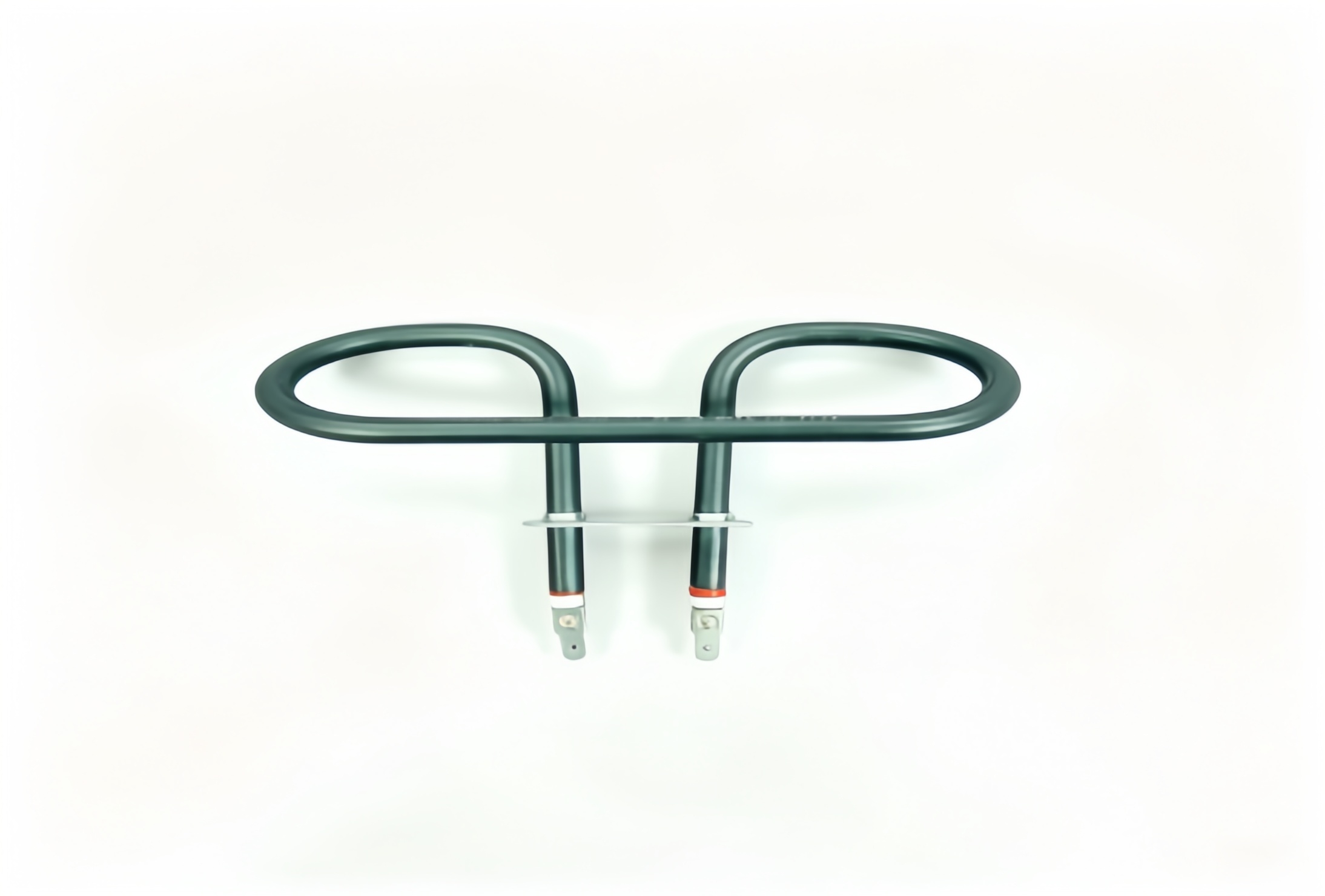

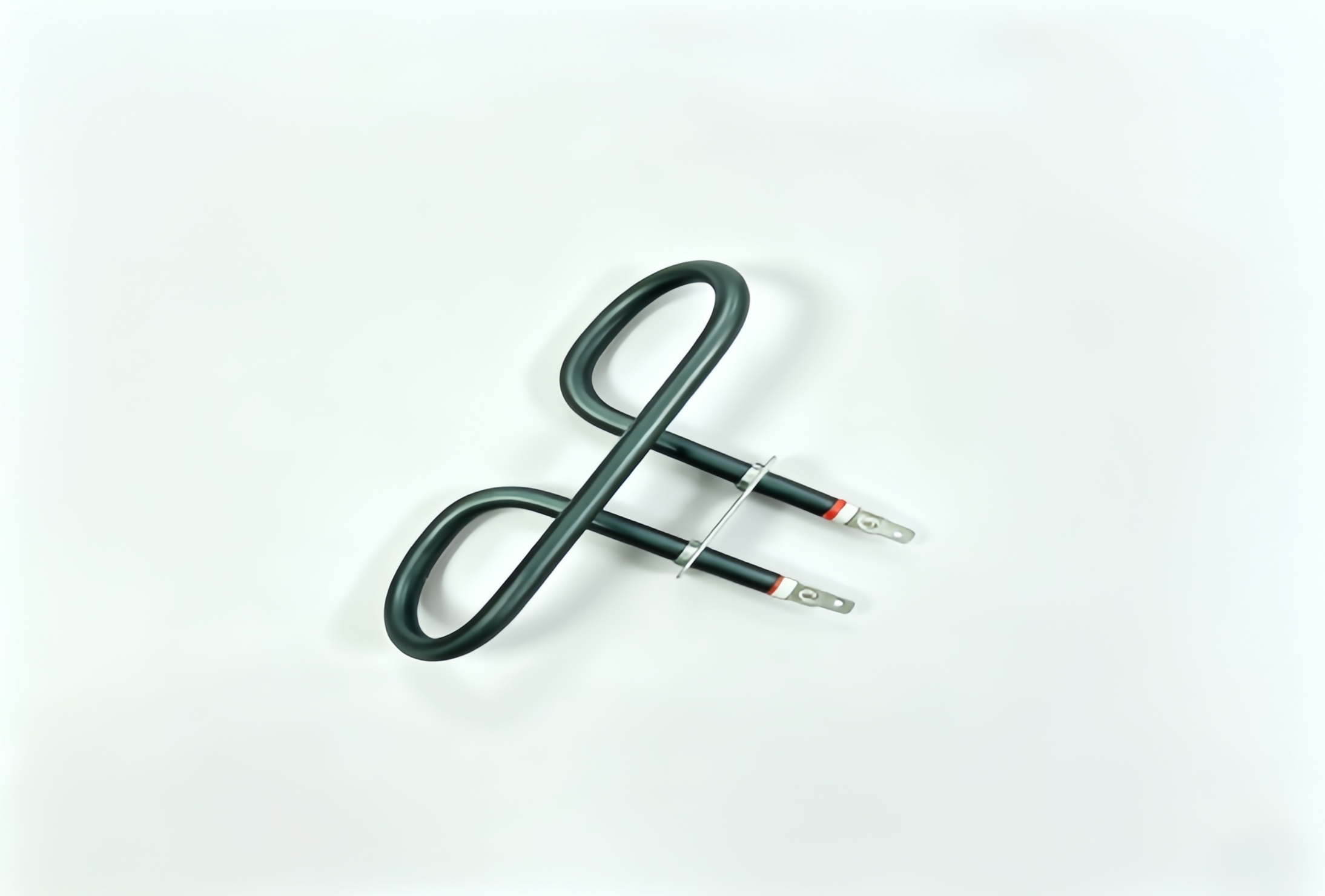

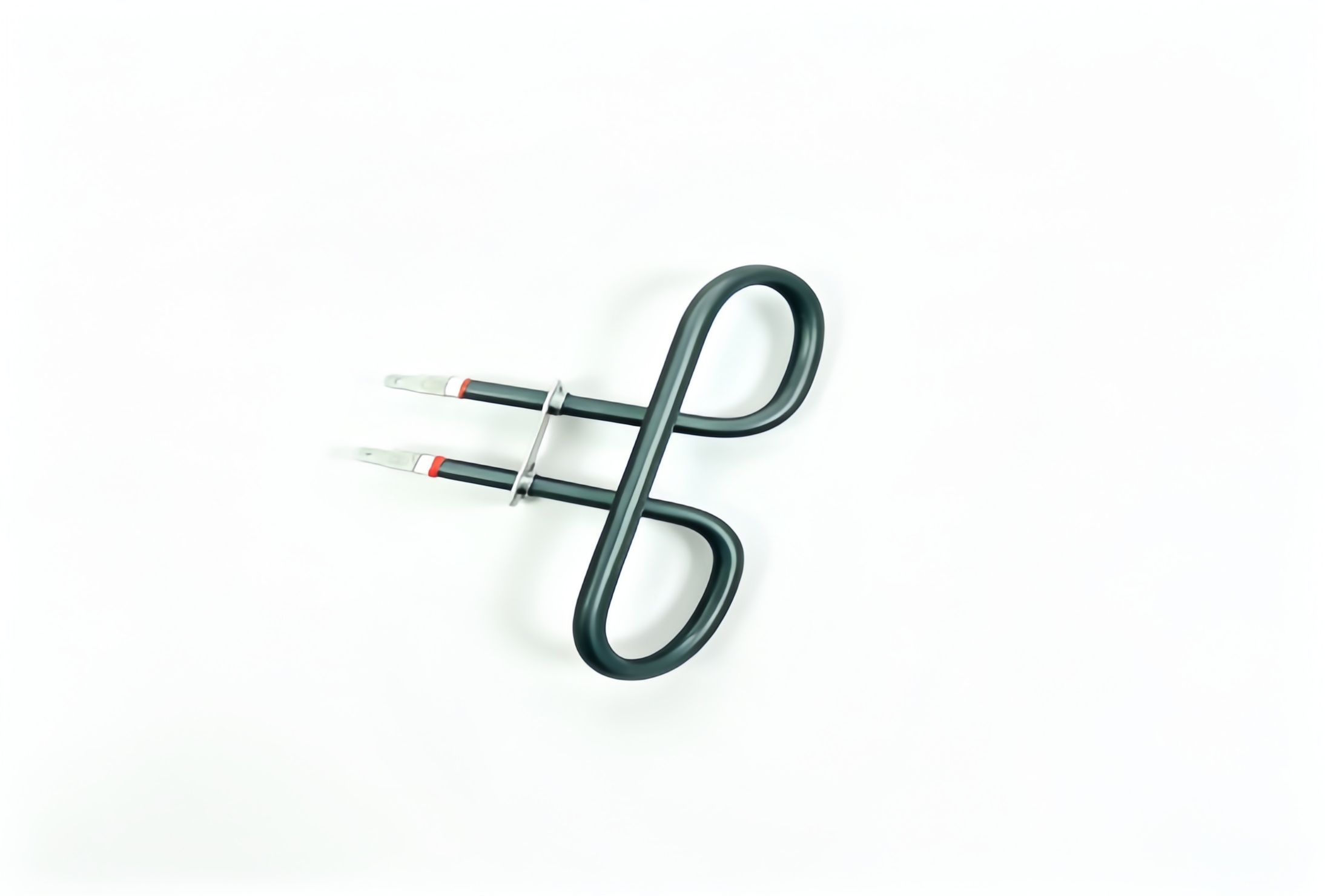

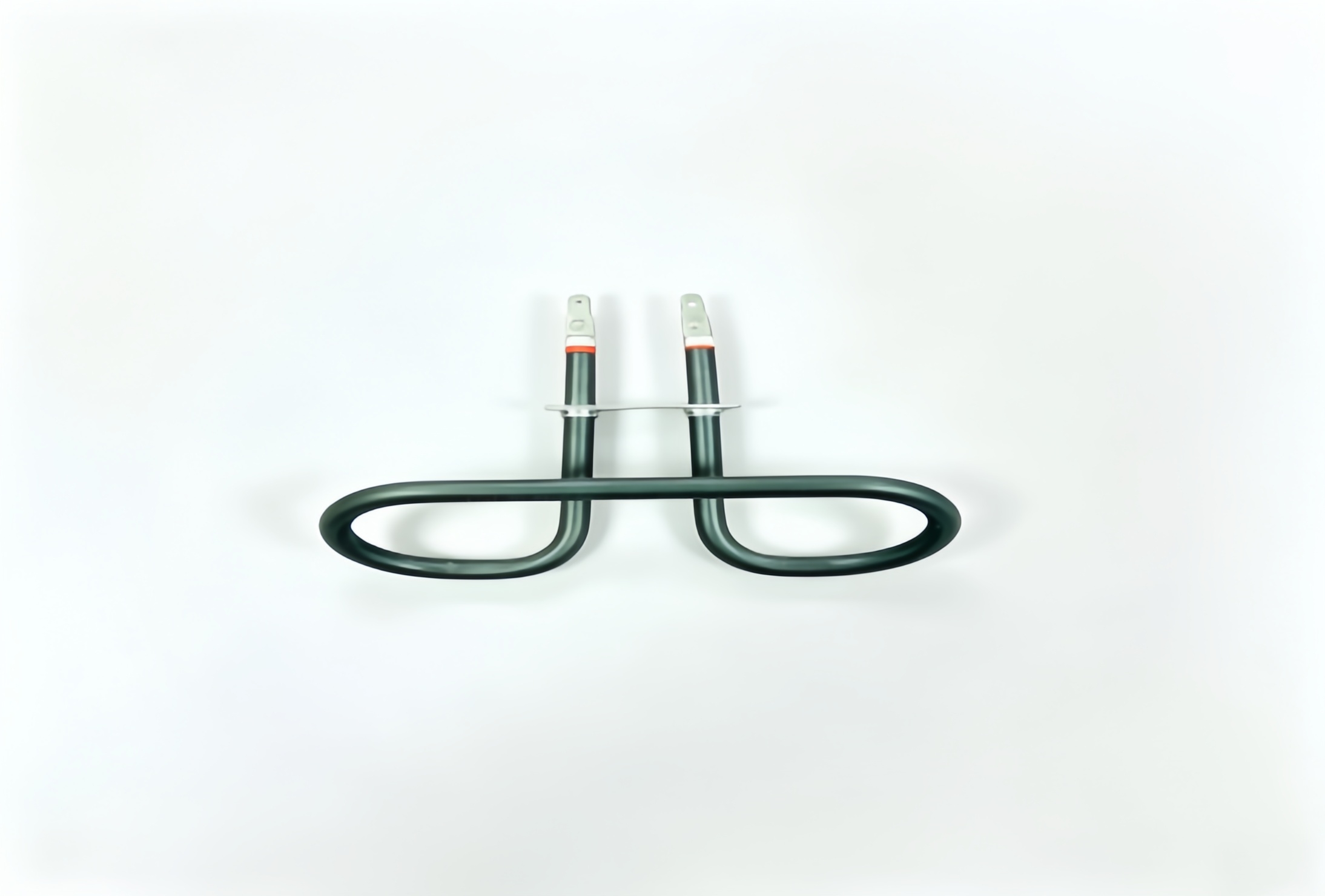

This compact double‑loop tubular heating element is designed for air dry‑burn heating inside small ovens. Equipped with a tiny fixing plate for quick installation, heating is stable and even. Custom specifications are supported

Material: Outer tube: Anti-corrosion coated metal tube Heating wire: Resistance alloy wire Insulation filler: High-purity MGO powder Fitting: Metal bracket & terminal lugs	Transport Package: Carton and Wooden Box
Form: Bent tubular heater with integrated mounting bracket	Specification: Customized
Shape: Double loop bent tubular shape	Resistance Wire: Ocr25al5 or Ni80cr20
Voltage: 110V-240V, customizable as requested	MGO: High purity magnesium oxide powder, good thermal conductivity & electrical insulation
Watt: Custom power 300W-1200W, customer-specified wattage acceptable	Tube Diameter: Standard 8-10mm, custom available
Product Name: Double Loop Oven Heating Element	Usage: For toaster, mini oven and other small home electric appliances

Features

Compact double‑loop structure, small footprint
Built‑in small fixing plate, easy mounting
Stable performance for long‑time air dry‑burn
Stainless‑steel sheath, anti‑oxidation & long service life
Flexible customization on voltage, power and size

Package delivery

Packing

Each heating element is wrapped by bubble film separately, packed in shock‑proof export cartons. Custom‑made packaging is welcomed.

Shipping

Samples delivered by DHL, FedEx, TNT. Bulk orders shipped by sea or air freight. Lead‑time depends on order quantity
