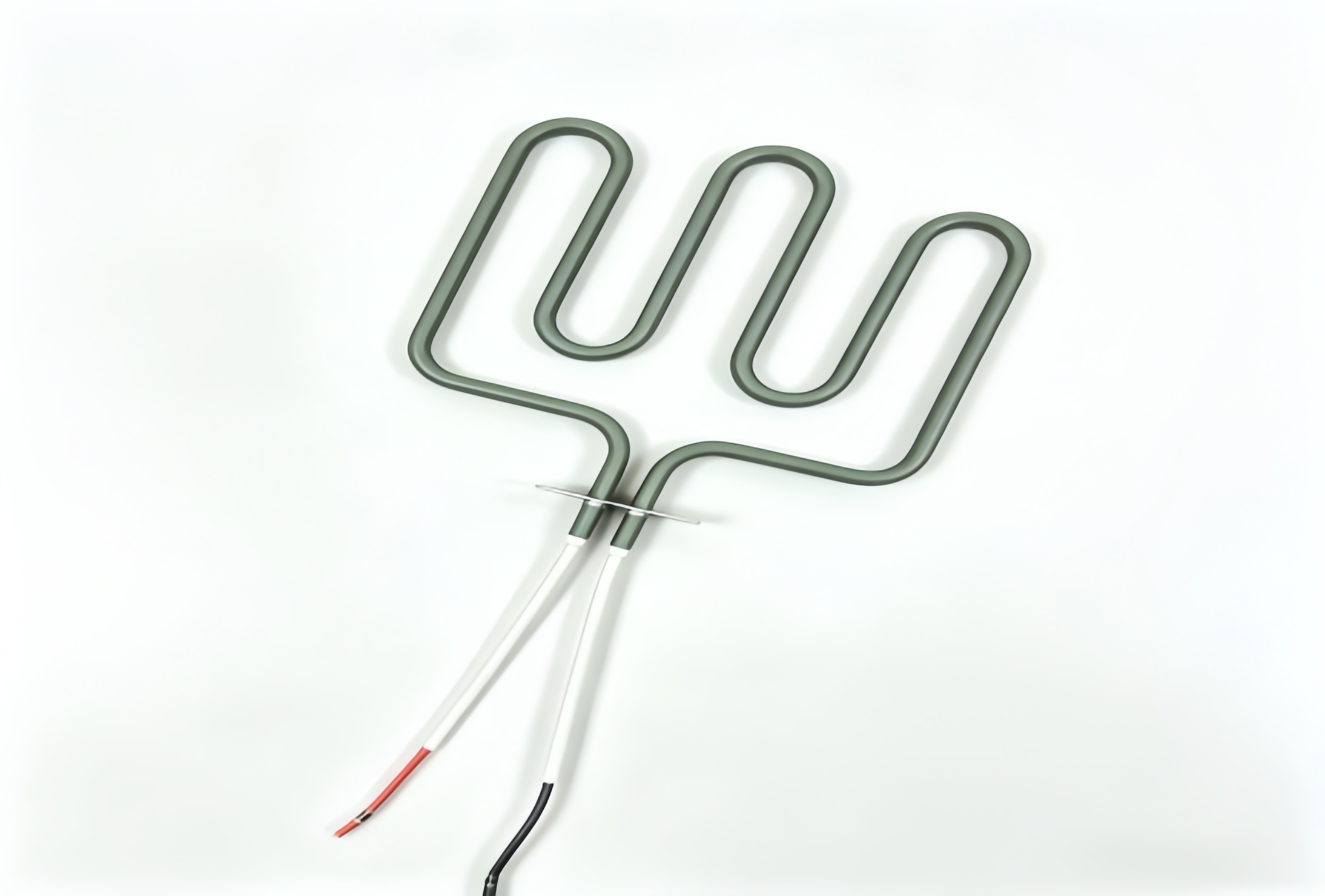

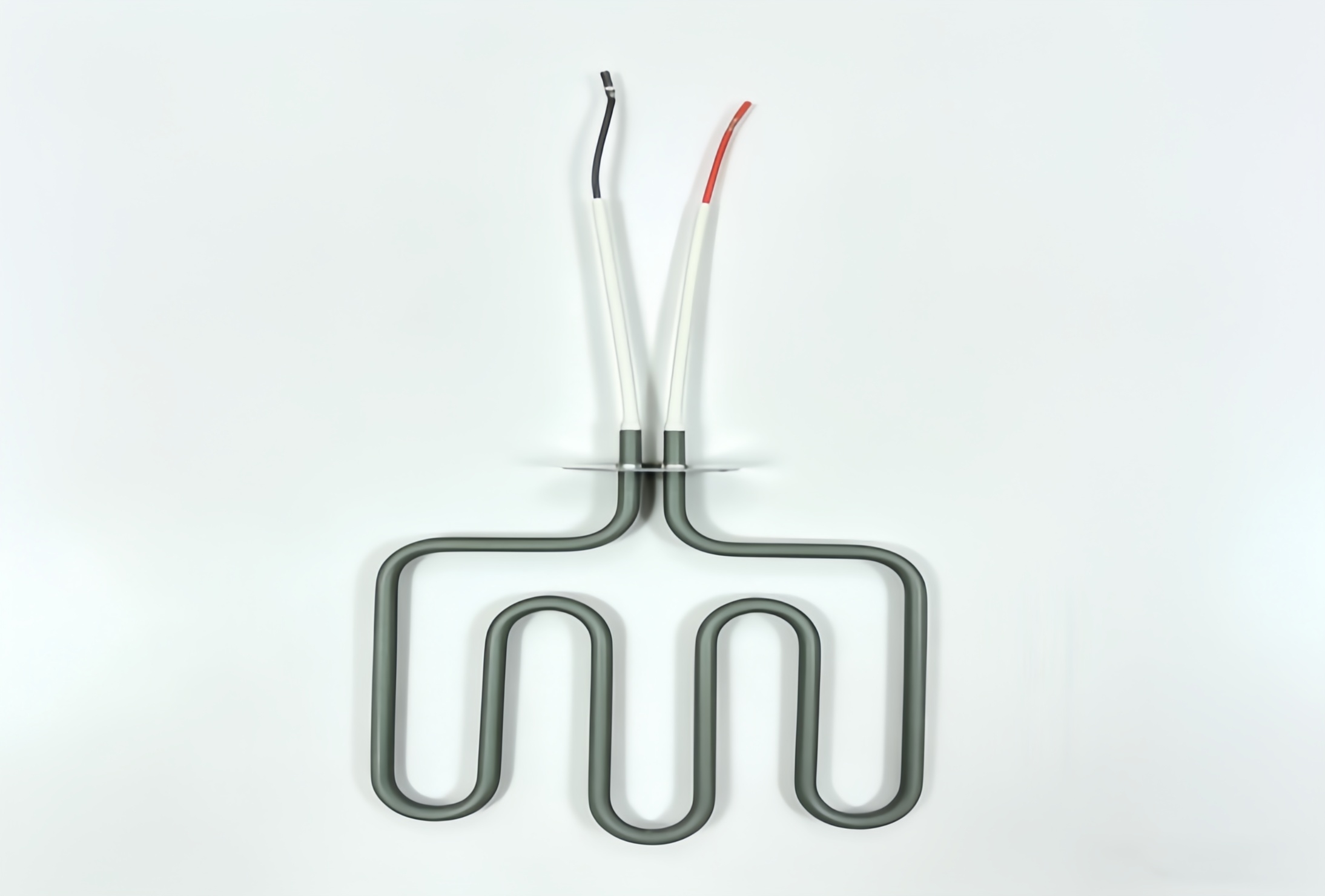

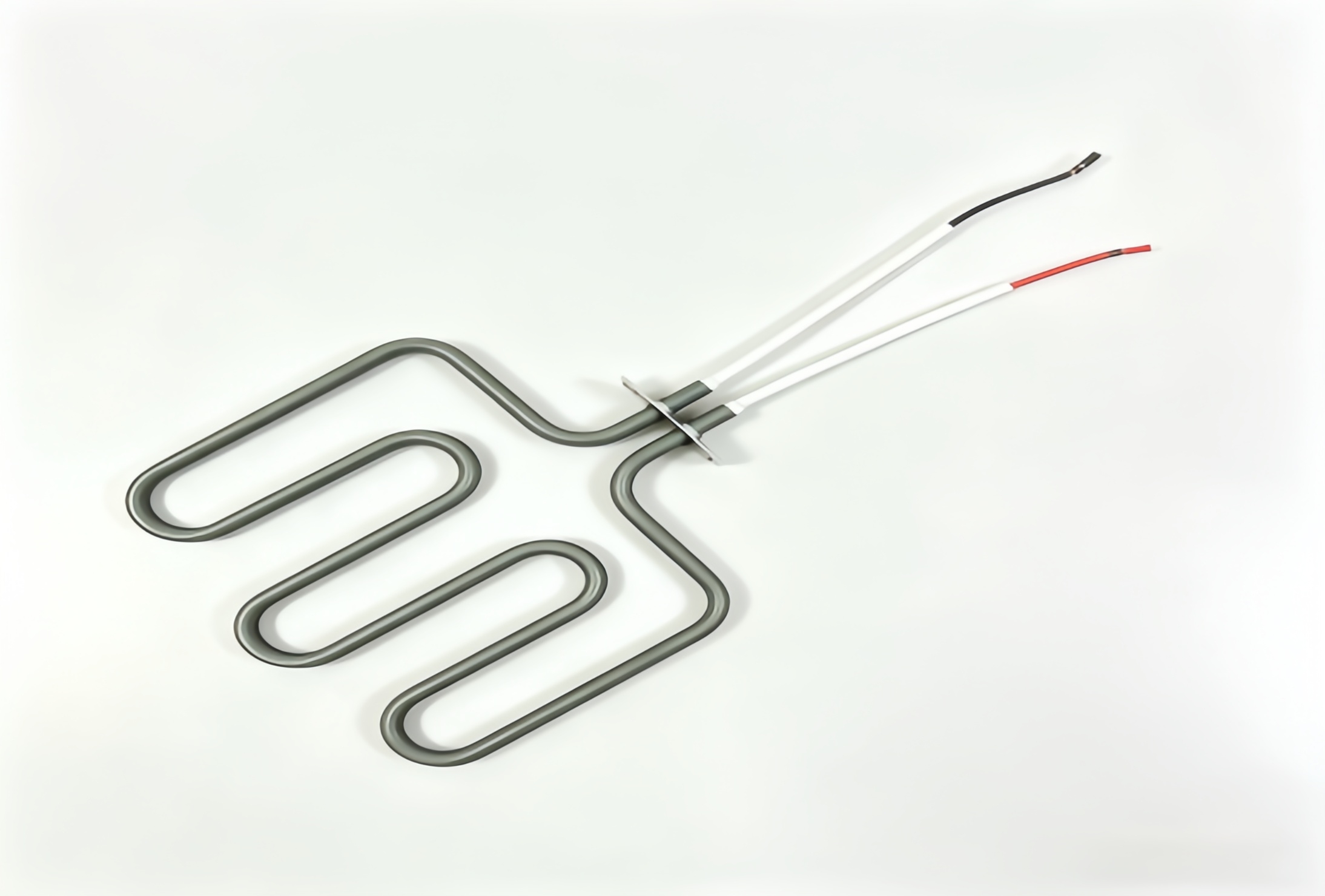

M‑Type Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This M‑shape heating tube features green high‑temperature anti‑oxidation coating, fitted with long heat‑resistant lead‑out wires for easy wiring. Stainless‑steel sheath for air dry‑burn applications, all specifications are customizable.

Material: Tube: 304 stainless steel (316 optional) Heating wire: Ni80Cr20 nickel chromium alloy Insulation: High-purity magnesium oxide powder Flange: Stainless steel plate Lead wire: High temperature silicone insulation wire	Transport Package:Carton and Wooden Box
Form: Multi-loop M/W bent tubular form with fixed metal flange & external silicone lead wires	Specification:Customized
Shape: M shape / W shape multi-loop bent tubular with fixing flange	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Custom single phase voltage: 110V, 120V, 220V, 230V, 240V, 380V	MGO: High-purity fused MgO insulating filler
Watt: 500W - 3500W, standard 1500W / 2000W / 2500W	Tube Diameter: Standard 8mm / 10mm / 12mm stainless steel tube diameter, custom sizes available
Product Name: M‑Type Oven Heating Element	Usage: Heating replacement part for electric oven, bakery machine & food dryer

Features

M‑shape 3‑loop bending design for even heat distribution
Green high‑temperature anti‑oxidation protective coating
Extended high‑resistance lead‑out wires, flexible wiring
Stainless‑steel sheath, excellent air dry‑burn performance
Fully customizable shape, wire length, voltage and power

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
