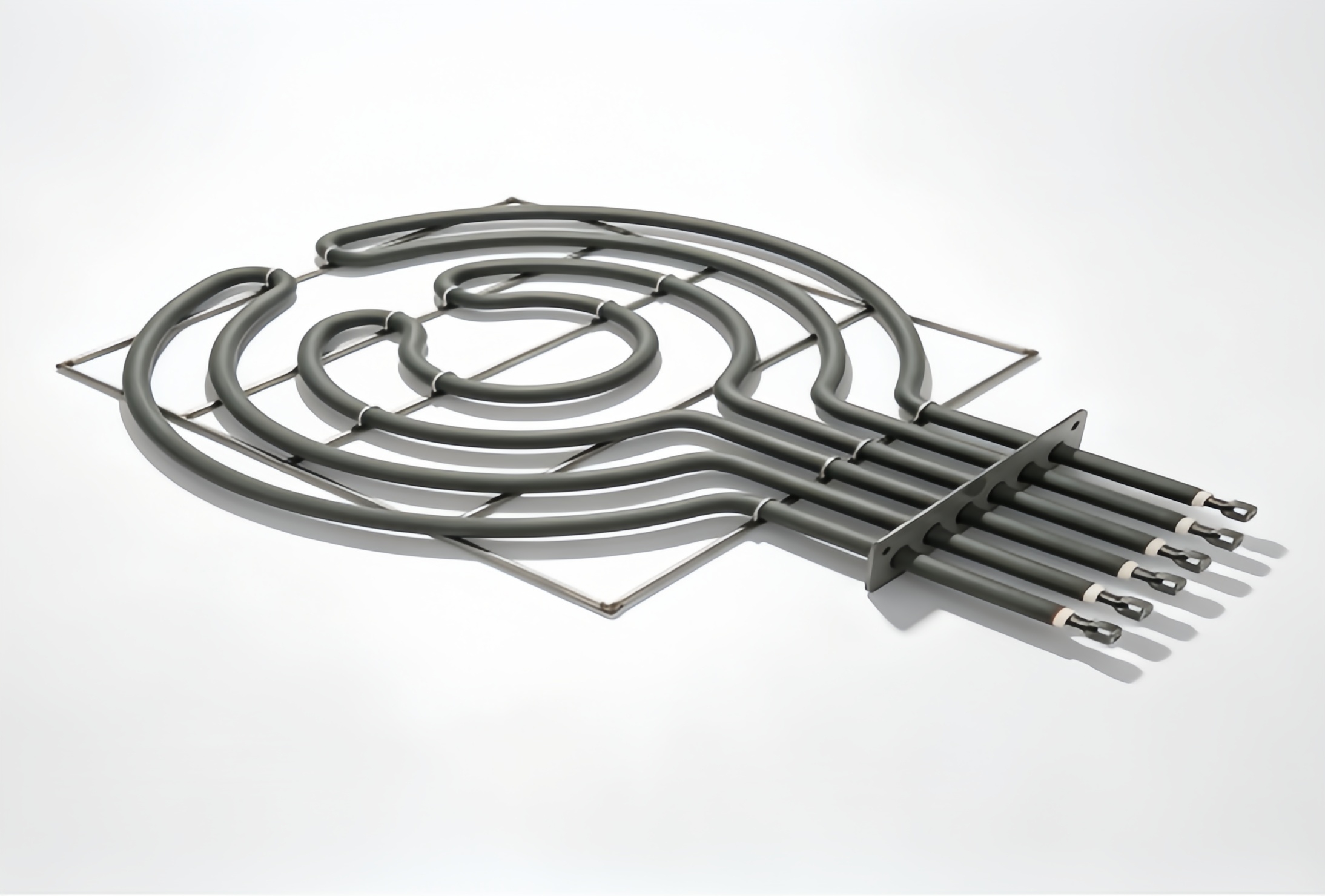

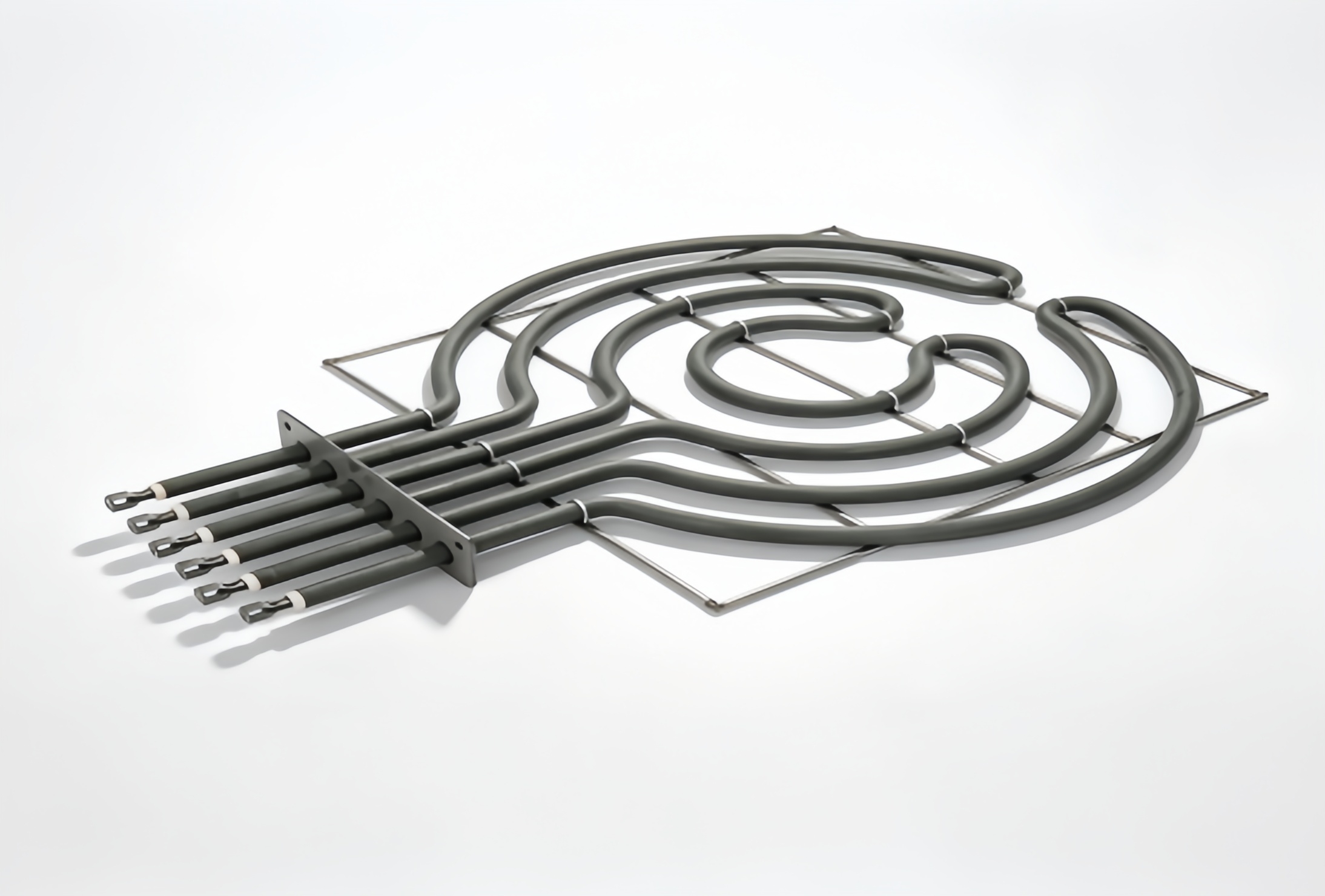

Multi‑Circular Green Coated Tubular Oven Heater With Wire Guard Frame

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This multi‑circular heating tube adopts spiral‑ring bending structure, equipped with stainless‑steel protective wire‑guard frame. Green high‑temperature anti‑oxidation coating for safe air dry‑burn inside ovens. All specifications can be customized.

Material: SUS304 tube, Ni80Cr20 wire, high purity MgO, stainless steel rack & flange, grey high temp anti-oxidation coating	Transport Package:Carton Box with Foam Shockproof Protection
Form: Multi-concentric loop tubular heater with stainless positioning rack & 6-outlet integrated flange	Specification: Tube Dia 12/14mm, total power 1000W–12000W, 110/220/230/380V, 6 independent circuits, custom loop & rack & flange size
Shape: Nested concentric multi-circle tubular shape with square stainless grid rack and rectangular six-terminal flange	MGO: High purity magnesium oxide insulating powder
Voltage: 110V/220V/230V single phase, 380V three phase, customizable	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Watt: 1000W–12000W total, each circuit wattage customizable	Tube Diameter: Multi-loop Tubular Heater for Oven with LU CE LU-ML06
Product Name: Multi‑Circular Green Coated Tubular Oven Heater With Wire Guard Frame	Usage: Industrial hot air oven, food bakery oven, hardware curing furnace, textile heat setting machine

Features

Multi‑layer concentric circular spiral, large & even heating coverage
Stainless‑steel protective wire‑guard frame, safer operation
Green high‑temperature anti‑oxidation outer coating
Multi‑terminal flange base, convenient wiring & installation
Fully customizable shape, voltage, wattage and dimensions

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton

Shipping

Sea freight, air freight or express delivery are available based on your requirement
