S‑Curve Oven Heating Tube

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

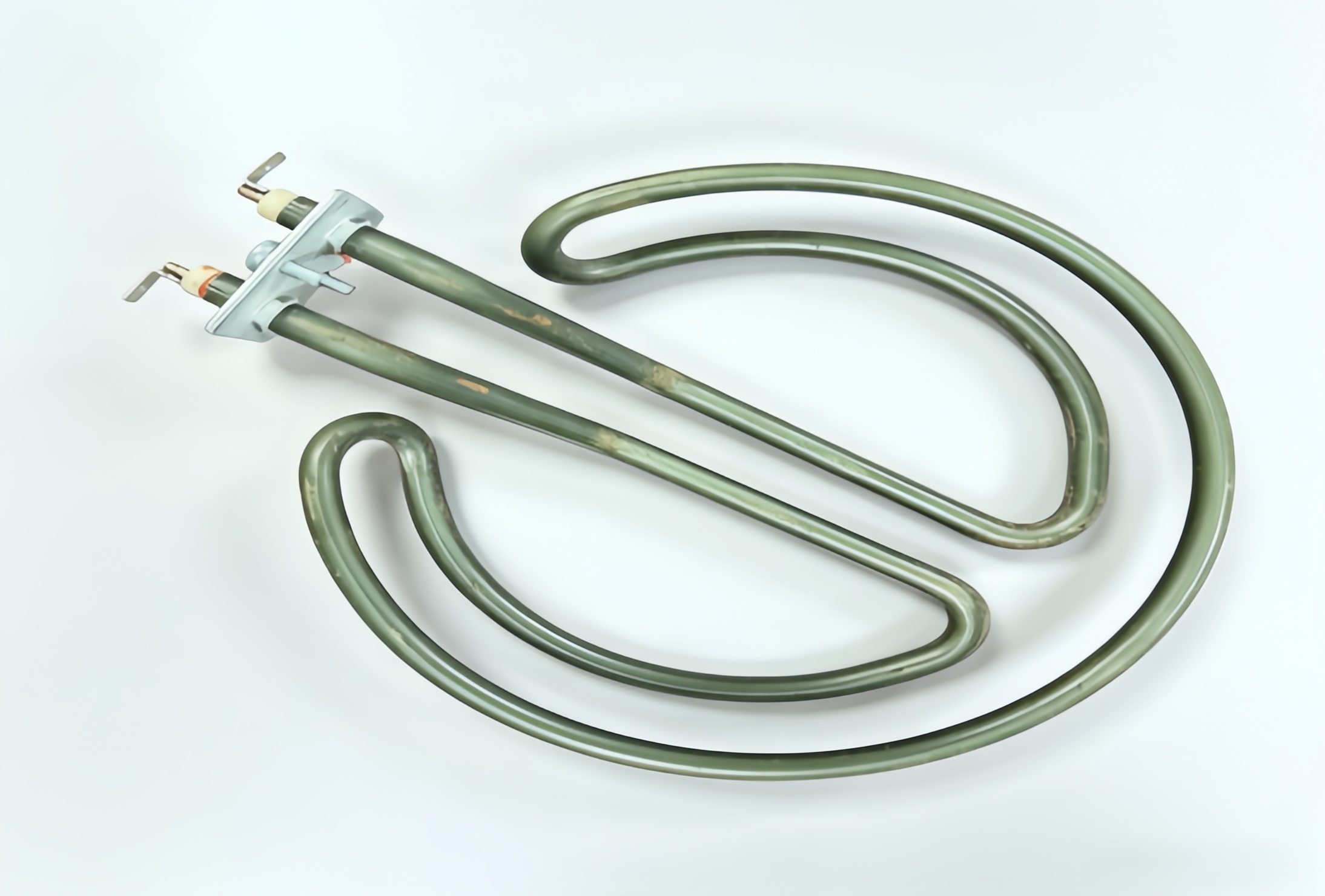

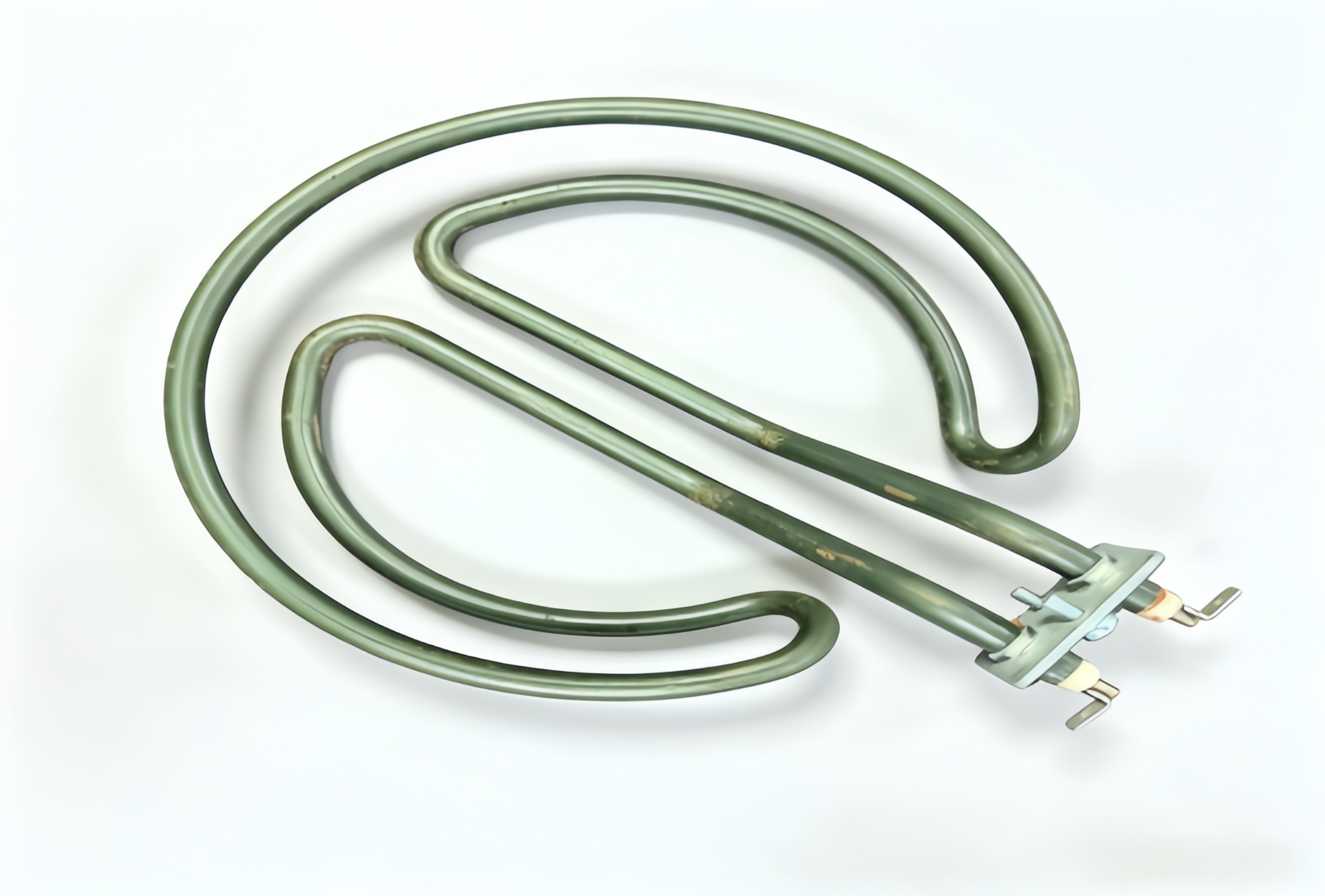

This S‑curve heating tube features green high‑temperature anti‑oxidation coating. Designed for air dry‑burn inside ovens. Stainless‑steel sheath, terminal mounting base for quick installation, all specifications can be customized.

Material: Carbon steel / 304 stainless steel tube, Ni80Cr20 wire, MGO filler, galvanized bracket, ceramic insulator	Transport Package:Carton and Wooden Box
Form: Multi-loop circular coil tubular heater with 2-terminal fixing plate	Specification: Round multi-loop coil heating tube, Φ8/10/12mm, 800W–3500W, 110V/220V/230V/380V, carbon steel/304 stainless steel, max temp 400–600℃, CE & Lu-Chiuan patented
Shape: Multi-circle circular loop coil shape	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110V / 220V / 230V / 380V,customizable	MGO: High-purity fused MgO insulating filler
Watt: Custom wattage, common options 800W–3500W	Tube Diameter: Standard 8mm / 10mm / 12mm, customized sizes available
Product Name: S‑Curve Oven Heating Tube	Usage: Dry air heating for household ovens, commercial bakery ovens, electric grills and food roasters

Features

S‑shaped semicircular bending design for wide heating coverage
Green high‑temperature anti‑oxidation surface coating
Built‑in terminal bracket for simple & firm installation
Stainless‑steel sheath, reliable air dry‑burn performance
Fully customizable shape, voltage, wattage and dimensions

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton

Shipping

Sea freight, air freight or express delivery are available based on your requirement

Download

None
