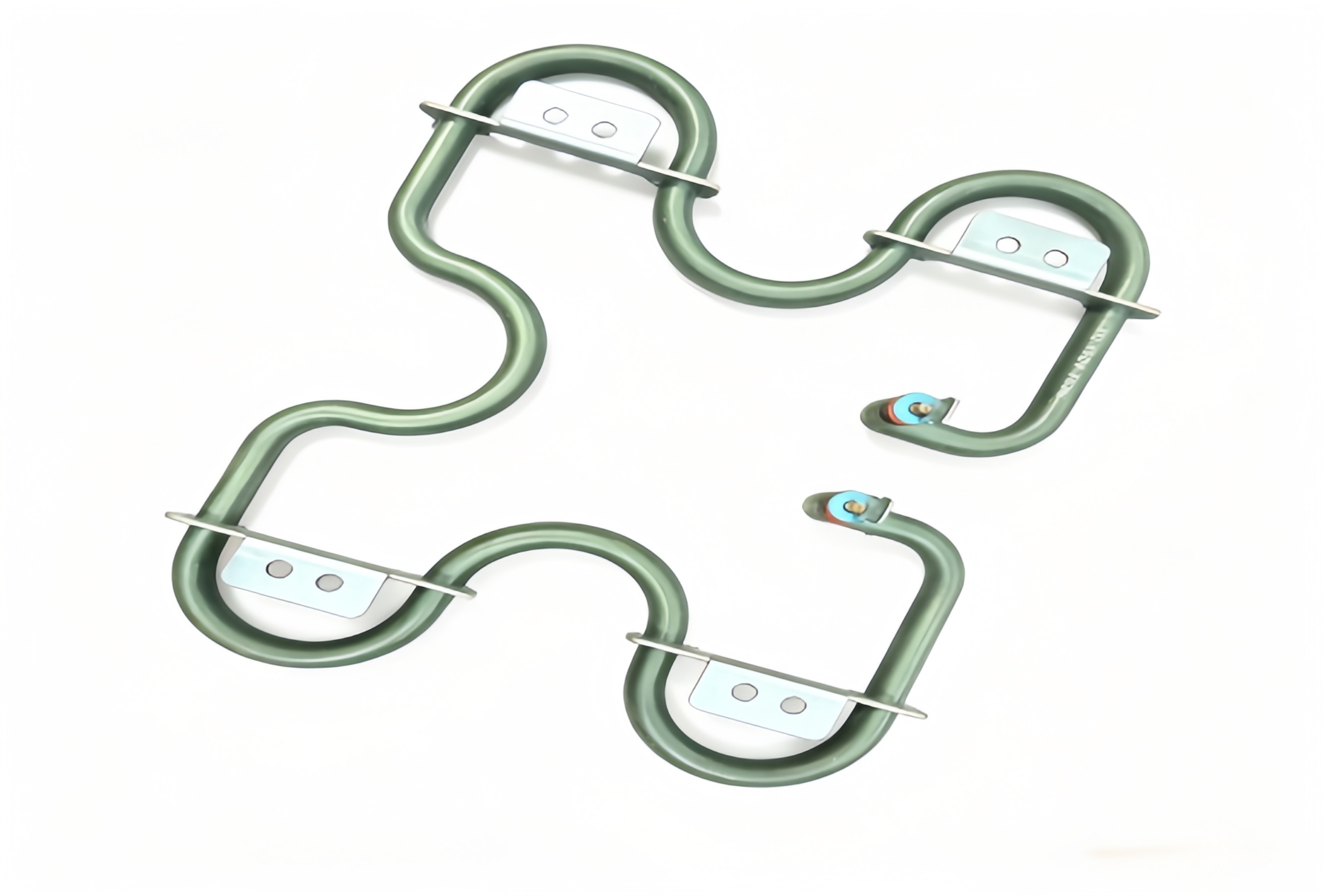

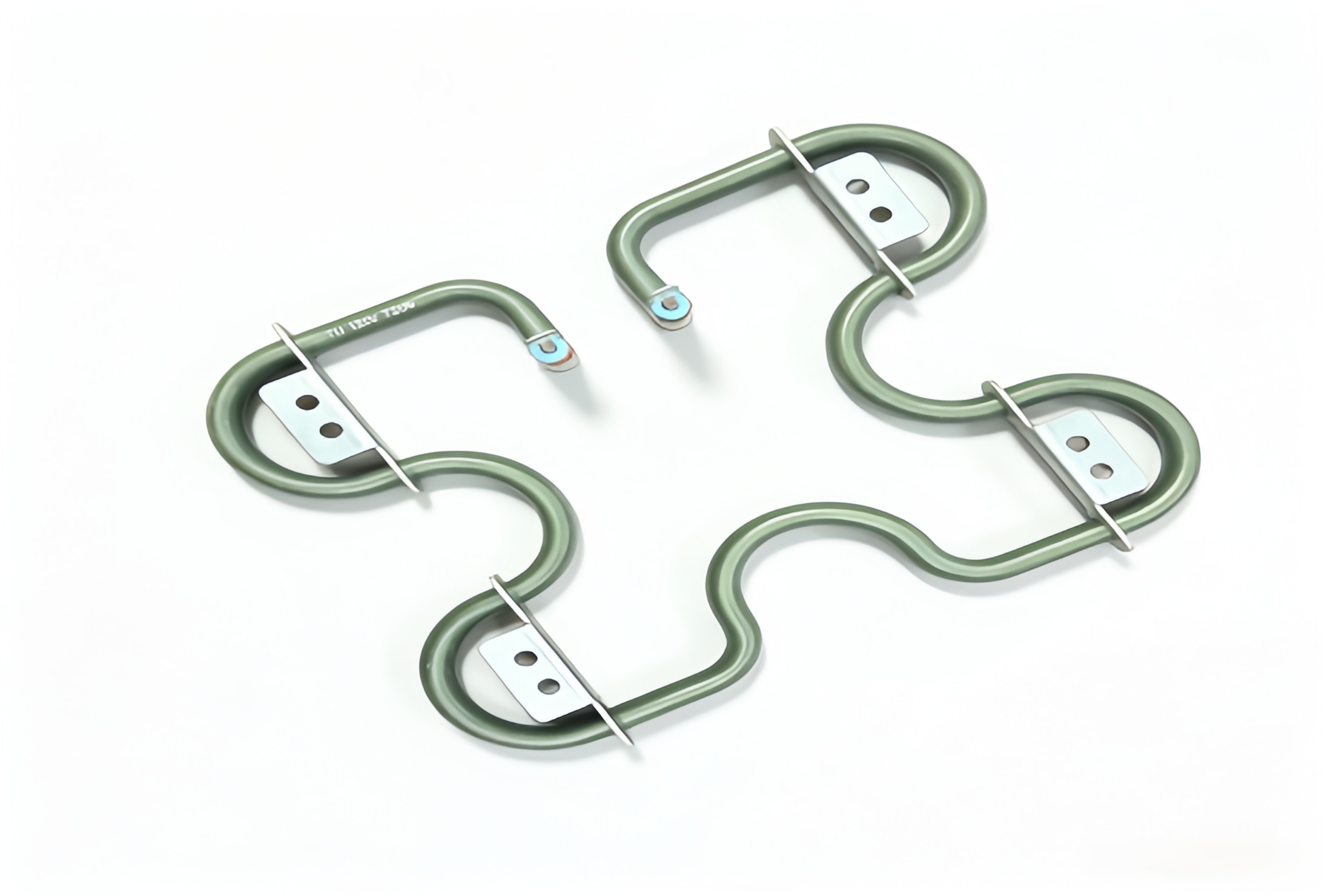

Multi‑turn Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This multi‑loop heating tube adopts high‑temperature green anti‑oxidation coating. Multiple metal mounting brackets are pre‑installed for stable fixation inside the oven. Stainless‑steel sheath for air dry‑burn use, all specifications can be customized.

Material: Carbon steel / 304 stainless steel tube, Ni80Cr20 heating wire, MGO powder, galvanized steel bracket, ceramic insulator	Transport Package:Carton and Wooden Box
Form: Wavy multi-bend seamless tubular heater with multiple welded mounting brackets	Specification: Wavy multi-bend tubular heater LC-WH01, Φ8/10/12mm, 750W-3500W, 110/220/230/380V, carbon steel/304 stainless steel, max temp 400-600℃, CE & Lu-Chiuan patent
Shape: Continuous wavy multi-bend tubular shape with multiple mounting tabs	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110V / 220V / 230V / 380V, customizable	MGO: High-purity fused MgO insulating filler
Watt: Standard wattage:750W-3500W, fully customizable	Tube Diameter: Standard 8mm / 10mm / 12mm, custom sizes available
Product Name: Multi‑turn Oven Heating Element	Usage: Dry air heating for household ovens, commercial bakery ovens, electric grills and food roasters

Features

High‑temperature green anti‑oxidation outer coating
Multi‑loop bending design, larger heating radiation area
Multiple integrated mounting brackets, firm & stable installation
Stainless‑steel sheath, excellent air dry‑burn performance
Customizable shape, voltage, power and overall dimensions

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
