Custom Wavy Oven Heating Tube

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

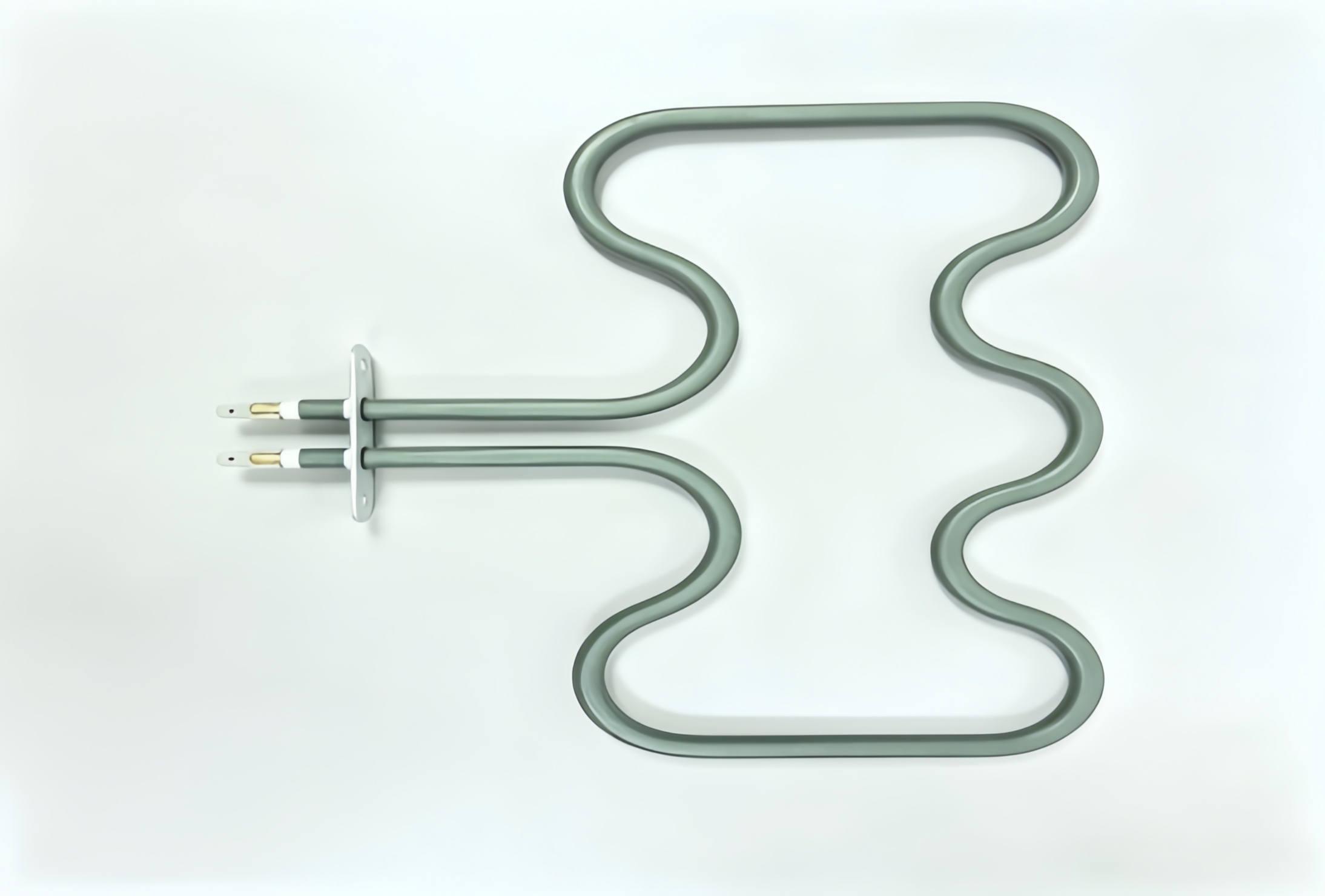

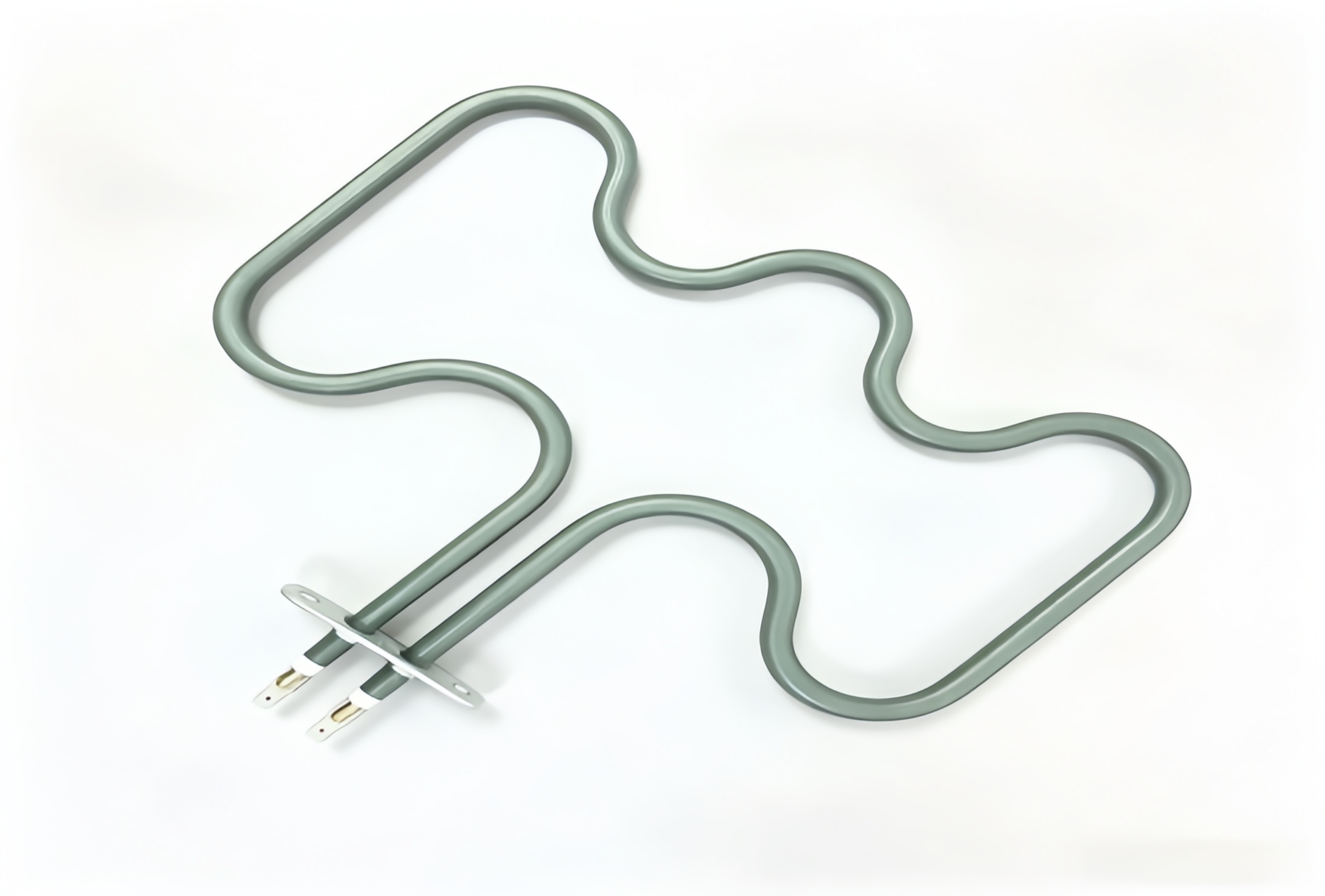

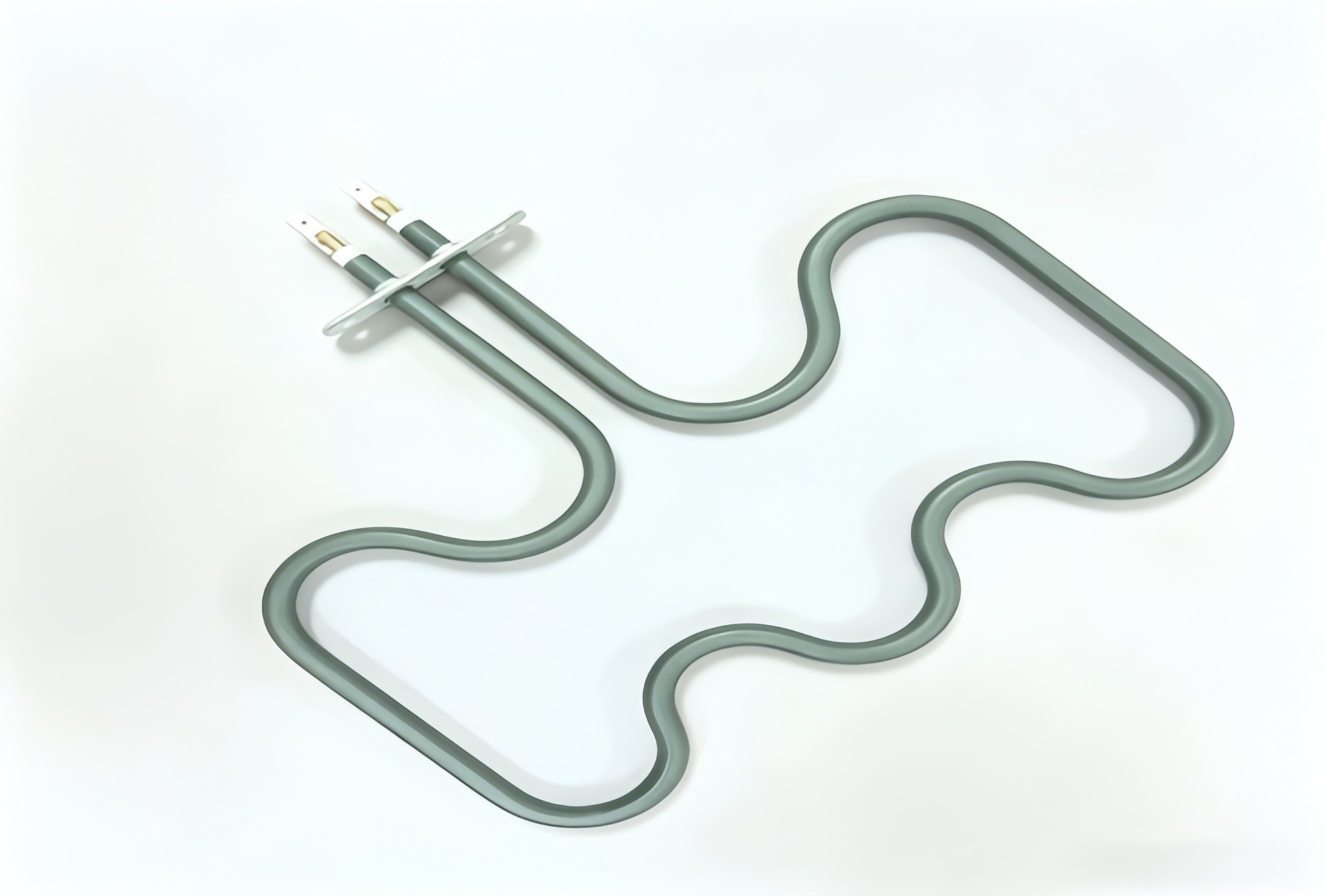

This custom wavy‑curve heating tube is coated with high‑temperature green anti‑oxidation layer. Specially bent irregular outline to fit non‑standard oven installation space. Stainless‑steel sheath for air dry‑burn, all sizes can be customized.

Material: Tube: 304 stainless steel (316 optional); Wire: Ni80Cr20; Filler: MgO powder; Flange: galvanized steel; Terminal: brass with ceramic insulator	Transport Package:Carton and Wooden Box
Form: Integrated S-wave bent tubular form with fixed flange and exposed plug terminals	Specification:Customized
Shape: Continuous S wave bent tubular shape with flat mounting flange & straight plug terminals	MGO: High-purity fused MgO insulating filler
Voltage: Custom single phase voltage: 110V, 120V, 220V, 230V, 240V, 380V	Resistance Wire:Ocr25al5 or Ni80cr20
Watt: 500W - 3500W, standard 1500W / 2000W / 2500W	Tube Diameter: Standard 8mm / 10mm / 12mm stainless steel tube diameter, custom sizes available
Product Name: Custom Wavy Oven Heating Tube	Usage: Heating replacement part for electric oven, bakery machine & food dryer

Features

Custom‑bent wavy special shape, fits irregular oven cavity
High‑temperature green anti‑oxidation surface coating
Larger radiation area for even heating distribution
Stainless‑steel sheath, stable performance for air dry‑burn
Full customization for shape, voltage, wattage & dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
