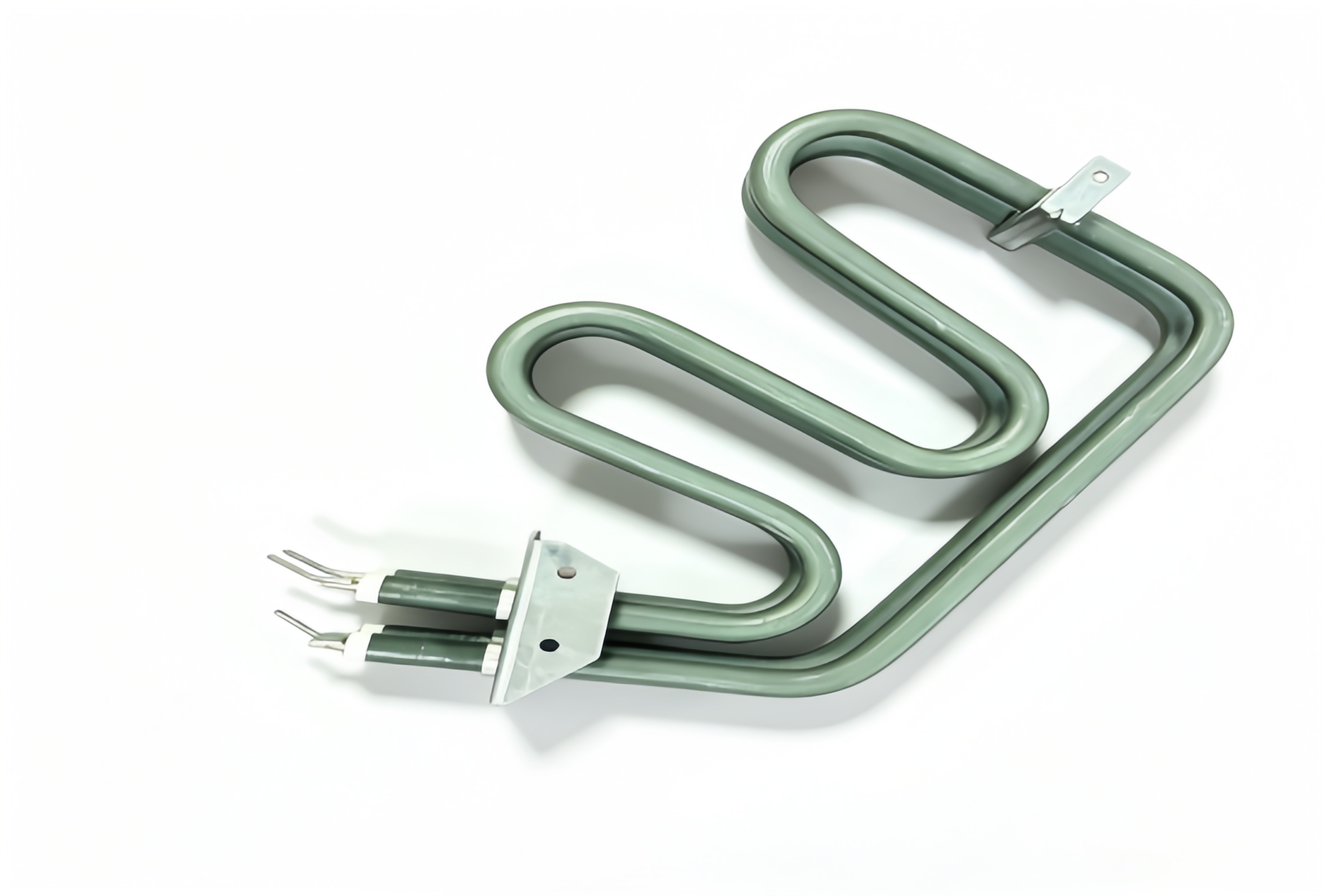

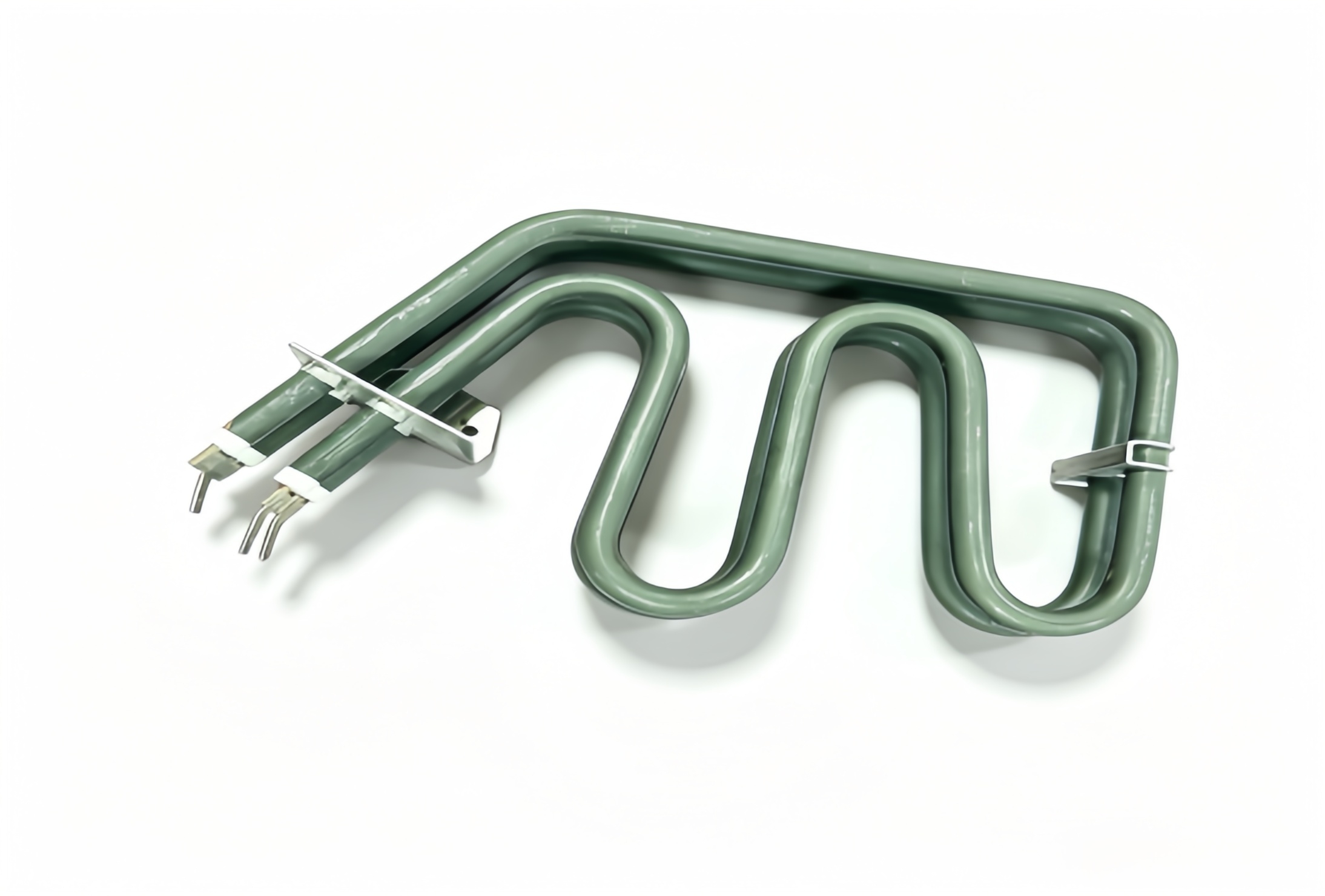

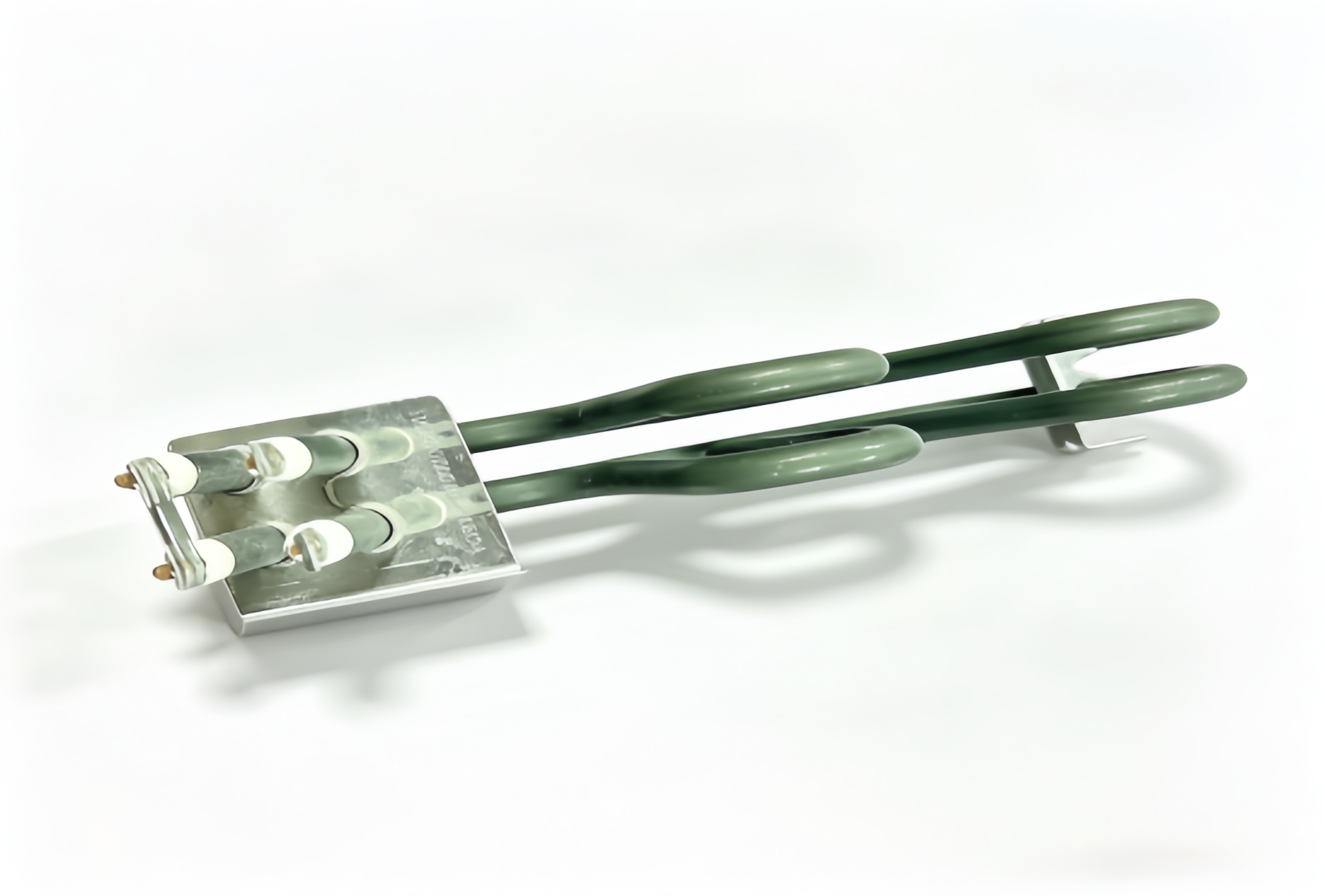

2‑turn Oven Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This two‑loop heating tube features high‑temperature green anti‑oxidation coating on the surface. Equipped with mounting bracket for simple installation. Designed for air dry‑burn heating in ovens, stainless‑steel inner tube, all specifications can be customized.

Material: Outer Tube: Enamel coated stainless steel tube Insulation: MgO (Magnesium Oxide) powder Resistance Wire: Alloy heating wire (Ni-Cr / FeCrAl alloy) Bracket & Fittings: Metal carbon steel / stainless steel Terminals: Brass terminals	Transport Package:Carton Box with Foam Shockproof Protection
Form: W/M bent tubular dry-firing heating element with fixed mounting bracket and pin terminals	Specification: W/M shape enamel coated stainless steel tubular heater, AC 220V, customizable wattage (1500W/2000W/3000W), common tube diameter 8mm/10mm, MgO insulation, with fixed mounting bracket, dry air heating only
Shape: W / M shape bent tubular shape with mounting bracket	Trademark:Lu-chiuan
Voltage: Rated Voltage: AC 220V (customizable 110V, 380V, etc.)	MGO: MgO (Magnesium Oxide) Powder, high-purity magnesium oxide insulation
Watt: Rated Wattage: Customizable (common options: 1500W / 2000W / 3000W)	Resistance Wire: High-temperature alloy resistance wire (Ni-Cr / FeCrAl alloy), good thermal stability, long service life for dry heating
Product Name: 2‑turn Oven Heating Element	Tube Diameter: Custom (Common: 8mm / 10mm)

Features

High‑temperature resistant green anti‑oxidation coating
2‑loop W‑shaped design, uniform heat radiation
Built‑in mounting bracket, convenient & firm installation
Stainless‑steel inner sheath, reliable dry‑burn performance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.

Download

None
