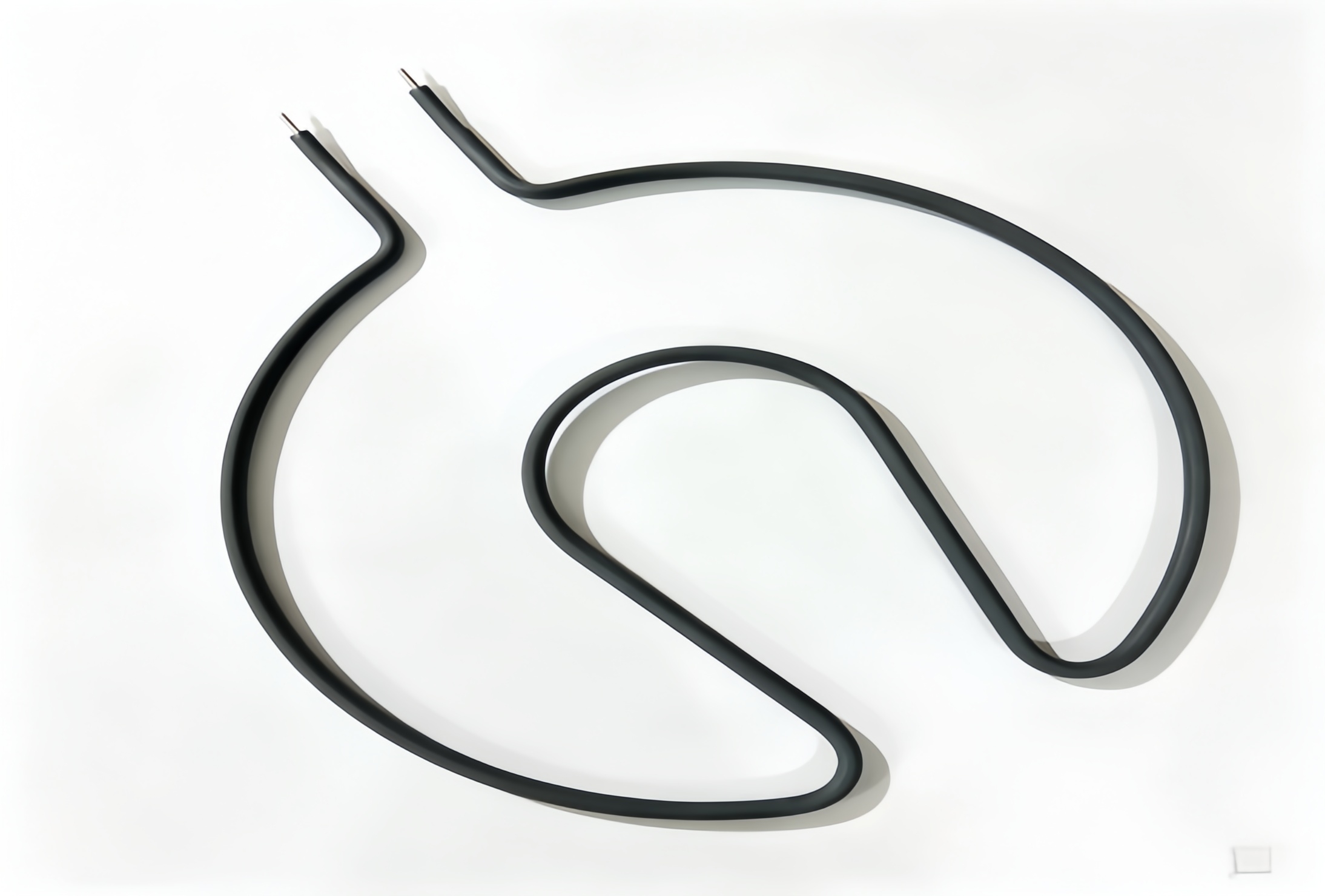

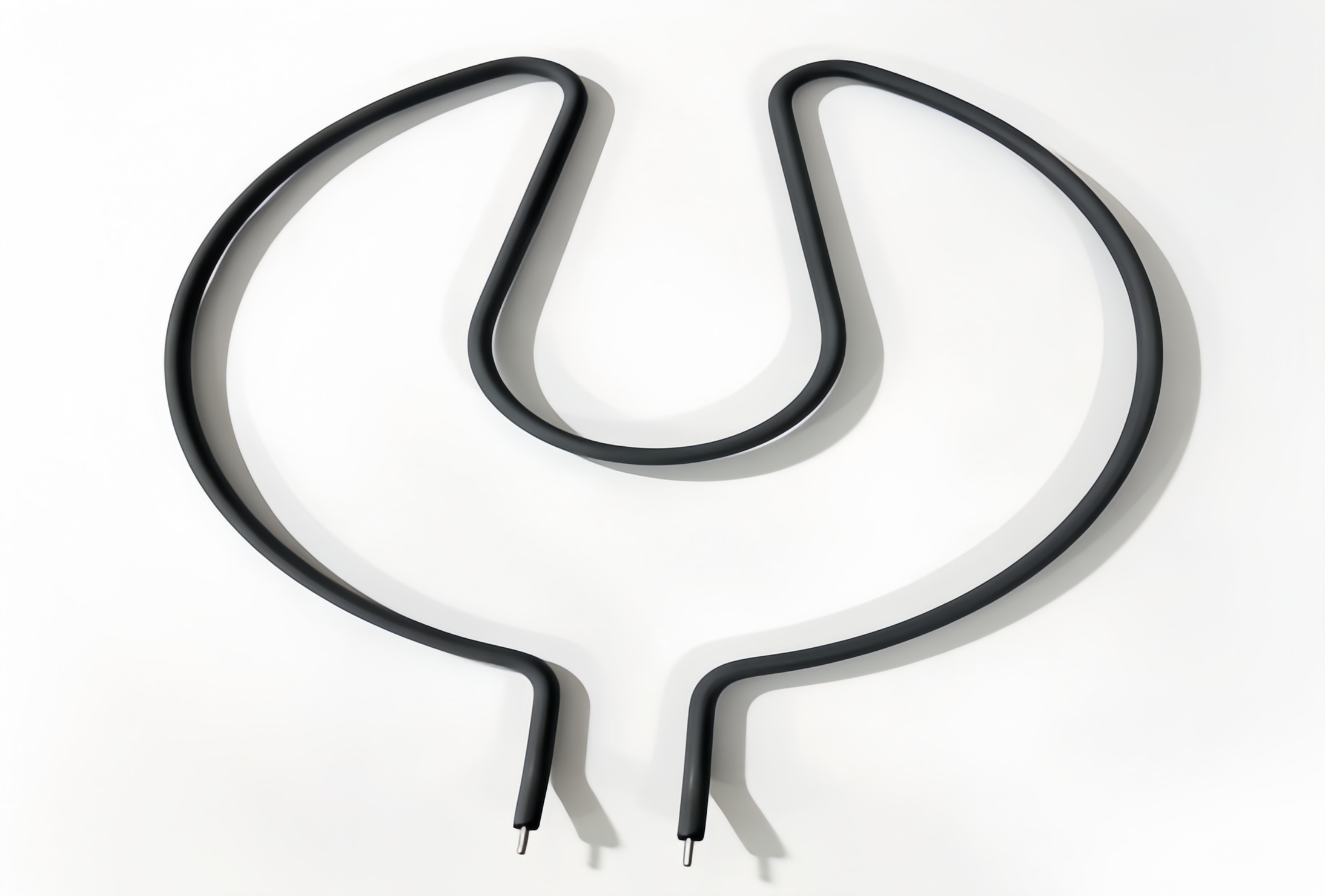

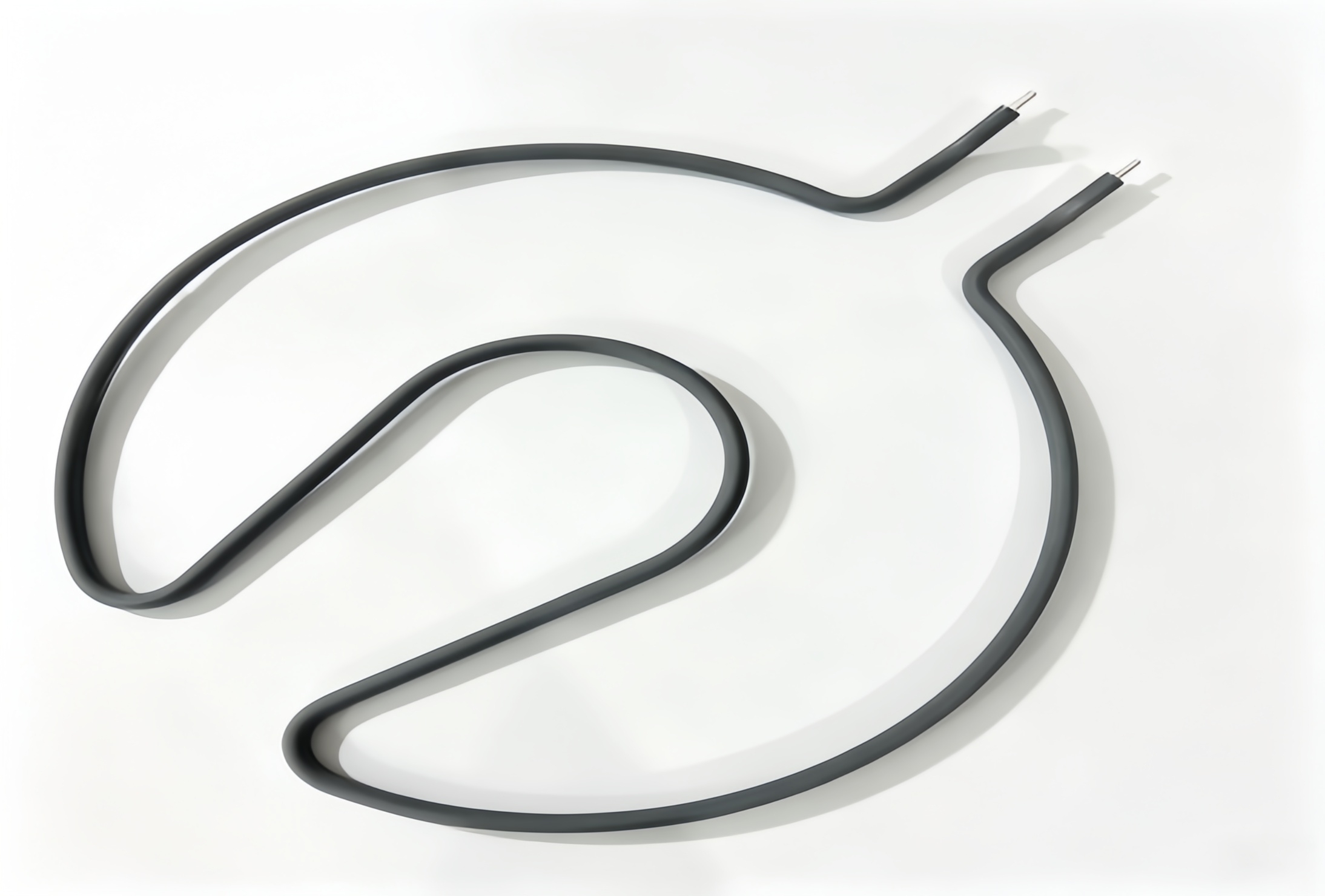

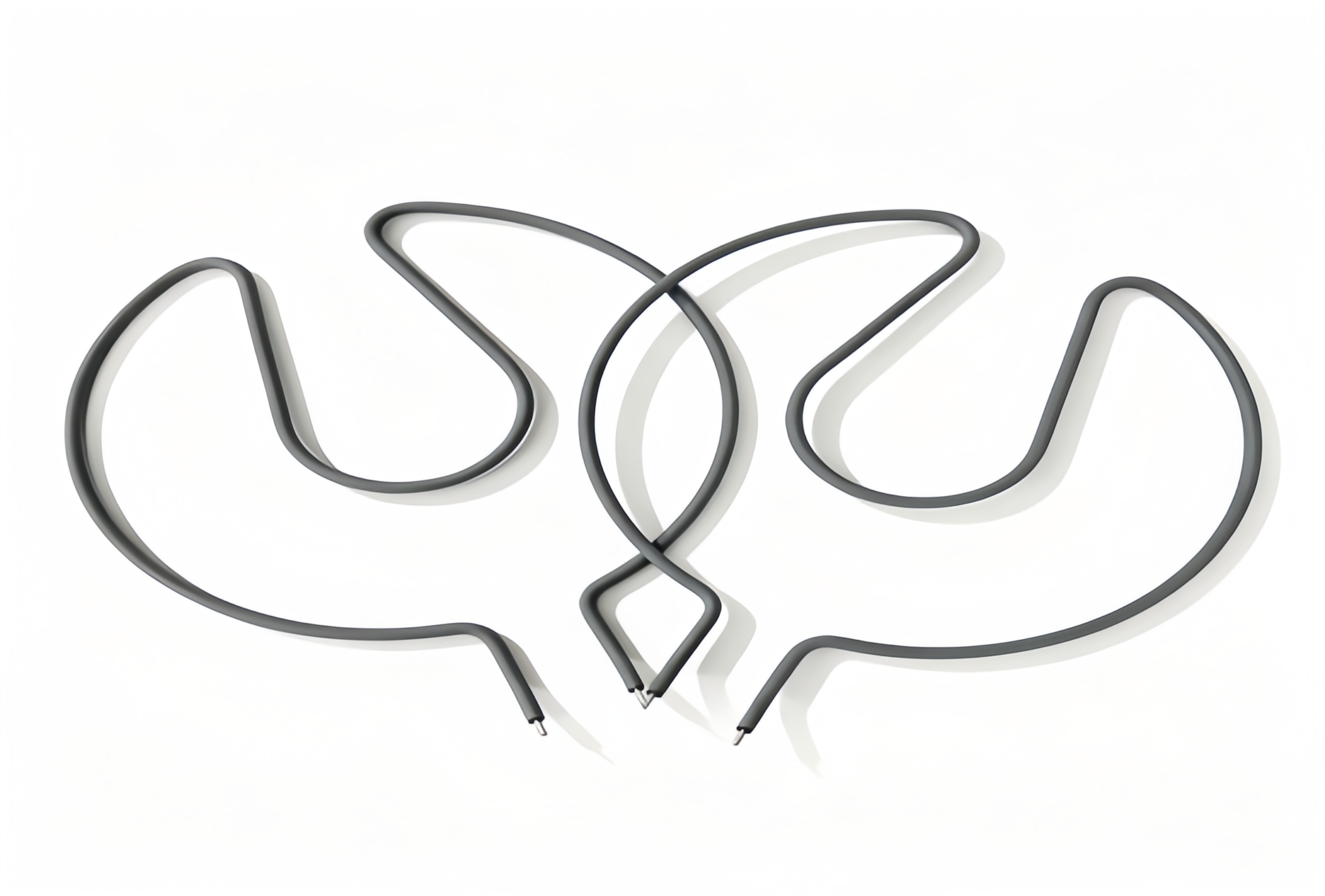

Black Coated Curved Dry‑burn Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This black‑coated curved‑loop tubular heater is designed for air dry‑burn applications. Equipped with pin terminals for fast wiring, it delivers large‑area even heat. All specifications can be customized.

Material: Outer tube: Stainless steel with black oxidation coating; Heating wire: Nickel-chromium alloy; Insulation filler: High-purity magnesium oxide	Transport Package:Carton Box with Foam Shockproof Protection
Form: Bent tubular heating element with pin terminals	Specification: Voltage, wattage, tube diameter, circular bending size and pin-terminal length can be fully customized
Shape: Circular ring-bent shape with two straight pin terminals	Resistance Wire: Cr20Ni80 Nickel-chromium alloy heating wire
Voltage: Working voltage can be customized as your requirement, available options: 110V, 220V, 230V, 380V.	MGO: High purity magnesium oxide insulating powder
Watt: Heating power is customizable according to your requirements	Tube Diameter: Tube diameter can be selected and customized as required
Product Name: Black Coated Curved Dry‑burn Tubular Heater	Usage: Suitable for oven, food dryer and other industrial dry-burn air-heating equipment

Features

Black high‑temperature coating, excellent oxidation resistance
Curved loop design, wide‑range and uniform heating
Pin‑type terminals, convenient and quick wiring
Stable performance under long‑term air dry‑burn condition
Fully customizable bending shape, voltage and power

Package delivery

Packing

Each heating element is wrapped by bubble film separately, packed in shock‑proof export cartons. Custom‑made packaging is welcomed

Shipping

Samples delivered by DHL, FedEx, TNT. Bulk orders shipped by sea or air freight. Lead‑time depends on order quantity
