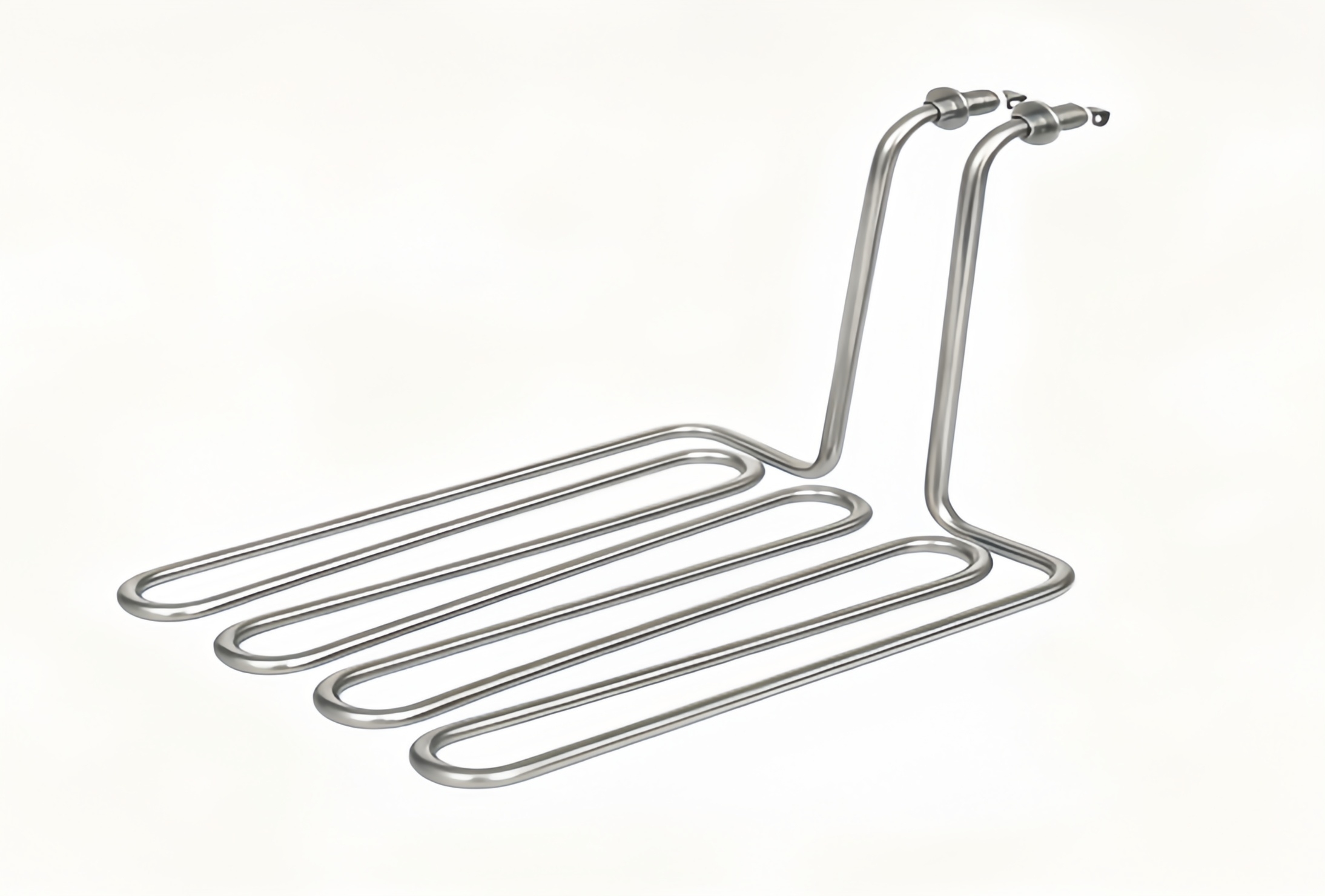

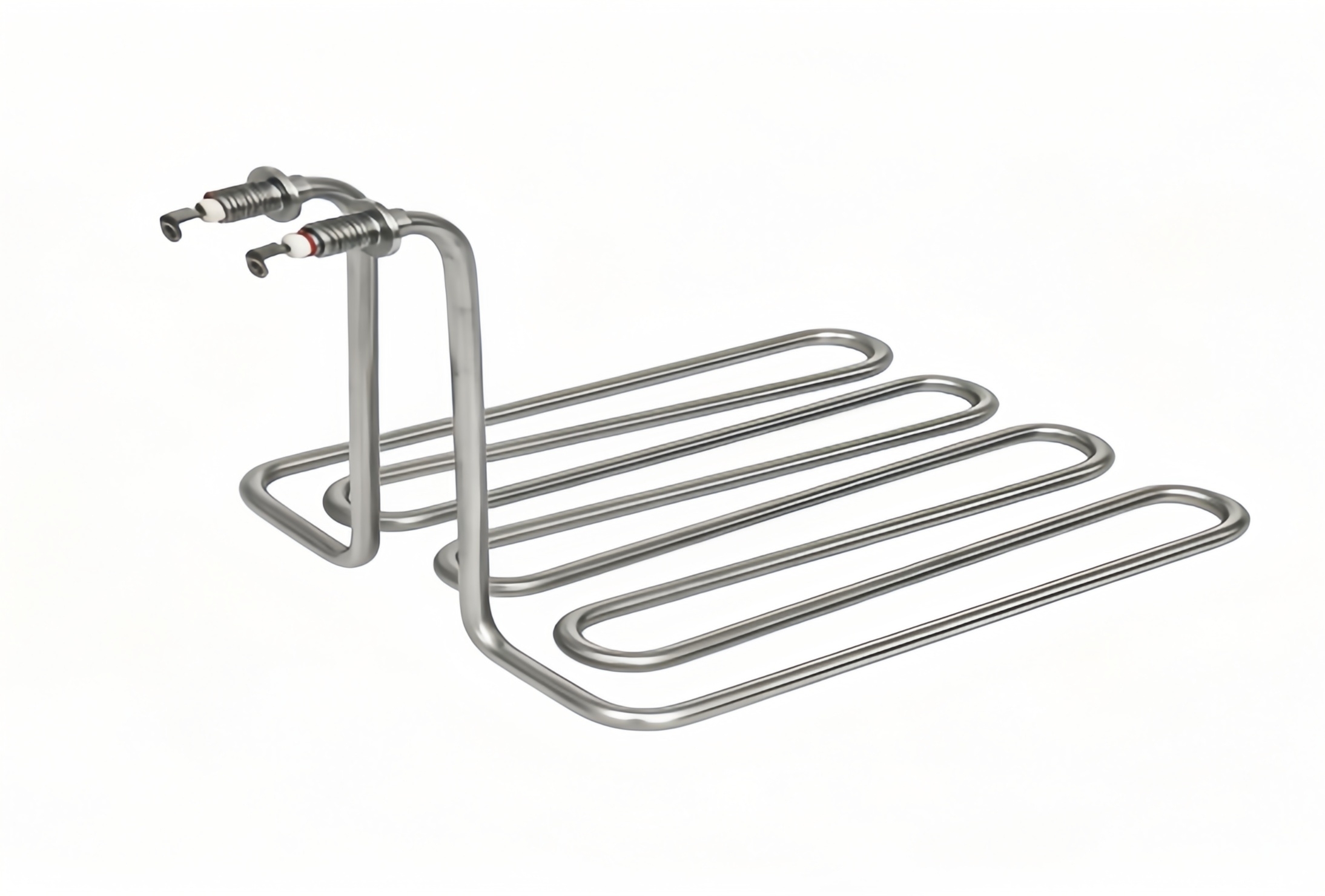

M‑Shape Tubular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This M‑shape multi‑loop tubular heating element is specially made for air dry‑burn heating. Built‑in threaded terminals for easy installation. Custom specifications are acceptable

Material: 304 stainless steel tube, Ni80Cr20 nichrome wire, high purity MgO, high temp silicone seal, nickel-plated brass terminal	Transport Package: Standard Export Carton, Plywood Wooden Case

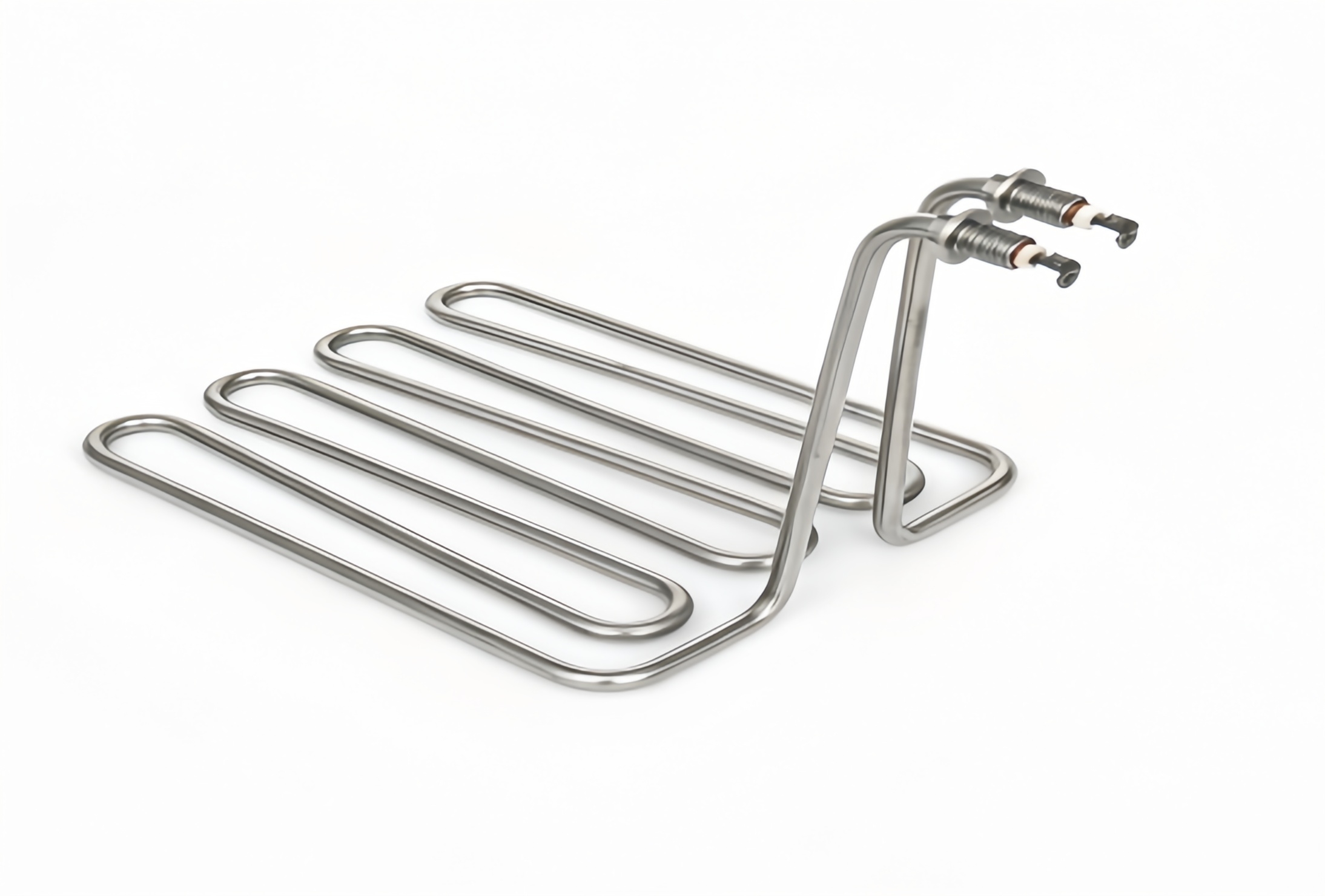

Form: 4 parallel U-loop M-shaped tubular heater with double vertical threaded mounting terminals	Specification: Tube Dia 8/10/12mm, power 800W–4000W, 110/220/230/380V, 4 parallel U-loop M-shape, double threaded terminals, customizable size
Shape: Flat M-shape with four parallel rectangular U loops & two vertical threaded terminals	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 110V/220V/230V single phase, 380V three phase, customizable	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 800W–4000W, customizable single power per unit	MGO: High purity magnesium oxide insulating powder
Tube Diameter: 8mm / 10mm / 12mm, custom size available	Application: Commercial bakery oven, household baking oven, small drying cabinet, food dehydrator

Features

Premium stainless‑steel sheath for long service life
M‑shaped multi‑loop design for uniform heat distribution

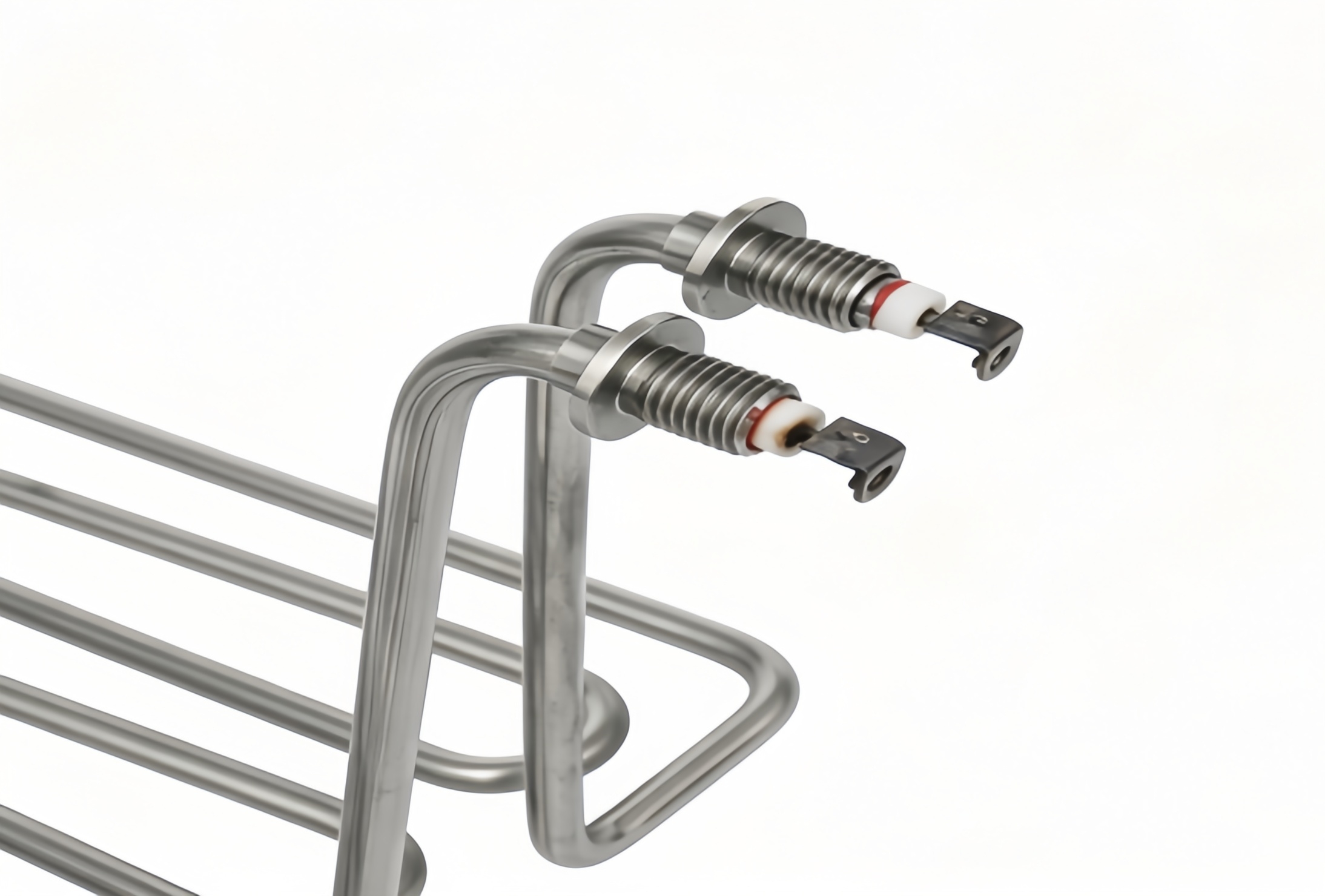

Threaded terminals for quick and firm installation
Excellent performance for air dry‑burn working condition
Fully customizable on voltage, power and outer dimension

Package delivery

Packing

Each heating element is wrapped by bubble film separately, packed in shock‑proof export cartons. Custom‑made packaging is welcomed.

Shipping

Samples delivered by DHL, FedEx, TNT. Bulk orders shipped by sea or air freight. Lead‑time depends on order quantity.
