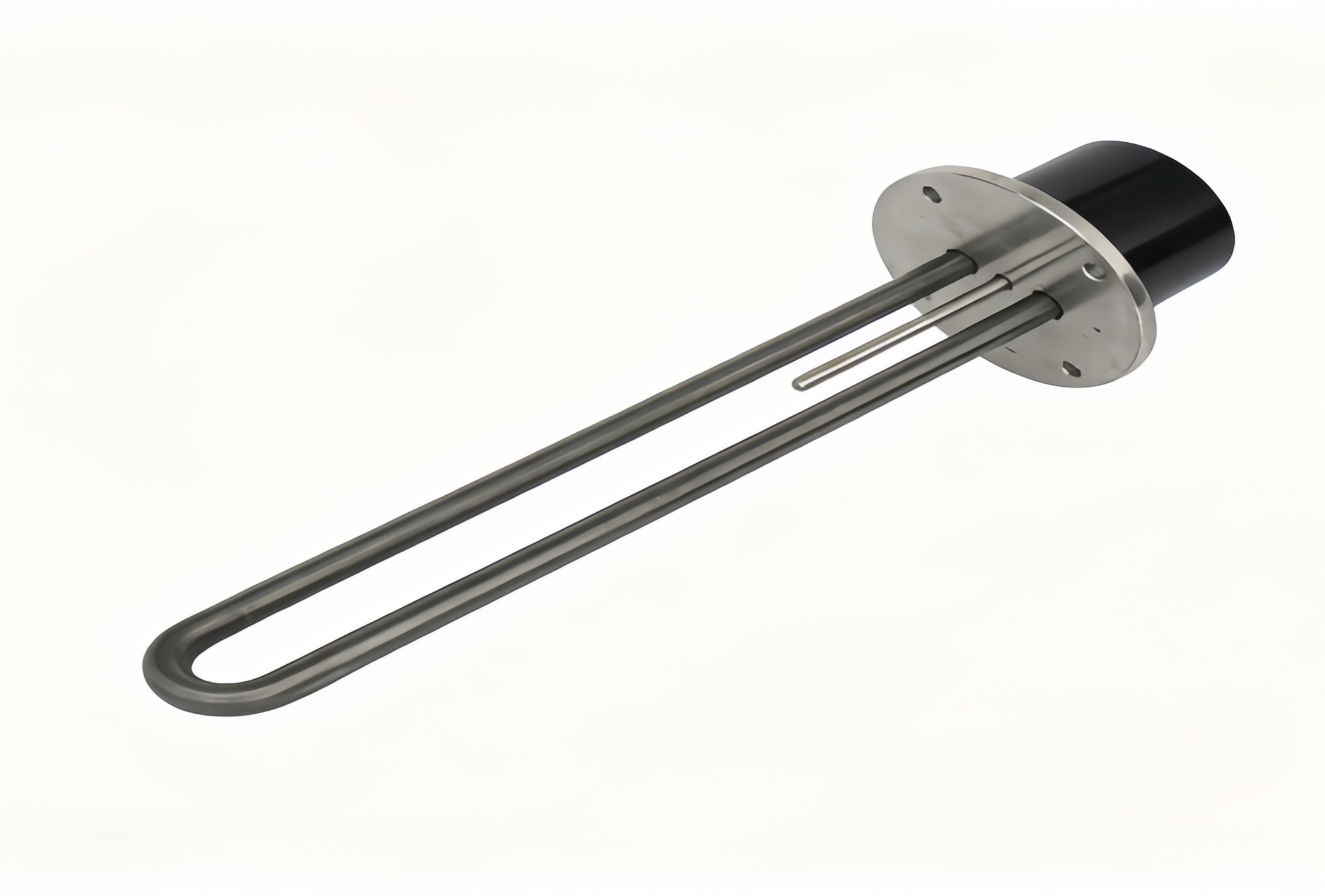

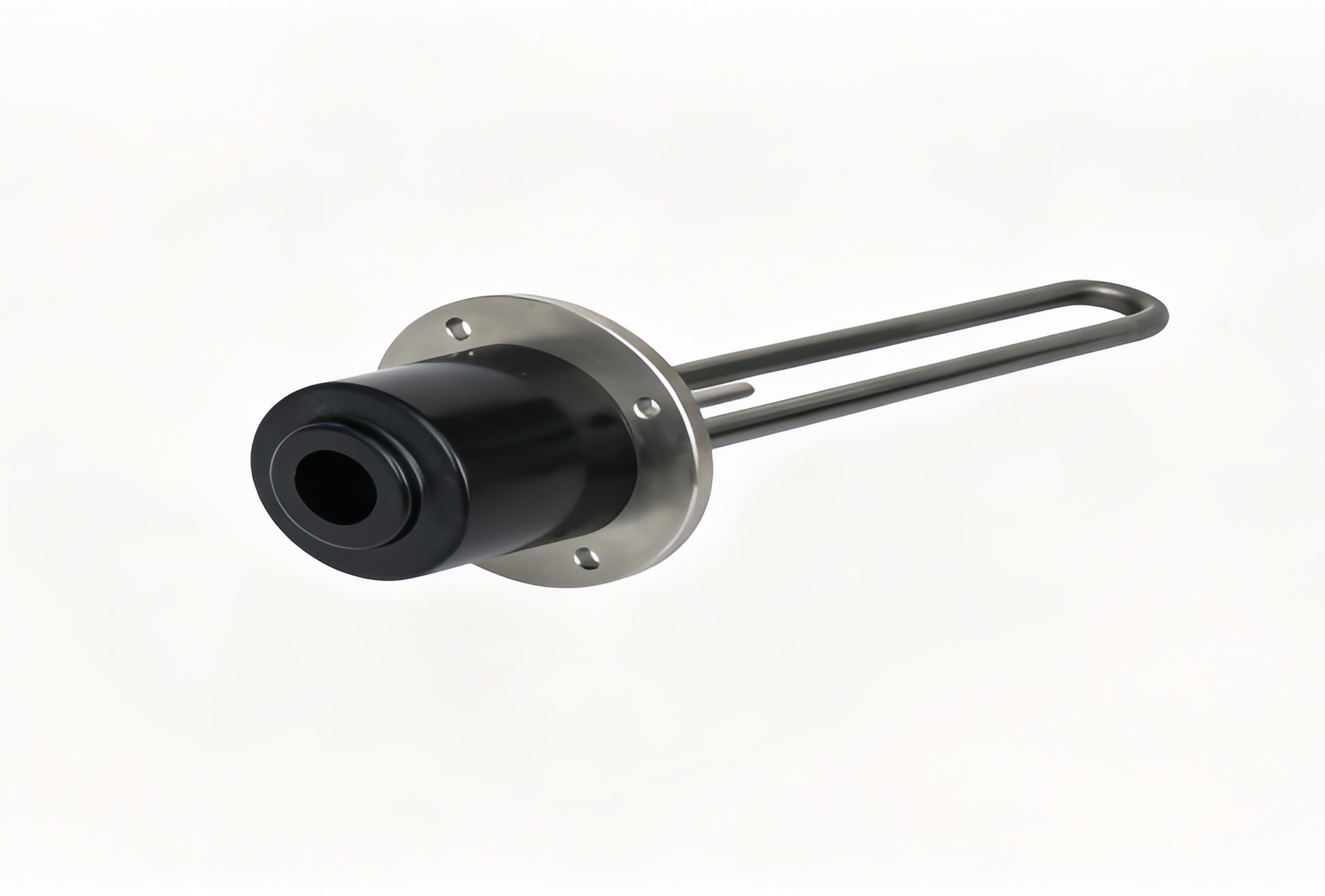

U‑shape Heating Element With Thermowell

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

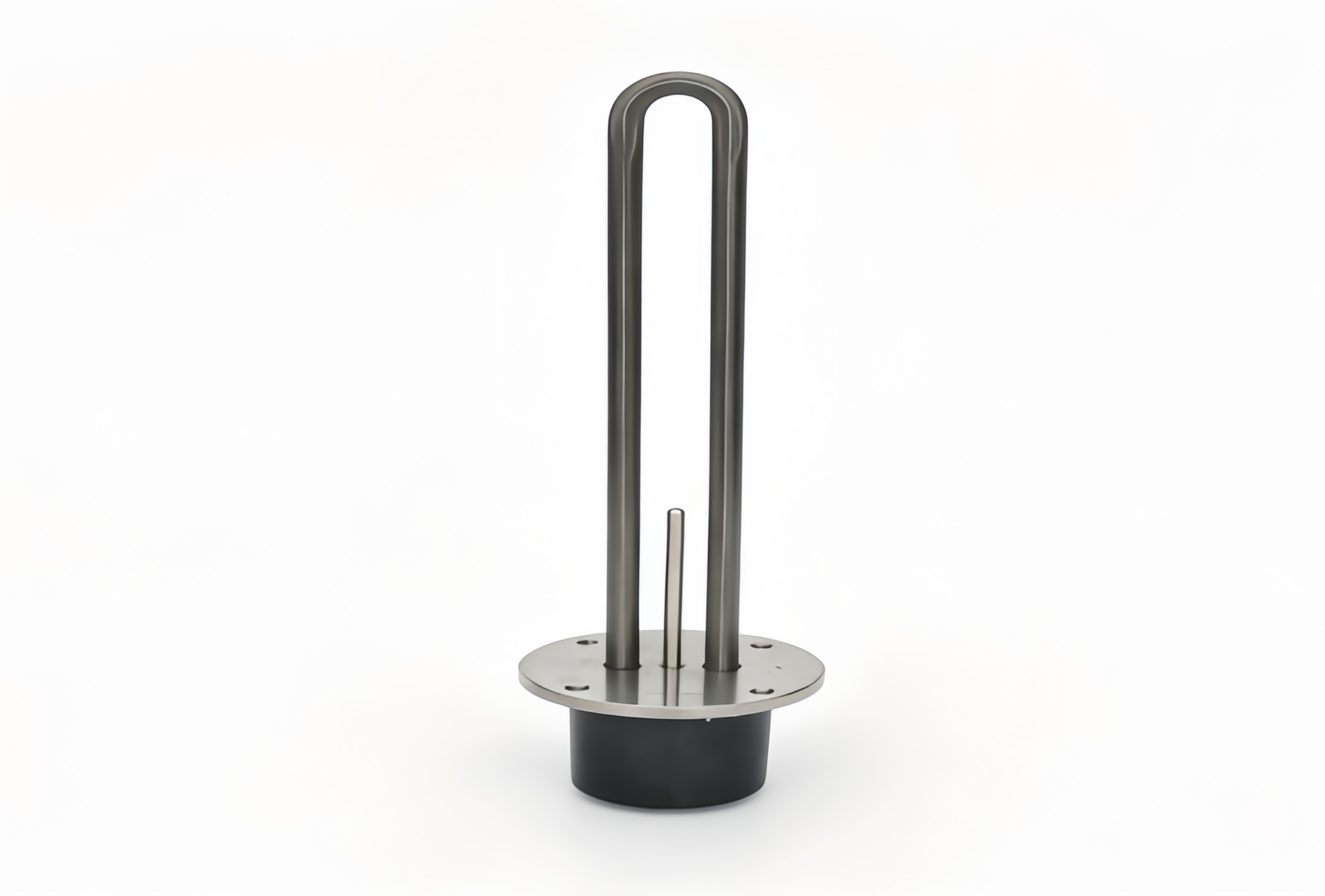

This flange‑mount U‑shape immersion tubular heater is built for industrial liquid tank heating. It adopts bolt‑on flange plate for quick and firm installation, equipped with integrated thermowell to fit temperature sensor. Constructed from stainless steel sheath and filled with high‑purity MGO powder, this heating element provides stable heating output and reliable electrical insulation. Custom voltage, power, tube length and flange dimension are available, OEM and custom drawing orders are welcomed.

Material: 304 / 316L Stainless Steel Tube, Ni-Cr Heating Wire	Transport Package: Carton and Wooden Box
Form: Flange Immersion Tubular Element	Specification: Customized
Shape: Round Tubular	Resistance Wire: Ocr25al5 or Ni80cr20
Voltage: 110-240V or Customize	MGO: High Grade
Watt: Customized	Tube Diameter: 6.6mm,8.0mm,8.5mm,10.0mm or Customize
Product Name: U‑shape Heating Element With Thermowell	Usage: For water tank, boiler, liquid industrial heating equipment

Features

Bolt‑on flange plate design, no welding required for tank installation
Built‑in thermowell, compatible with temperature sensor for real‑time temperature monitoring
U‑shape tubular heating structure, large heating area for uniform liquid heating
Stainless steel tube sheath, good corrosion resistance for water and non‑corrosive liquid
Filled with high‑purity MGO powder, fast thermal conductivity and reliable insulation
Protective terminal housing, safe for wiring and field working environment
Full custom options: voltage, power, immersion depth, tube diameter and flange size
Strict quality inspection before shipment, long service life for industrial heating

Package delivery

Packing

Each flange immersion heater is wrapped with bubble film for surface protection.

Placed into individual inner box, then packed in export carton box with shock‑proof foam filling to prevent collision and damage during transit.

Customized packing requirements are acceptable.

Shipping

Small orders: Express delivery by FedEx, DHL, UPS.

Bulk orders: Sea freight or air freight.

We support international trade terms including FOB, CIF, DAP.
