Home > Products > Immersion Heating Elements > Screw Plug Heater

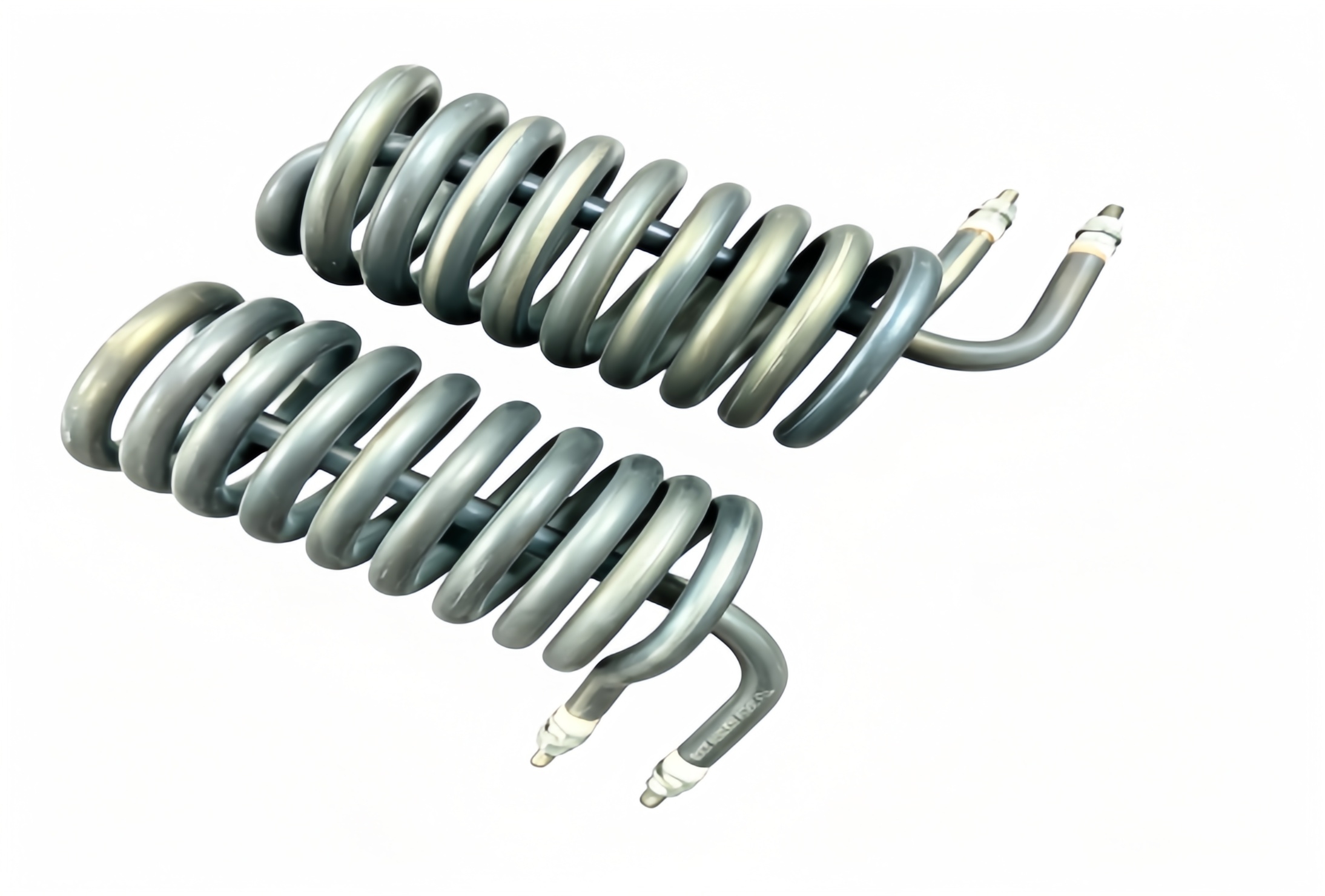

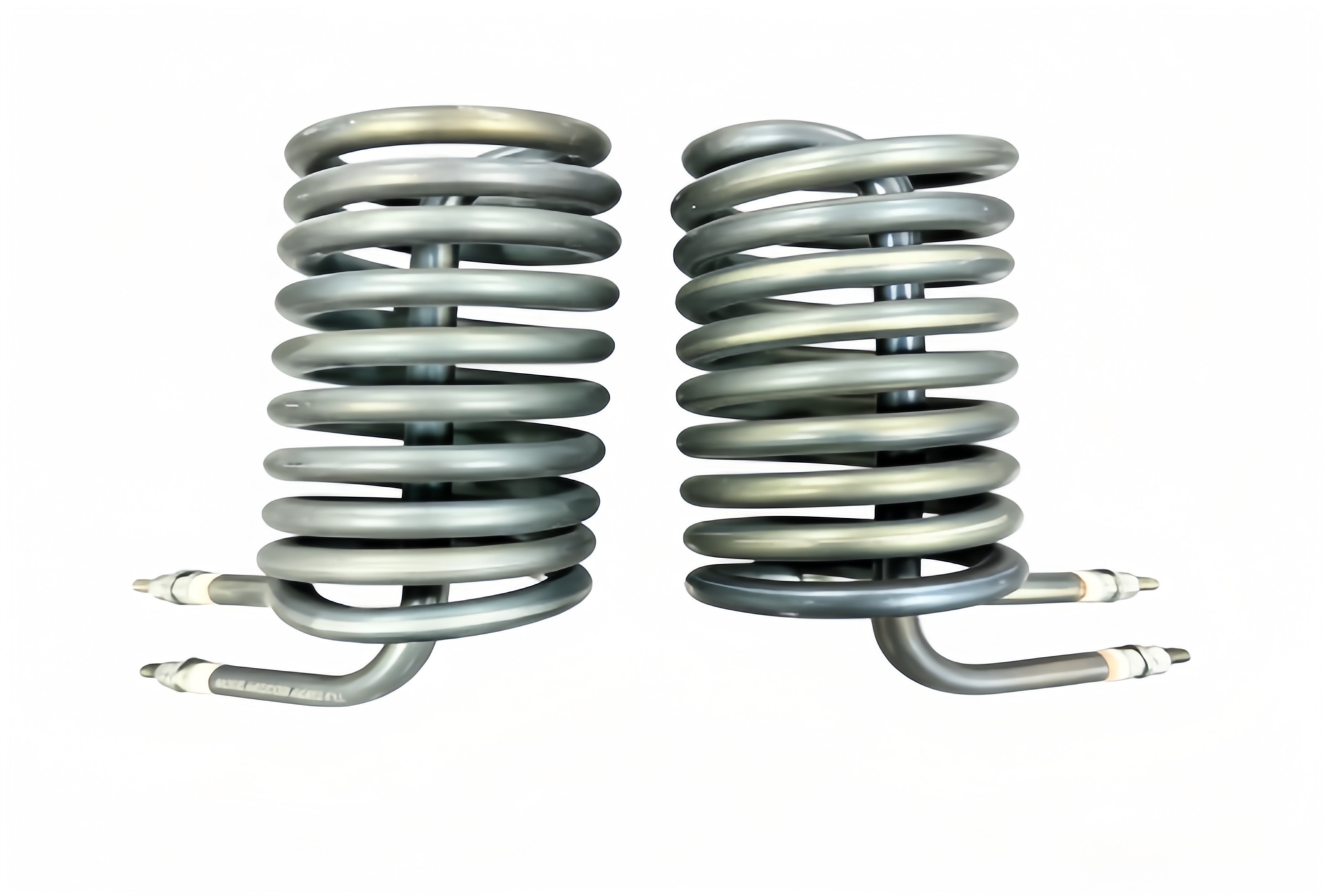

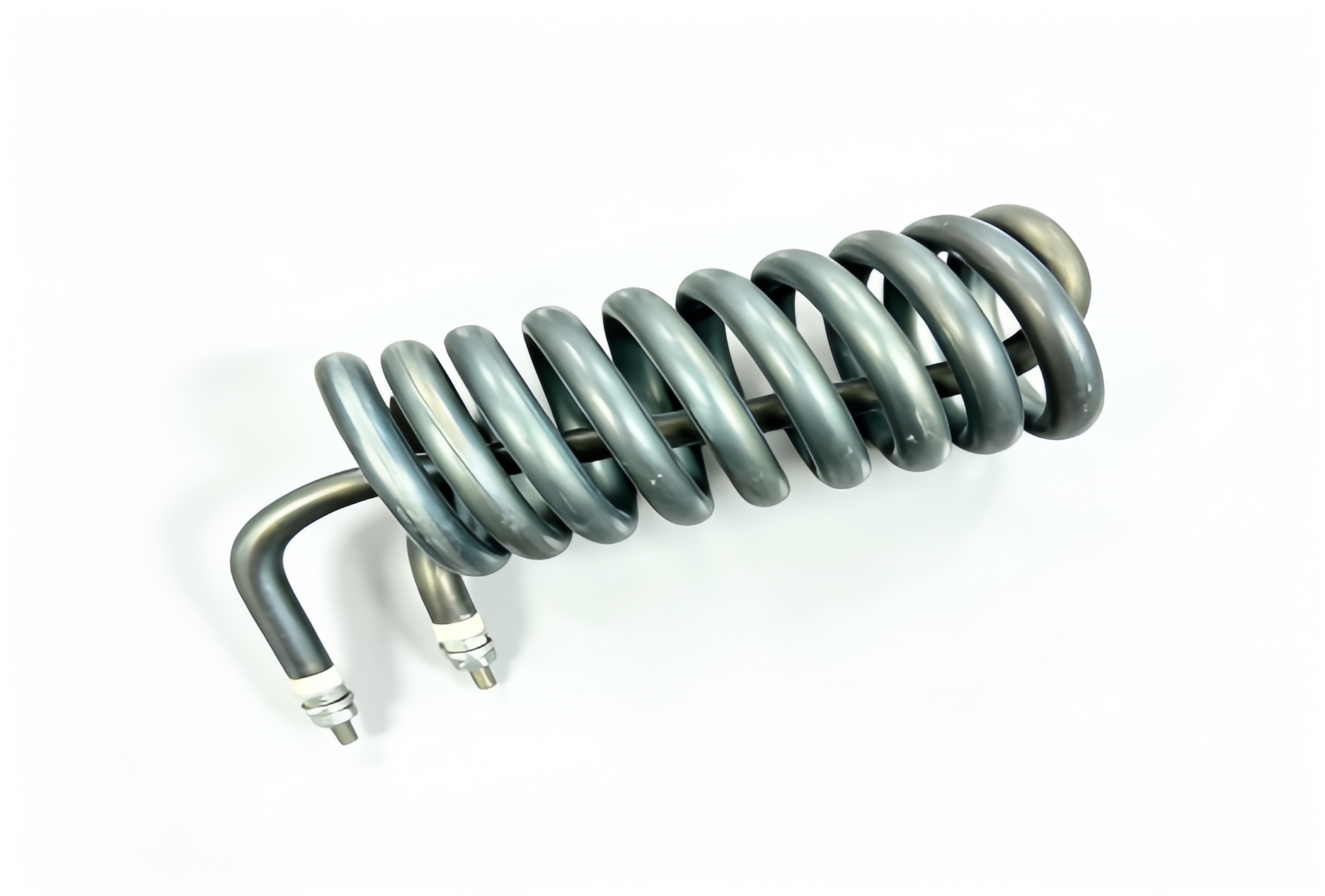

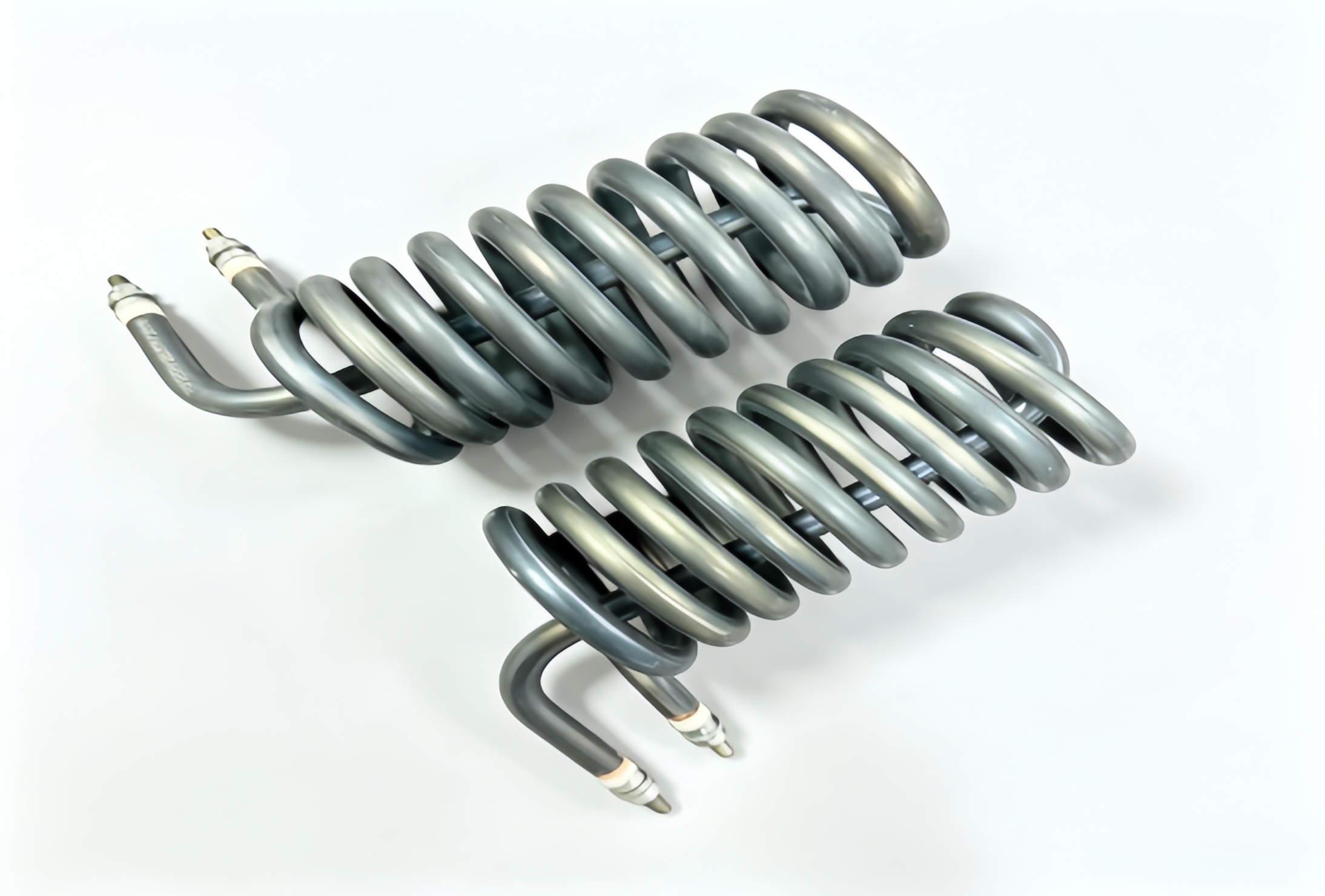

High-Efficient Coil Heater for Tank Liquid Heating with Lu-Chiuan Authorized Certification

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

LQ‑SPC‑10 spiral coated immersion heater made by Lu‑chiuan. Anti‑corrosion coated spiral heating element designed for corrosive liquid. Custom coil size, power and voltage are offered.

Material: Outer Tube: Enamel coated stainless steel Filler: High-purity MgO (Magnesium Oxide) powder Heating Wire: Ni-Cr / FeCrAl alloy resistance wire Terminals: Brass / Stainless steel	Transport Package:Carton Box with Foam Shockproof Protection
Form: Spiral coiled spring tubular shape with bent threaded terminal pins, dry heating tubular element	Specification: AC 220V, 1500/2000/3000W, 8mm/10mm Tube, Spiral Coil, MgO Insulation, Dry Use Only
Shape: Spring spiral coiled tubular shape, bent threaded terminals	MGO: High Purity MgO
Voltage: AC 220V (customizable: 110V, 380V, etc.)	Tube Diameter: 8 mm / 10 mm (customizable upon request)
Watt: 1500W / 2000W / 3000W (customizable wattage available)	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Product Name: High-efficient Coil Heater for Tank Liquid Heating with Lu-Chiuan Authorized Certification	Usage: Dry air heating for ovens & industrial dryers (not for water immersion)

Features

Compact spiral‑coil structure, large heating area within small installation space
Special anti‑corrosion surface coating, adapts to chemical & corrosive liquid
Fully customizable: coil size, power, voltage and tube dimension
High thermal efficiency, stable long‑time working performance
Simple terminal connector, quick and easy installation
Strict quality test, support OEM & ODM service

Package delivery

Each heating element wrapped with bubble foam to avoid scratch, packed in solid export carton.

Small orders delivered by express. Bulk goods shipped by air or sea freight.

Custom packing solution is acceptable for large‑volume orders.

Download

None
