Product Description

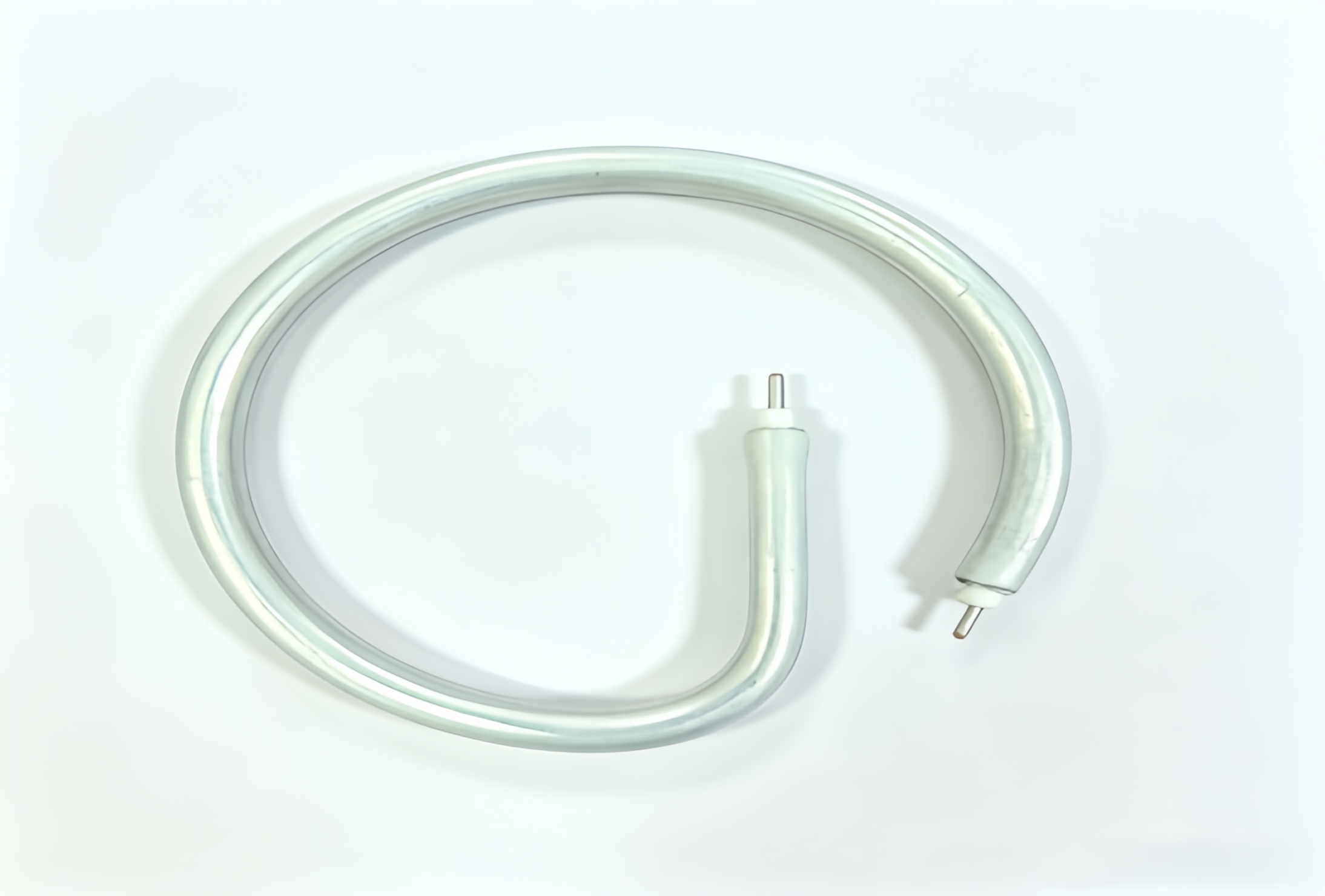

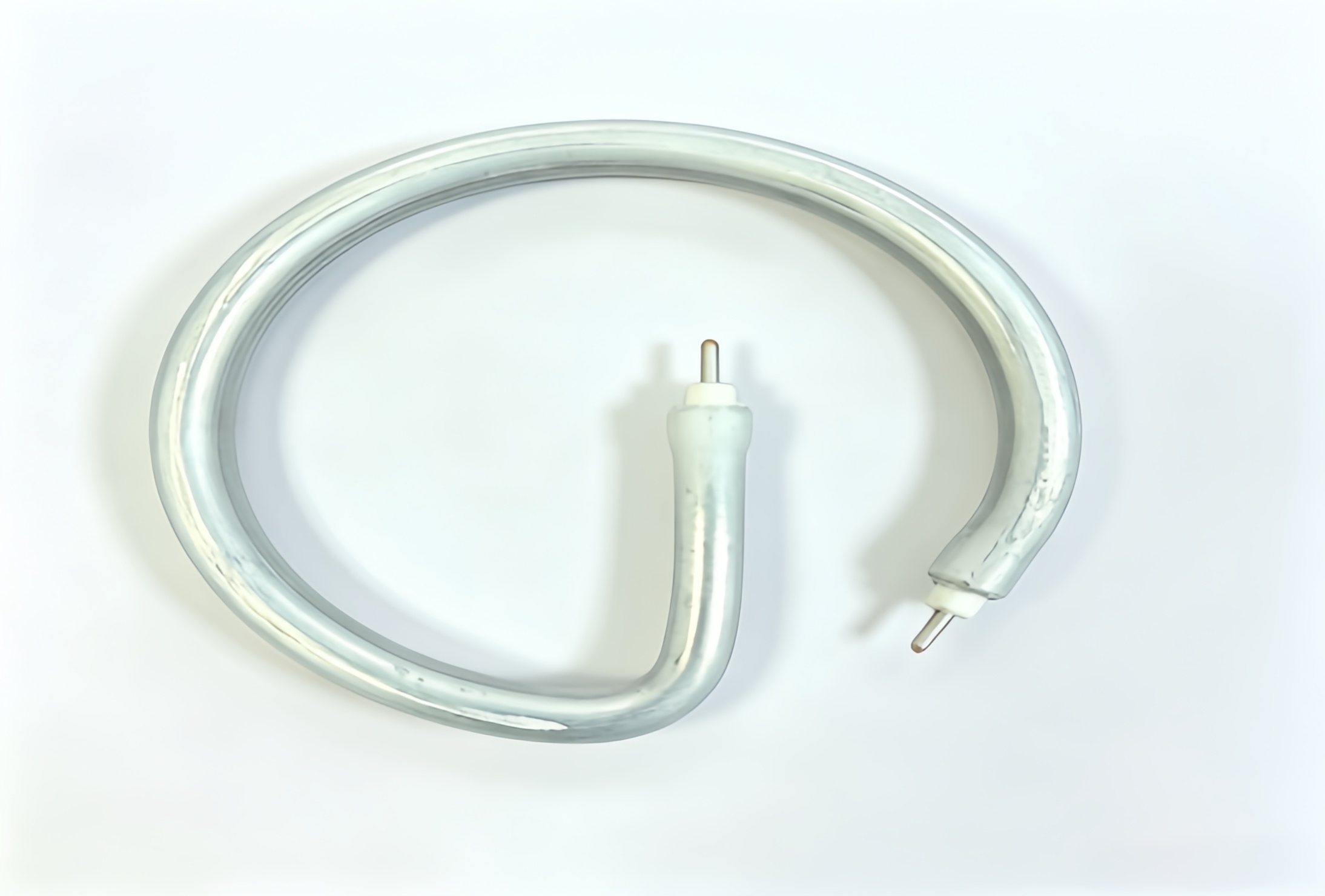

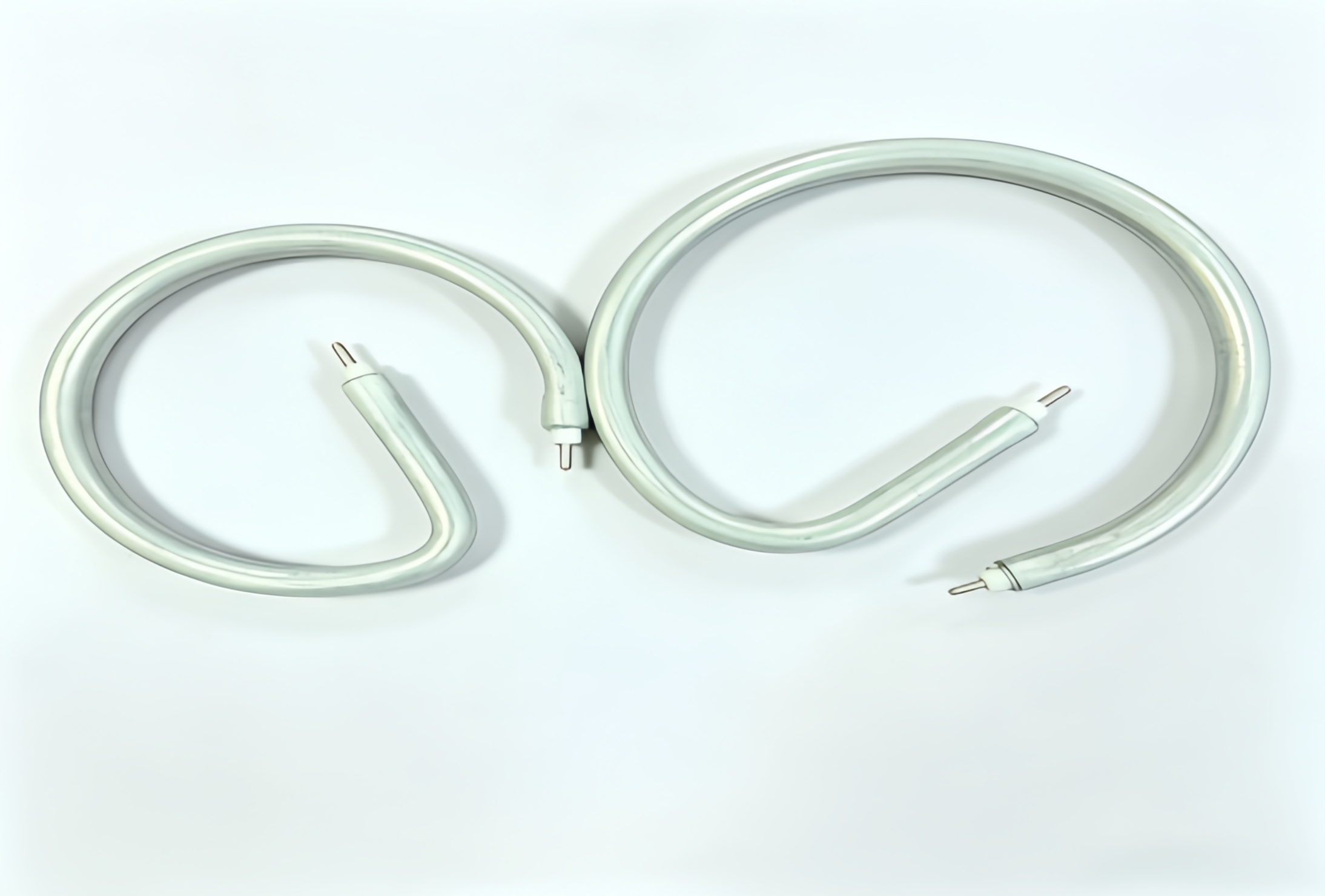

This circular ring‑shaped tubular heater is designed for dry‑burn air heating. Made of high‑grade stainless‑steel tube, nickel‑chromium resistance wire and high‑purity magnesium oxide inside. Compact round structure fits well for ovens and small heating machines. Voltage, power and ring size can be fully customized to meet your requirements.
| Material: Outer tube: Metal galvanized tube / stainless steel tube Heating wire: Nickel-chromium alloy wire Insulation filler: High-purity magnesium oxide (MgO) powder End parts: High-temperature insulating material + metal pin terminals | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Shape: Circular ring tubular form Terminal: Straight pin terminals Type: Dry-use electric tubular heating element | Specification: Circular ring tubular heater, 220V 1500W, 10mm tube diameter, dry use only |
| Shape: Full description: Circular ring tubular shape, single loop ring structure with straight pin terminals | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: Standard: 220V Optional: 110V / 230V / 380V (customizable) | MGO: Full name: High-Purity Magnesium Oxide Powder Function: Electrical insulation & thermal conduction inside the heating tube |
| Power: Standard: 1500W Optional: 1000W / 1200W / 2000W (customizable) | Resistance Wire: Feature: Stable heat generation, high temperature resistance, long service life |
| Tube Diameter: Standard: 10 mm Optional: 8 mm / 12 mm (customizable) | Application: Primary uses: Electric ovens, food dryers, air heating equipment, industrial drying machines, dry heating appliances |
Features
Circular ring‑shaped design, compact and space‑saving for installation
Premium stainless‑steel tube, great high‑temperature oxidation resistance
Nickel‑chromium resistance wire provides even and stable heat output
High‑purity MGO filler ensures good insulation and thermal conductivity
Fully customizable voltage, power, ring size and tube dimension
Package delivery
Each heater wrapped with bubble film, packed into separate carton box. 12 pieces per outer export carton. Safe protection for sea, air or express shipment.
